KCH40G-GFSQT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)E,G,STD ; (9907- )LXH4#,RCH42

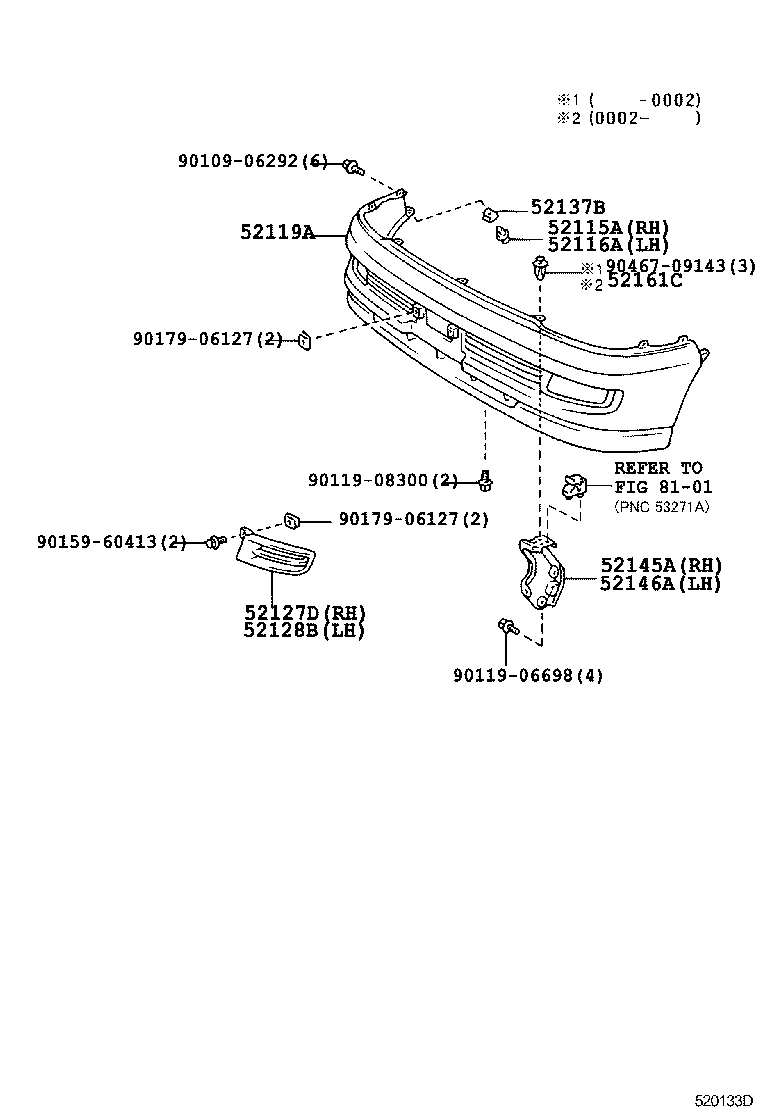

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52127D 52128B 52137B 52145A 52146A 52161C 8101 9010906292 9011906698 9011908300 9015960413 9017906127 9017906127 9046709143
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26040

KCH4#,LXH4#,RCH4#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-26040

KCH4#,LXH4#,RCH4#

 1
52119A - COVER, FRONT BUMPER
52119-26280B1

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BL.GRAY ME,2DK

 1
52119-26270G1

KCH4#,RCH41..G

GRAYISH BREEN M,2DJ

 1
52119-26270B1

KCH4#,RCH41,47..G,STD

BL.GRAY ME,2DK

 1
52119-26280G0

KCH4#,RCH41..G

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAYISH BREEN M,2DJ

 1
52119-26270G0

LXH4#..G;KCH4#,RCH41,47..E,STD

LT GREEN M,6L5

 1
52119-26280G0

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAYISH BREEN M,2DJ ,2EV

 1
52119-26280B2

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME,2EB

 1
52119-26270G1

KCH4#,RCH41,47..G,STD

GRAYISH BREEN M,2DJ ,2EV

 1
52119-26270B2

KCH4#,RCH41,47..G,STD

SILVER ME,2EB

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-26030G0

KCH4#..E;LXH4#..G

LT GREEN M,6L5

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-26030G0

KCH4#..E;LXH4#..G

LT GREEN M,6L5

 1
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020

KCH4#,LXH4#,RCH4#

 2
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-26030

KCH4#,LXH4#,RCH4#..E,G,STD

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-26030

KCH4#,LXH4#,RCH4#..E,G,STD

 1
Common parts
90109-06292
90119-06698
90119-08300
90159-60413
90179-06127
90467-09143
Linked diagrams
8101
