KCH40G-GFSQT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

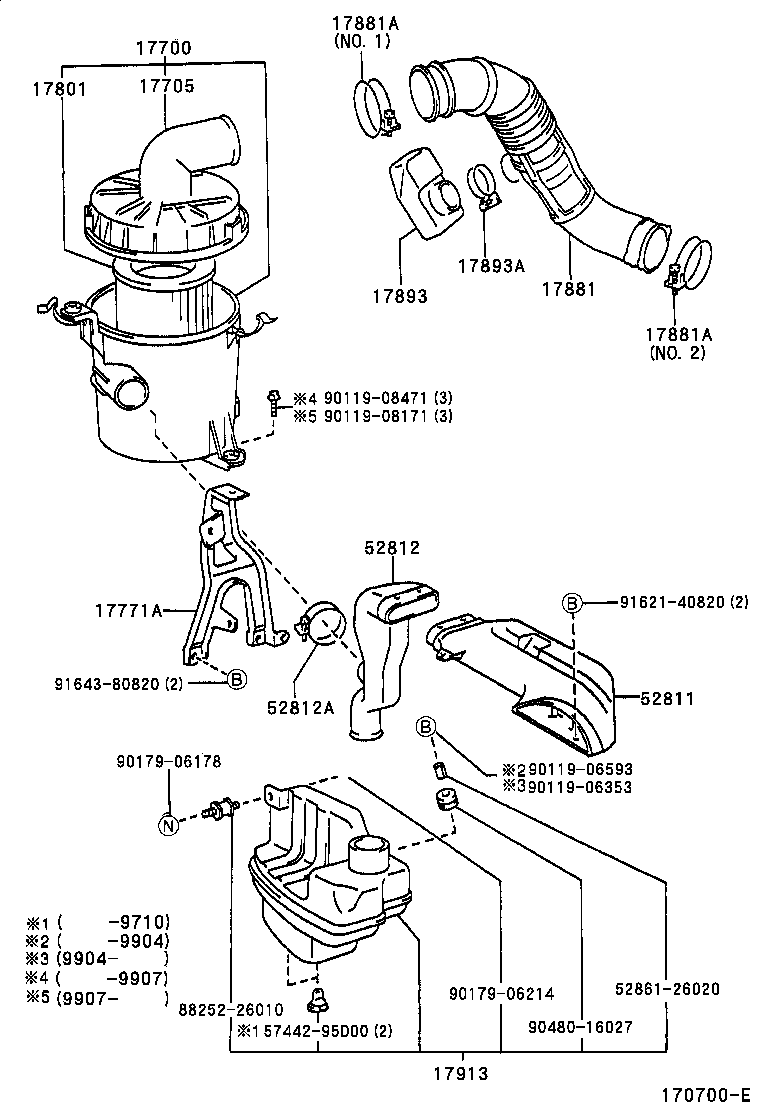

ILLUST NO. 1 OF 2(9704- )1KZTE

Click highlighted areas on diagram

diagram 17700 17705 17771A 17801 17881 17881A 17881A 17893 17893A 17913 52811 52812 52812A 5286126020 5744295D00 8825226010 9011906353 9011906593 9011908171 9011908471 9017906178 9017906214 9048016027 9162140820 9164380820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-67100

1KZTE..KCH4#

 1
17700-67101

1KZTE..KCH4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75070

1KZTE..KCH4#

 1
17771A - BRACKET, AIR CLEANER
17771-75010

1KZTE..KCH4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-67020

1KZTE..KCH4#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-67080

1KZTE..KCH4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1KZTE..KCH4#

NO.1

 1
90467-58002

1KZTE..KCH4#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1KZTE..KCH4#

NO.1

 1
90467-58002

1KZTE..KCH4#

NO.2

 1
17893 - RESONATOR, INTAKE AIR
17893-67010

1KZTE..KCH4#

 1
17893A - CLAMP, HOSE
96111-10560

1KZTE..KCH4#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-26030

1KZTE..KCH4#

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-26040

KCH4#

 1
52812 - DUCT, COOL AIR INTAKE, NO.2
52812-26060

KCH4#

 1
52812A - CLAMP, HOSE(FOR COOL AIR INTAKE)
96111-10830

KCH4#

 1
Common parts
52861-26020
57442-95D00
88252-26010
90119-06353
90119-06593
90119-08171
90119-08471
90179-06178
90179-06214
90480-16027
91621-40820
91643-80820
