AXAP54-ANXGB (2020)
Toyota Rav4 Phv
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

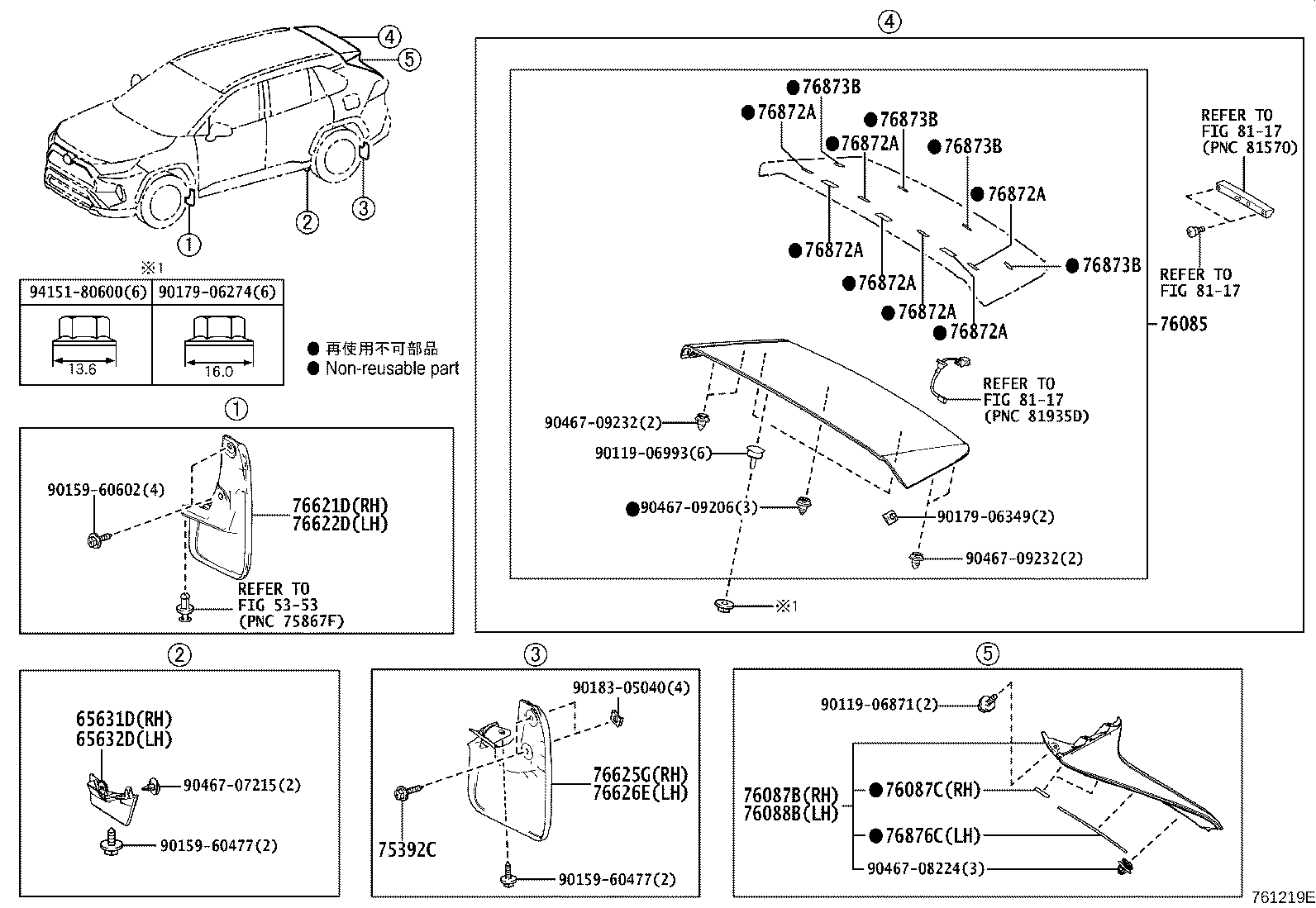

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-42040 |
AXAP54 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-42040 |
AXAP54 |
1 | ||
| 75392C - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
AXAP54 ﾏｯﾄﾞｶﾞｰﾄﾞ−DOP(ﾌﾛﾝﾄ & ﾘﾔ),DOP用 |
4 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-42907B2 |
AXAP54..G GRAY ME.,1G3 |
1 | ||
| 76085-42907C2 |
AXAP54..BLT ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2RA ,2SC |
1 | ||
| 76085-42907B4 |
AXAP54..G SILVER ME.,1D6 |
1 | ||
| 76085-42907A1 |
AXAP54..G WHITE PEARL CS.,070 |
1 | ||
| 76085-42907J5 |
AXAP54..G DK.BLUE MC.,8X8 |
1 | ||
| 76085-42907D5 |
AXAP54..G EMOTIONAL RED 2,3U5 |
1 | ||
| 76085-42907C2 |
AXAP54..G ATTITUDE BLACK MC.,218 |
1 | ||
| 76087B - SPOILER SUB-ASSY, REAR SIDE, RH | ||||
| 76087-42050 |
AXAP54 |
1 | ||
| 76087C - PROTECTOR, REAR SIDE SPOILER | ||||
| 87268-42010 |
AXAP54 |
4 | ||
| 76088B - SPOILER SUB-ASSY, REAR SIDE, LH | ||||
| 76088-42050 |
AXAP54 |
1 | ||
| 76621D - MUDGUARD, FRONT FENDER, RH | ||||
| 76621-42130 |
AXAP54 ﾏｯﾄﾞｶﾞｰﾄﾞ−DOP(ﾌﾛﾝﾄ & ﾘﾔ),DOP用 |
1 | ||
| 76622D - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-42130 |
AXAP54 ﾏｯﾄﾞｶﾞｰﾄﾞ−DOP(ﾌﾛﾝﾄ & ﾘﾔ),DOP用 |
1 | ||
| 76625G - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-42160 |
AXAP54 ﾏｯﾄﾞｶﾞｰﾄﾞ−DOP(ﾌﾛﾝﾄ & ﾘﾔ),DOP用 |
1 | ||
| 76626E - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-42220 |
AXAP54 ﾏｯﾄﾞｶﾞｰﾄﾞ−DOP(ﾌﾛﾝﾄ & ﾘﾔ),DOP用 |
1 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-42060 |
AXAP54 |
7 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-42020 |
AXAP54 |
4 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-42020 |
AXAP54 |
4 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-42020 |
AXAP54 |
4 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-42020 |
AXAP54 |
4 | ||
| 76876C - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-42020 |
AXAP54 |
2 | ||
| Common parts | ||||
| 90119-06871 | ||||
| 90119-06993 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90179-06274 | ||||
| 90179-06349 | ||||
| 90183-05040 | ||||
| 90467-07215 | ||||
| 90467-08224 | ||||
| 90467-09206 | ||||
| 90467-09232 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8117 | ||||
