ZCA26W-AWPGK (2000)

Toyota Rav4 J/L

Production May 2000 - Jul 2003
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005-0307)ACA21,ZCA26

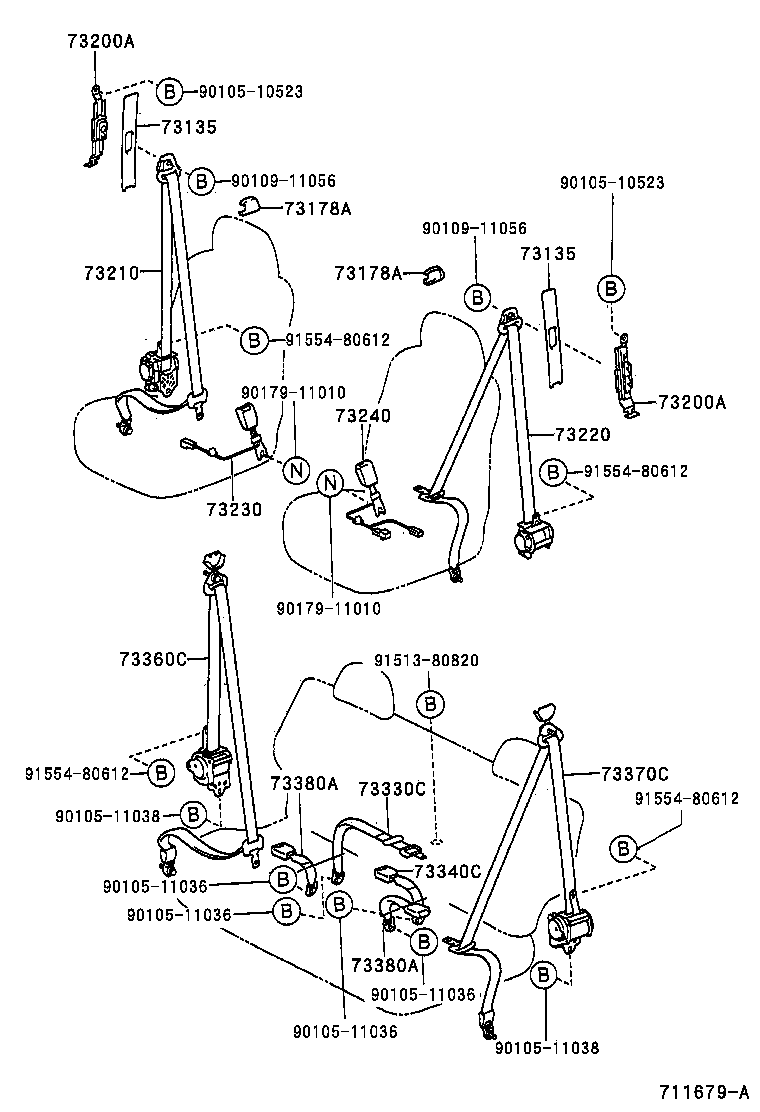

Click highlighted areas on diagram

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 73220 73230 73240 73330C 73340C 73360C 73370C 73380A 73380A 9010510523 9010510523 9010511036 9010511036 9010511036 9010511036 9010511038 9010511038 9010911056 9010911056 9017911010 9017911010 9151380820 9155480612 9155480612 9155480612 9155480612
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-30030B1

ACA21,ZCA26

BLUE GRAY,TRIM1#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-30030B1

ACA21,ZCA26

BLUE GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B0

ACA21,ZCA26

BLUE GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B0

ACA21,ZCA26

BLUE GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52010B3

ACA21,ZCA26

BLUE GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52010B3

ACA21,ZCA26

BLUE GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-42220B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73210-42221B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73210-42280B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-42220B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73220-42221B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73220-42280B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-42070B0

ACA21,ZCA26;ACA20,ZCA25..AERO

BLUE GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-42080B0

ACA21,ZCA26;ACA20,ZCA25..AERO

BLUE GRAY,TRIM1#

 1
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-42040B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-42040B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-42140B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-42140B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-42050B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-42050B0

ACA21,ZCA26

BLUISH GRAY,TRIM1#

 2
Common parts
90105-10523
90105-11036
90105-11038
90109-11056
90179-11010
91513-80820
91554-80612
