ZCA25W-AZPNK (2000)

Toyota Rav4 J/L

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005-0307)

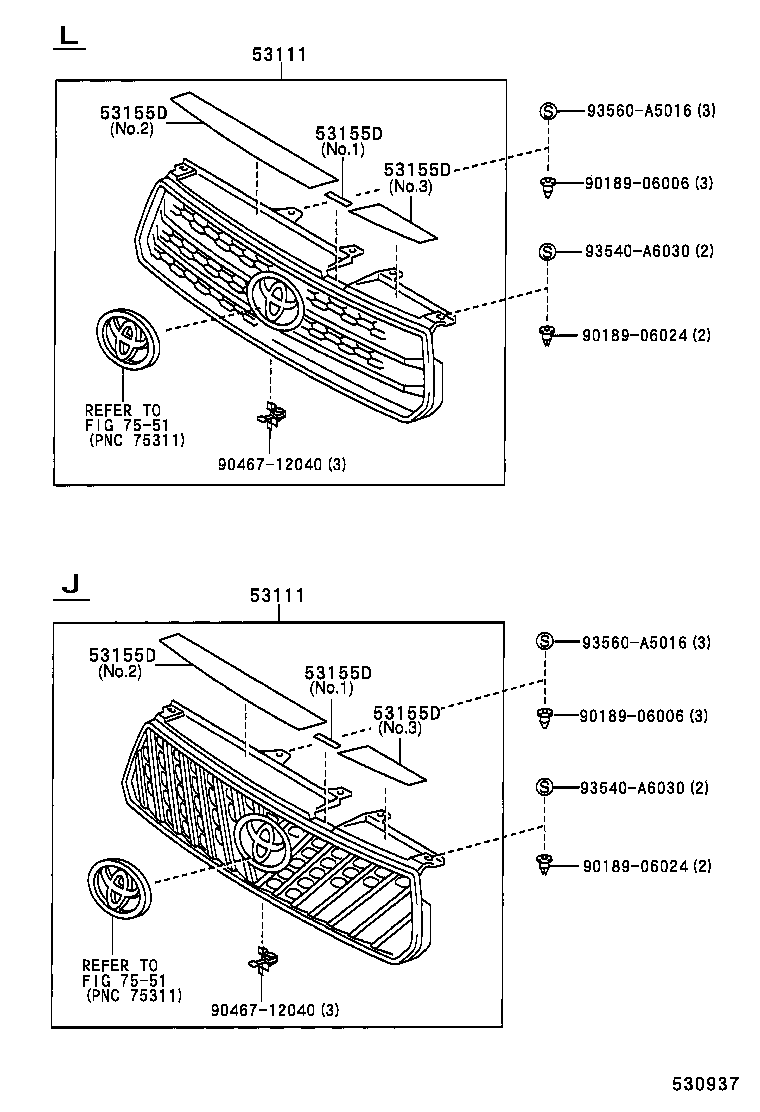

Click highlighted areas on diagram

diagram 53111 53111 53155D 53155D 53155D 53155D 53155D 53155D 7551 7551 9018906006 9018906006 9018906024 9018906024 9046712040 9046712040 93540A6030 93540A6030 93560A5016 93560A5016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-42140

ACA2#,ZCA2#

 1
53101-42120

ZCA2#

RAV4 L

 1
53101-42130

ZCA2#

RAV4 J

 1
53111 - GRILLE, RADIATOR
53101-42140

ACA2#,ZCA2#

 1
53101-42120

ZCA2#

RAV4 L

 1
53101-42130

ZCA2#

RAV4 J

 1
Common parts
90189-06006
90189-06024
90467-12040
93540-A6030
93560-A5016
Linked diagrams
7551

(0307- )

Click highlighted areas on diagram

diagram 53111 5353 7551 9018906006 9018906024 9018906024 9046712040 93540A6030 93540A6030 93560A5016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-42140

ACA2#,ZCA2#

 1
53101-42120

ZCA2#

RAV4 L

 1
53101-42130

ZCA2#

RAV4 J

 1
Common parts
90189-06006
90189-06024
90467-12040
93540-A6030
93560-A5016
Linked diagrams
5353
7551
