ACA38W-BNXGK (2008)

Toyota Rav4/Vanguard

Production Aug 2008 - Feb 2010
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )G,S,STYLE

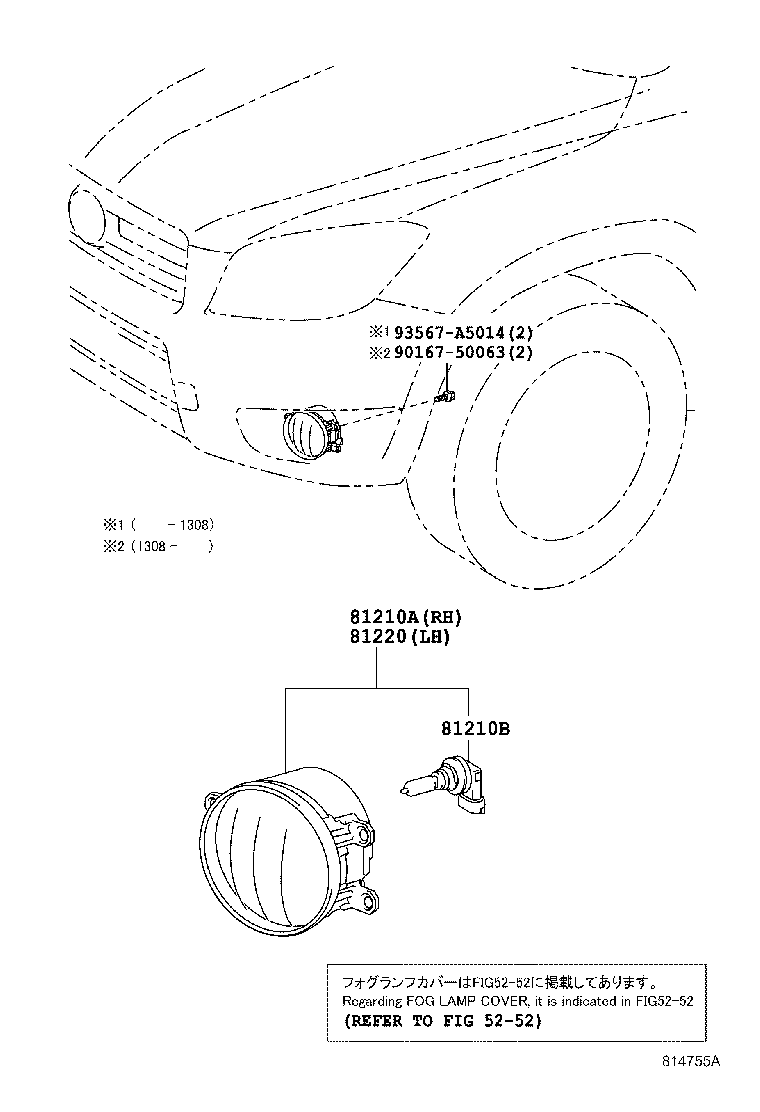

Click highlighted areas on diagram

diagram 81210A 81210B 81220 9016750063 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D040

ACA3#..G,S

 1
81210B - BULB, FOG LAMP
90981-13081

ACA3#,GSA33..240S,350S,G,S

12V 55W,ﾊﾛｹﾞﾝ,OSRAM

 2
90981-13075

ACA3#,GSA33..240S,350S,G,S

12V 55W,ﾊﾛｹﾞﾝ,PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81220-0D040

ACA3#..G,S

 1
Common parts
90167-50063
93567-A5014
