ACA38W-BNXGK (2008)
Toyota Rav4/Vanguard

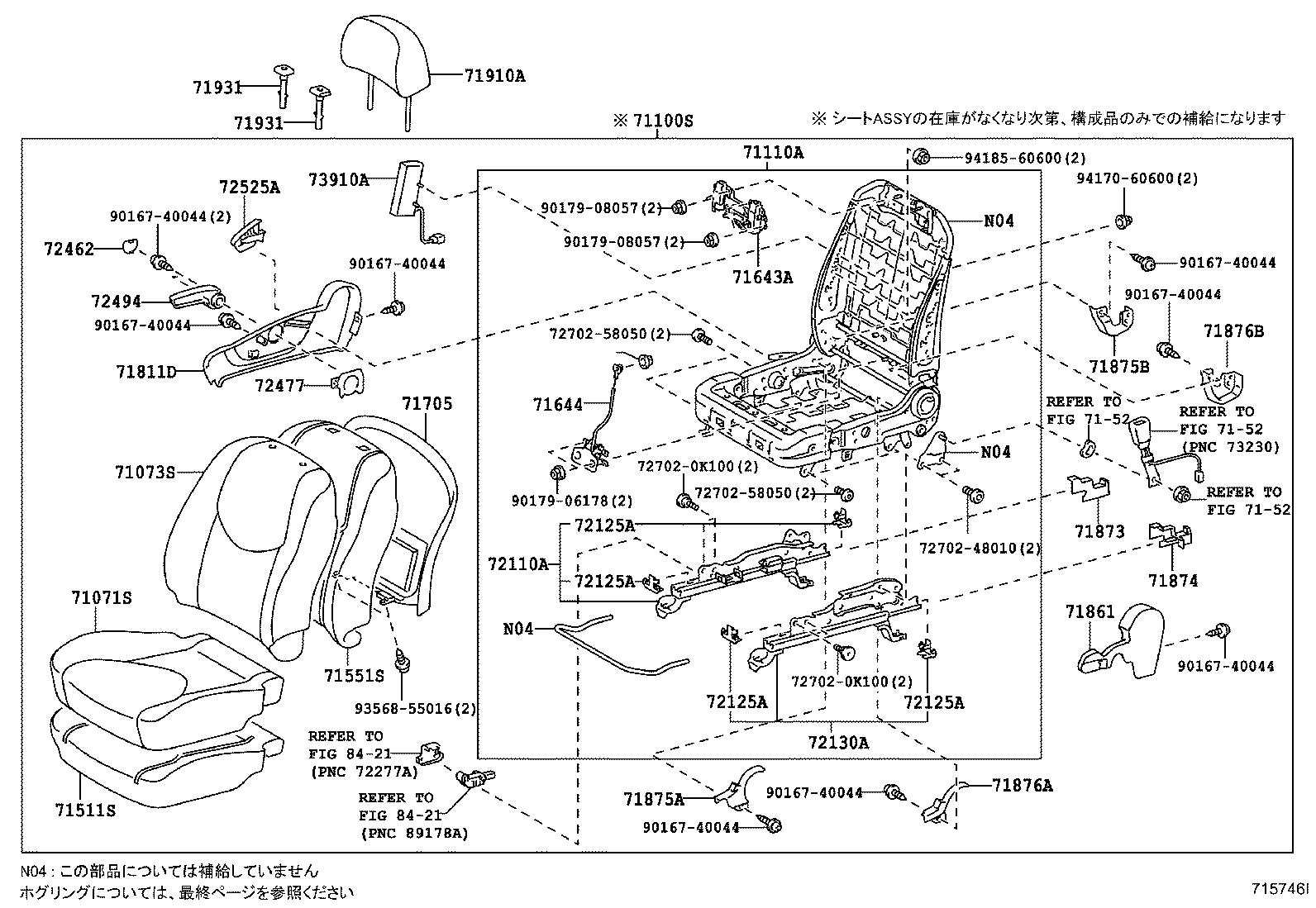

ILLUST NO. 1 OF 8(0808- )ACA33,38,GSA33
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ & SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42480B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42480E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71071-42520B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42490B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42620B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71073-42620E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42740C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71073-42740E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-42G80B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-42N70E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71100-42N70B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-42N90E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71100-42N70E1 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71100-42N70B1 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-42N90B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42120 |
ACA33,38,GSA33 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71551-42180 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71551-42170 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71551-42190 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42100 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71861-42070E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71867-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA33,38,GSA33 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA33,38,GSA33 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42030 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73910-42031 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73910-42031 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

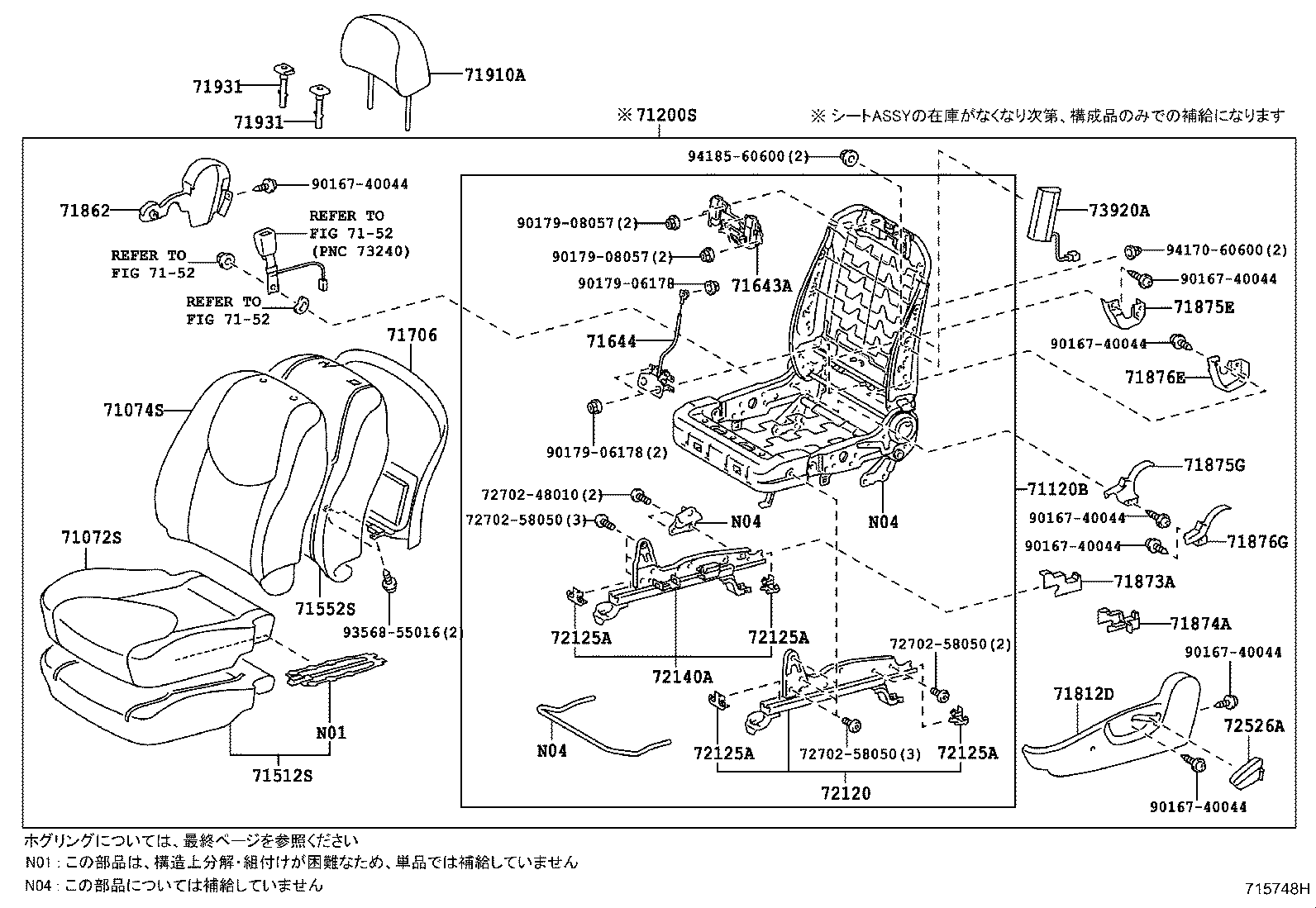

ILLUST NO. 2 OF 8(0808- )ACA33,38,GSA33
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ&SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42250B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71072-42250E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71072-42320B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-42150B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42730C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71074-42240E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42730E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42240B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-42F70B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-42M60B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-42M60E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71200-42M80E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71200-42M80B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42050 |
ACA33,38,GSA33 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71552-42030 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42060B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862-42060B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71862-42060E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71868-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71868-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71868-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42031 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73920-42031 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73920-42030 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

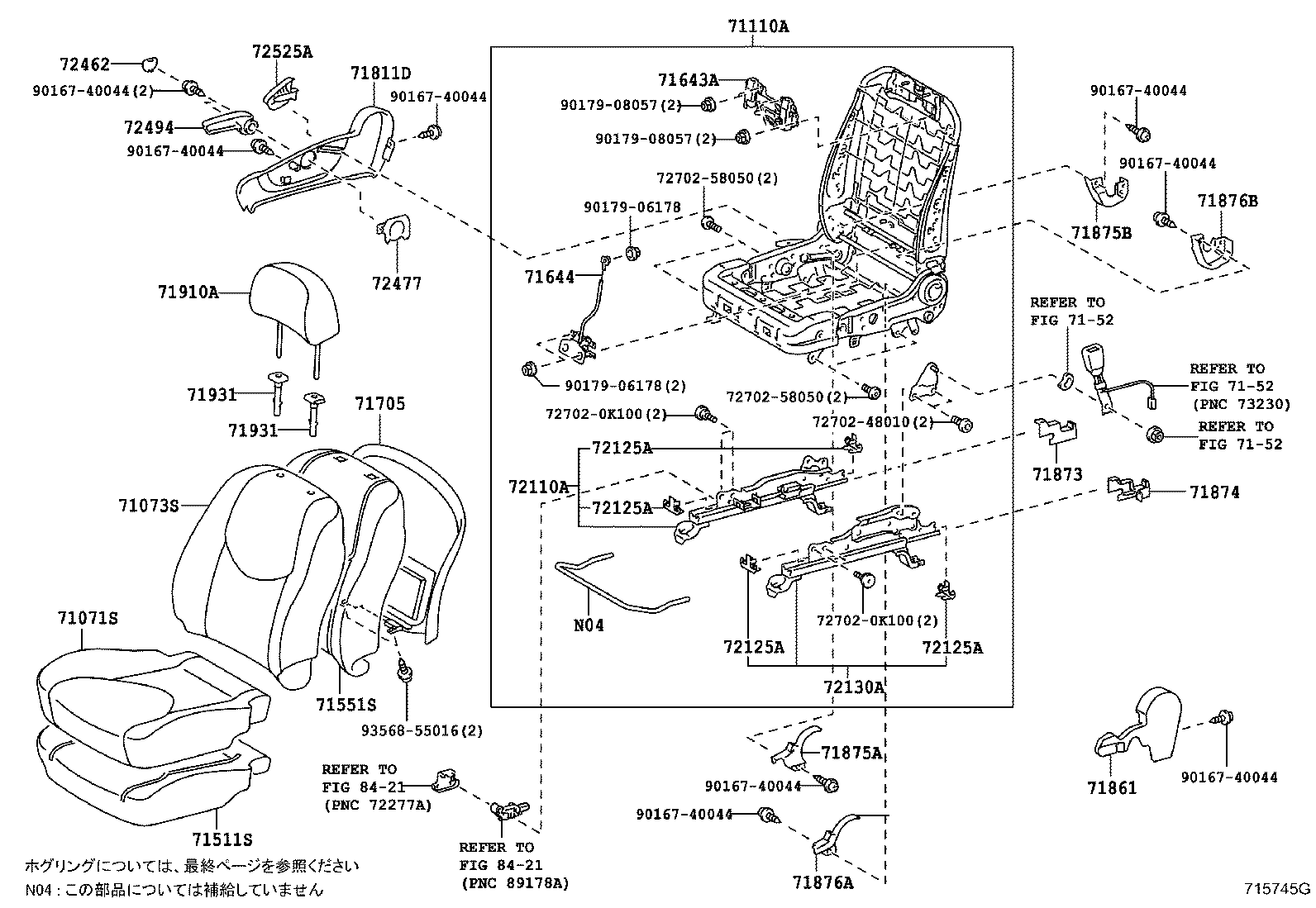

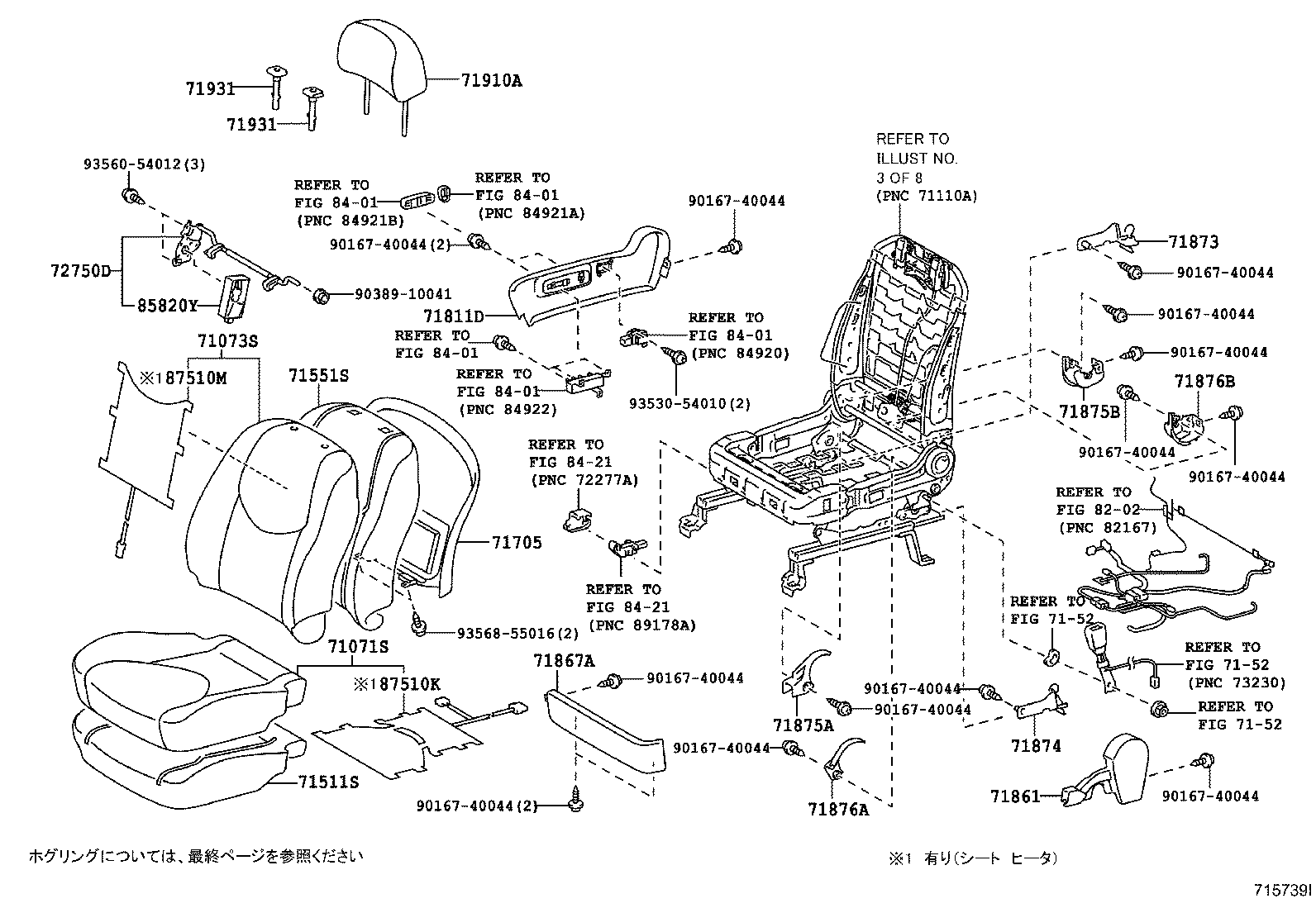

ILLUST NO. 1 OF 8(0808- )ACA33,38,GSA33
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42480B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42480E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71071-42520B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42490B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42620B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71073-42620E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42740C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71073-42740E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42120 |
ACA33,38,GSA33 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71551-42180 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71551-42170 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71551-42190 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42100 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71861-42070E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71867-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA33,38,GSA33 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA33,38,GSA33 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

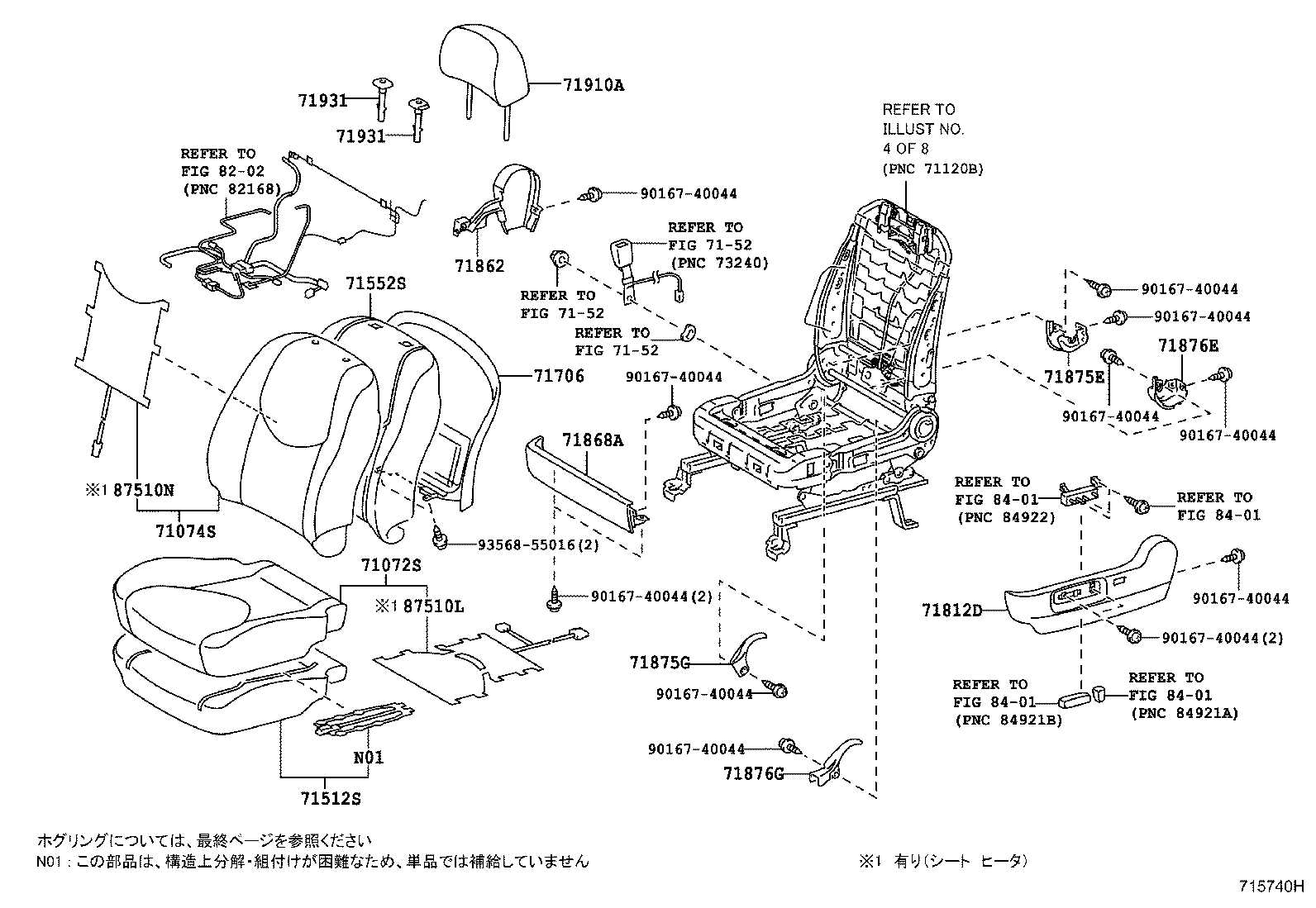

ILLUST NO. 2 OF 8(0808- )ACA33,38,GSA33
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42250B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71072-42250E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71072-42320B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-42150B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42730C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71074-42240E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42730E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42240B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42050 |
ACA33,38,GSA33 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71552-42030 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42060B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862-42060B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71862-42060E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71868-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71868-60020B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71868-60020E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

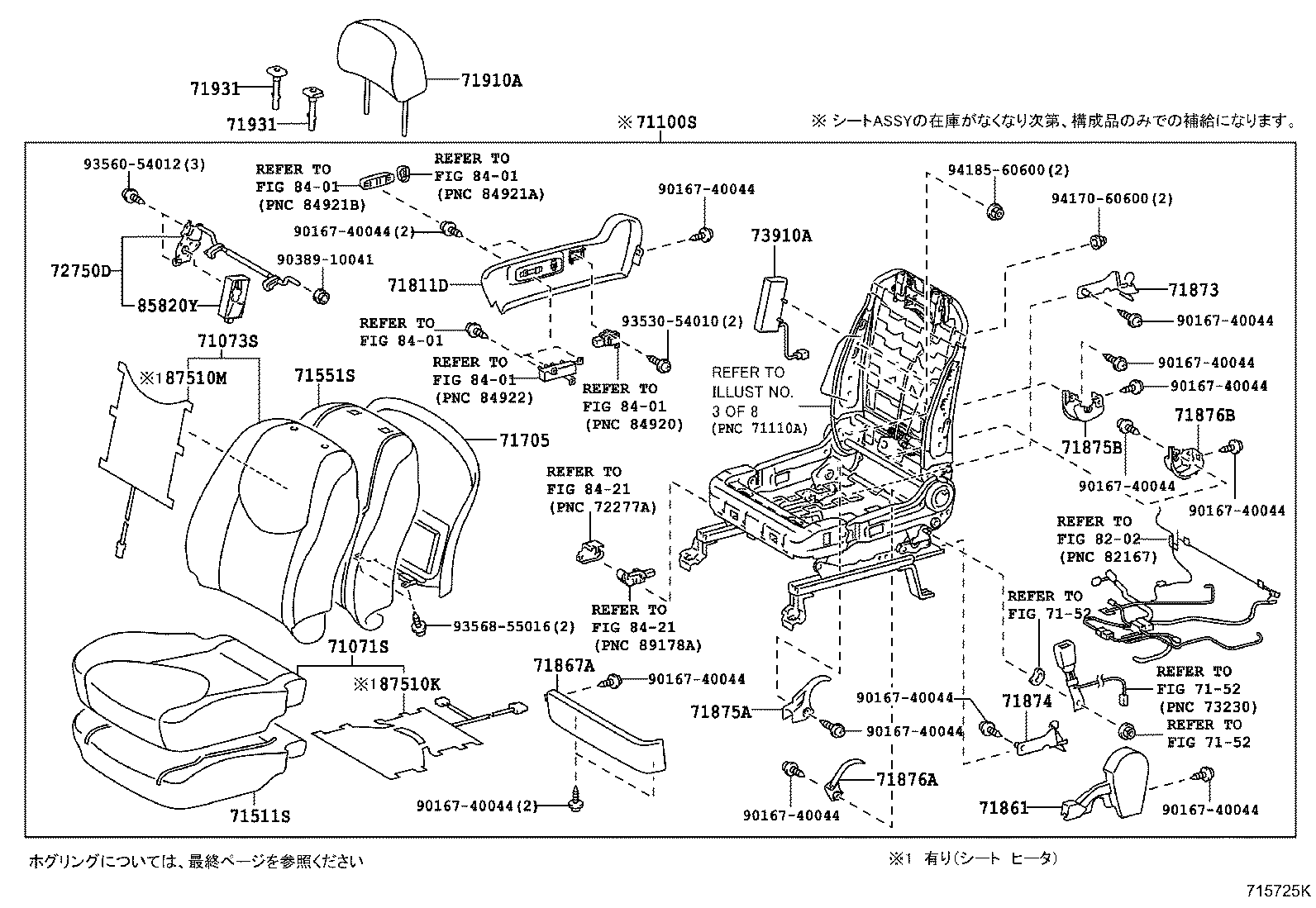

ILLUST NO. 1 OF 8(0808- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42480B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42480E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71071-42520B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42490B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42620B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71073-42620E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42740C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71073-42740E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42090 |
ACA3#,GSA33 |
1 | ||
| 71110-42100 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-42280 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-42370 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71110-42320 |
ACA33,38,GSA33 |
1 | ||
| 71110-42360 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42120 |
ACA33,38,GSA33 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71551-42180 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71551-42170 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71551-42190 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42100 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA33,38,GSA33 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA33,38,GSA33 |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71861-42070E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA33,38,GSA33 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA33,38,GSA33 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-42050 |
ACA33,38,GSA33 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-42050 |
ACA33,38,GSA33 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72462-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ACA33,38,GSA33 BLACK |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 72494-42010B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72525-42020B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72525-42020E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 8(0808- )
ｳﾝﾃﾝｾｷ-ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42480B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71071-42541E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71071-42480E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71071-42541C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71071-42520B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42490B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42620B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71073-42620E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42740C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71073-42740E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-42G80B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-42N70E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71100-42N70B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-42N90E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71100-42N70E1 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71100-42N70B1 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-42N90B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42090 |
ACA3#,GSA33 |
1 | ||
| 71110-42100 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-42280 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-42370 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71110-42320 |
ACA33,38,GSA33 |
1 | ||
| 71110-42360 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42120 |
ACA33,38,GSA33 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71551-42180 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71551-42170 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71551-42190 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42100 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA33,38,GSA33 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA33,38,GSA33 |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71811-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71811-42100E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71861-42070E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71861-60110E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA33,38,GSA33 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA33,38,GSA33 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-42050 |
ACA33,38,GSA33 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-42050 |
ACA33,38,GSA33 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72462-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ACA33,38,GSA33 BLACK |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 72494-42010B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72525-42020B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72525-42020E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42030 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73910-42031 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73910-42031 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 8(0808- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42250B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71072-42250E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71072-42320B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-42150B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42730C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71074-42240E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42730E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42240B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42040 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71120-42240 |
ACA33,38,GSA33 |
1 | ||
| 71120-42370 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71120-42030 |
ACA3#,GSA33 |
1 | ||
| 71120-42360 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71120-42250 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42050 |
ACA33,38,GSA33 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71552-42030 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA33,38,GSA33 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA33,38,GSA33 |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42060B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862-42060B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71862-42060E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-42030 |
ACA33,38,GSA33 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA33,38,GSA33 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-42020 |
ACA33,38,GSA33 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-42020 |
ACA33,38,GSA33 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72526-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 8(0808- )
ｼﾞｮｼｭｾｷ-ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42250B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71072-42250E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71072-42320B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71072-42361C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71072-42361E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-42150B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-42480B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42730C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1# |
1 | ||
| 71074-42240E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610E0 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71073-42610B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71074-42310E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71073-42730E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71074-42310C0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,TRIM1# |
1 | ||
| 71074-42240B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42040 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71120-42240 |
ACA33,38,GSA33 |
1 | ||
| 71120-42370 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71120-42030 |
ACA3#,GSA33 |
1 | ||
| 71120-42360 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71120-42250 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-42F70B0 |
ACA3#..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-42M60B0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-42M60E0 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71200-42M80E1 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71200-42M80B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42050 |
ACA33,38,GSA33 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42080 |
ACA3#,GSA33 |
1 | ||
| 71552-42030 |
ACA3#,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-42070 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-42160 |
ACA33,38,GSA33 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA33,38,GSA33 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA33,38,GSA33 |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B4 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71771-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71771-42010B2 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71812-28360B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E3 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71812-28360E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42060B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71862-42060B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71862-42060E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71862-60100E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-42030 |
ACA33,38,GSA33 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA33,38,GSA33 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA33,38,GSA33 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71875-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71875-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA33,38,GSA33 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42050B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-42050E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170E3 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42120E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 71910-42110B0 |
ACA3#..X DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42171B2 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
1 | ||
| 71910-42180B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA33,38,GSA33 DK.GRAY,TRIM1# |
1 | ||
| 71910-42181B2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42181E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
2 | ||
| 71910-42171E1 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
2 | ||
| 71910-42180E2 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SAND BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA3#..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E3 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ無し),SAND BEIGE,TRIM4# |
2 | ||
| 71930-52030E4 |
ACA33,38,GSA33 ﾛｯｸ付(ﾎﾞﾀﾝ有り),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B4 |
ACA38 ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-42020 |
ACA33,38,GSA33 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38,GSA33 |
8 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-42020 |
ACA33,38,GSA33 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
ACA3#..X DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
ACA38 DK.GRAY,TRIM1# |
1 | ||
| 72526-42010E2 |
ACA33,38,GSA33 SAND BEIGE,TRIM4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42031 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73920-42031 |
ACA33,38,GSA33 Gﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−本革+ｱﾙｶﾝﾀｰﾗ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 73920-42030 |
ACA33,38,GSA33 SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
