ACA38W-BNXGK (2008)
Toyota Rav4/Vanguard

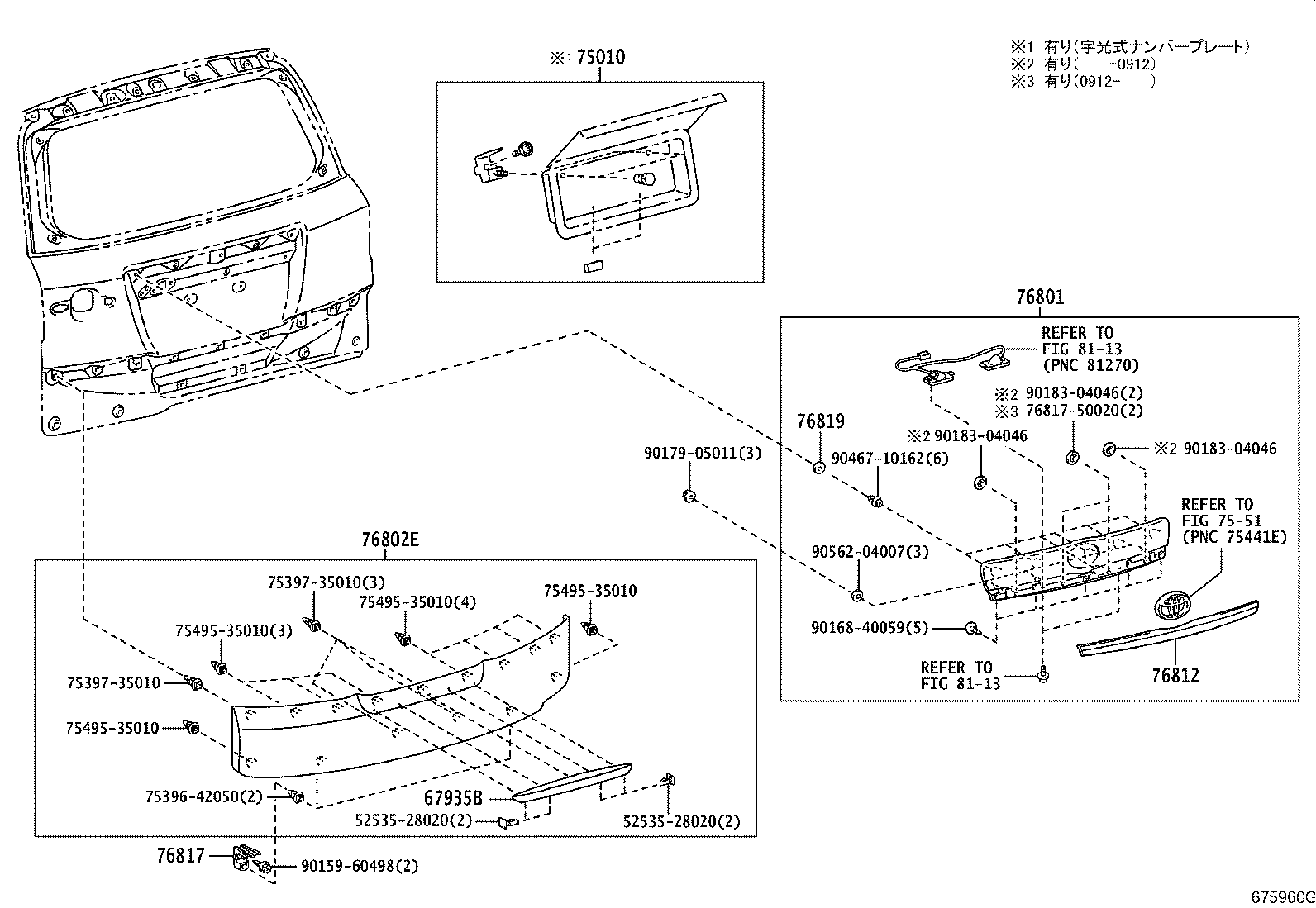

ILLUST NO. 3 OF 3(0811- )ACA33,38,GSA33
ﾅｼ(ｽﾍﾟｱﾀｲﾔｷｬﾘｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67935B - GARNISH, BACK DOOR | ||||
| 67935-42030 |
ACA33,38,GSA33 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-42120C0 |
ACA33,38,GSA33 BLACK,202 |
1 | ||
| 76801-42100D0 |
ACA33,38,GSA33 RED M.M.,3R3 |
1 | ||
| 76801-42100K0 |
ACA33,38,GSA33 DK.VIOLET M.M.,9AF |
1 | ||
| 76801-42100A1 |
ACA33,38,GSA33 WHITE PEARL CS.,070 |
1 | ||
| 76801-42110B0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),SILVER ME.,1F7 |
1 | ||
| 76801-42110C0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),BLACK,202 |
1 | ||
| 76801-42120A1 |
ACA33,38,GSA33 WHITE PEARL CS.,070 |
1 | ||
| 76801-42110A1 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),WHITE PEARL CS.,070 |
1 | ||
| 76801-42110E1 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),BEIGE ME.,4T8 |
1 | ||
| 76801-42100E1 |
ACA33,38,GSA33 BEIGE ME.,4T8 |
1 | ||
| 76801-42100B1 |
ACA33,38,GSA33 GRAY ME.,1G3 |
1 | ||
| 76801-42100G0 |
ACA33,38,GSA33 DK.GREEN MC.,6T3 |
1 | ||
| 76801-42100C0 |
ACA33,38,GSA33 BLACK,202 |
1 | ||
| 76801-42100B0 |
ACA33,38,GSA33 SILVER ME.,1F7 |
1 | ||
| 76801-42110G0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),DK.GREEN MC.,6T3 |
1 | ||
| 76801-42110B1 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),GRAY ME.,1G3 |
1 | ||
| 76801-42120B1 |
ACA33,38,GSA33 GRAY ME.,1G3 |
1 | ||
| 76801-42110D0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),RED M.M.,3R3 |
1 | ||
| 76801-42120D0 |
ACA33,38,GSA33 RED M.M.,3R3 |
1 | ||
| 76801-42130G0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),DK.GREEN MC.,6T3 |
1 | ||
| 76801-42110K0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),DK.VIOLET M.M.,9AF |
1 | ||
| 76801-42120E1 |
ACA33,38,GSA33 BEIGE ME.,4T8 |
1 | ||
| 76801-42120G0 |
ACA33,38,GSA33 DK.GREEN MC.,6T3 |
1 | ||
| 76801-42130B0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),SILVER ME.,1F7 |
1 | ||
| 76801-42130A1 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),WHITE PEARL CS.,070 |
1 | ||
| 76801-42120B0 |
ACA33,38,GSA33 SILVER ME.,1F7 |
1 | ||
| 76801-42130C0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),BLACK,202 |
1 | ||
| 76801-42130K0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),DK.VIOLET M.M.,9AF |
1 | ||
| 76801-42120K0 |
ACA33,38,GSA33 DK.VIOLET M.M.,9AF |
1 | ||
| 76801-42130E1 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),BEIGE ME.,4T8 |
1 | ||
| 76801-42130D0 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),RED M.M.,3R3 |
1 | ||
| 76801-42130B1 |
ACA33,38,GSA33 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝ),GRAY ME.,1G3 |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-42100B0 |
ACA33,38,GSA33 SILVER ME.,1F7 |
1 | ||
| 76802-42100B1 |
ACA33,38,GSA33 GRAY ME.,1G3 |
1 | ||
| 76802-42100C0 |
ACA33,38,GSA33 BLACK,202 |
1 | ||
| 76802-42100G0 |
ACA33,38,GSA33 DK.GREEN MC.,6T3 |
1 | ||
| 76802-42100E0 |
ACA33,38,GSA33 BEIGE ME.,4T8 |
1 | ||
| 76802-42100A1 |
ACA33,38,GSA33 WHITE PEARL CS.,070 |
1 | ||
| 76802-42100K0 |
ACA33,38,GSA33 DK.VIOLET M.M.,9AF |
1 | ||
| 76802-42100D0 |
ACA33,38,GSA33 RED M.M.,3R3 |
1 | ||
| 76812 - GARNISH, BACK DOOR, OUTSIDE LOWER | ||||
| 76812-42030 |
ACA33,38,GSA33 |
1 | ||
| Common parts | ||||
| 52535-28020 | ||||
| 75396-42050 | ||||
| 75397-35010 | ||||
| 75495-35010 | ||||
| 76817-50020 | ||||
| 90159-60498 | ||||
| 90168-40059 | ||||
| 90179-05011 | ||||
| 90183-04046 | ||||
| 90467-10162 | ||||
| 90562-04007 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8113 | ||||
