ACA38W-BNXGK (2008)

Toyota Rav4/Vanguard

Production Aug 2008 - Feb 2010
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

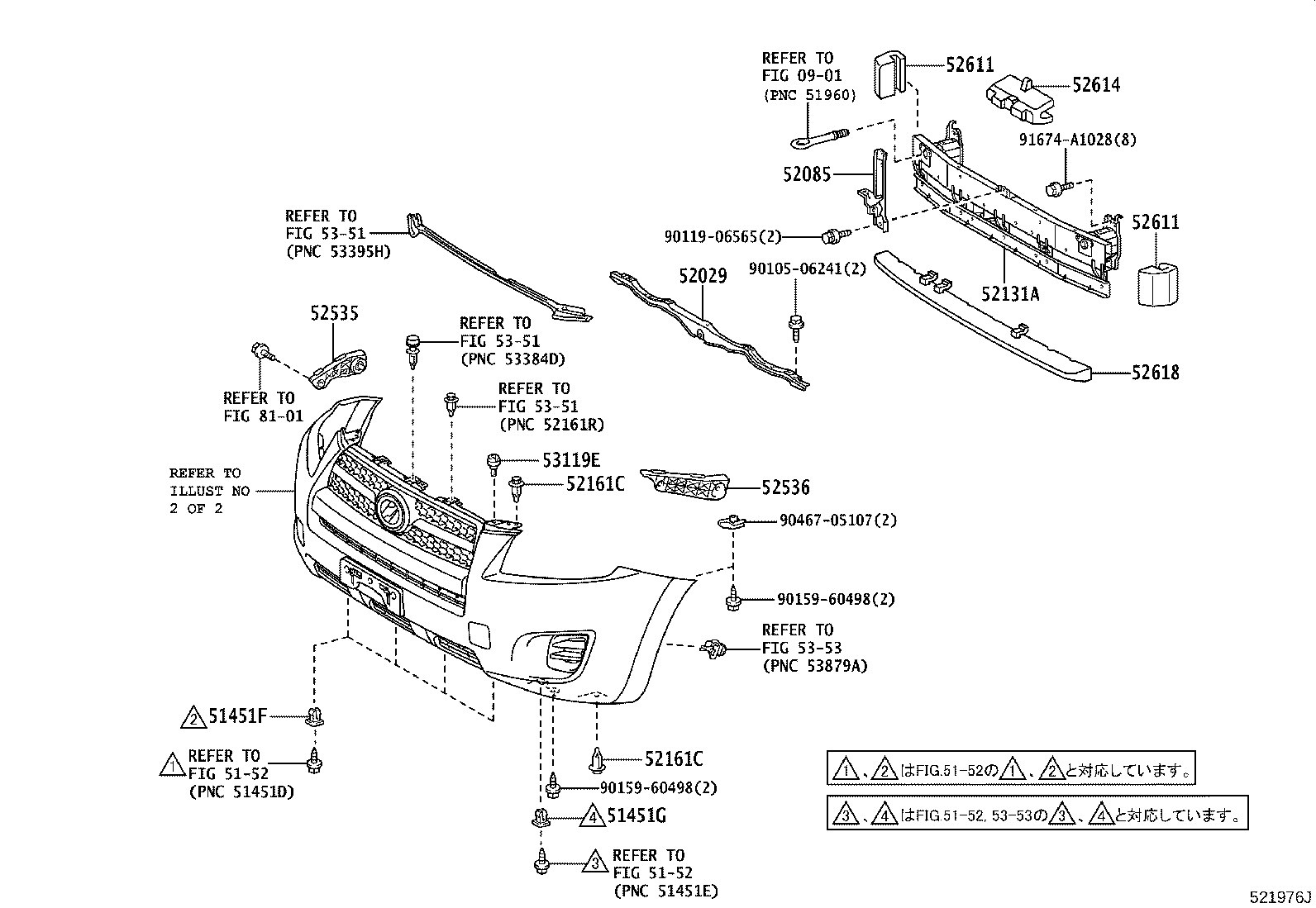

ILLUST NO. 1 OF 2(0808- )G,STYLE,X

Click highlighted areas on diagram

diagram 0901 51451F 51451G 5152 5152 52029 52085 52131A 52161C 52161C 52535 52536 52611 52611 52614 52618 53119E 5351 5351 5351 5353 8101 9010506241 9011906565 9015960498 9015960498 9046705107 91674A1028
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ACA3#,GSA33

 4
51451G - GROMMET, NO.2
90189-06193

ACA3#,GSA33

 2
52131A - REINFORCEMENT, FRONT BUMPER
52021-42090

ACA3#,GSA33

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
52161C - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ACA3#

 2
Common parts
90105-06241
90119-06565
90159-60498
90467-05107
91674-A1028
Linked diagrams
0901
5152
5351
5353
8101

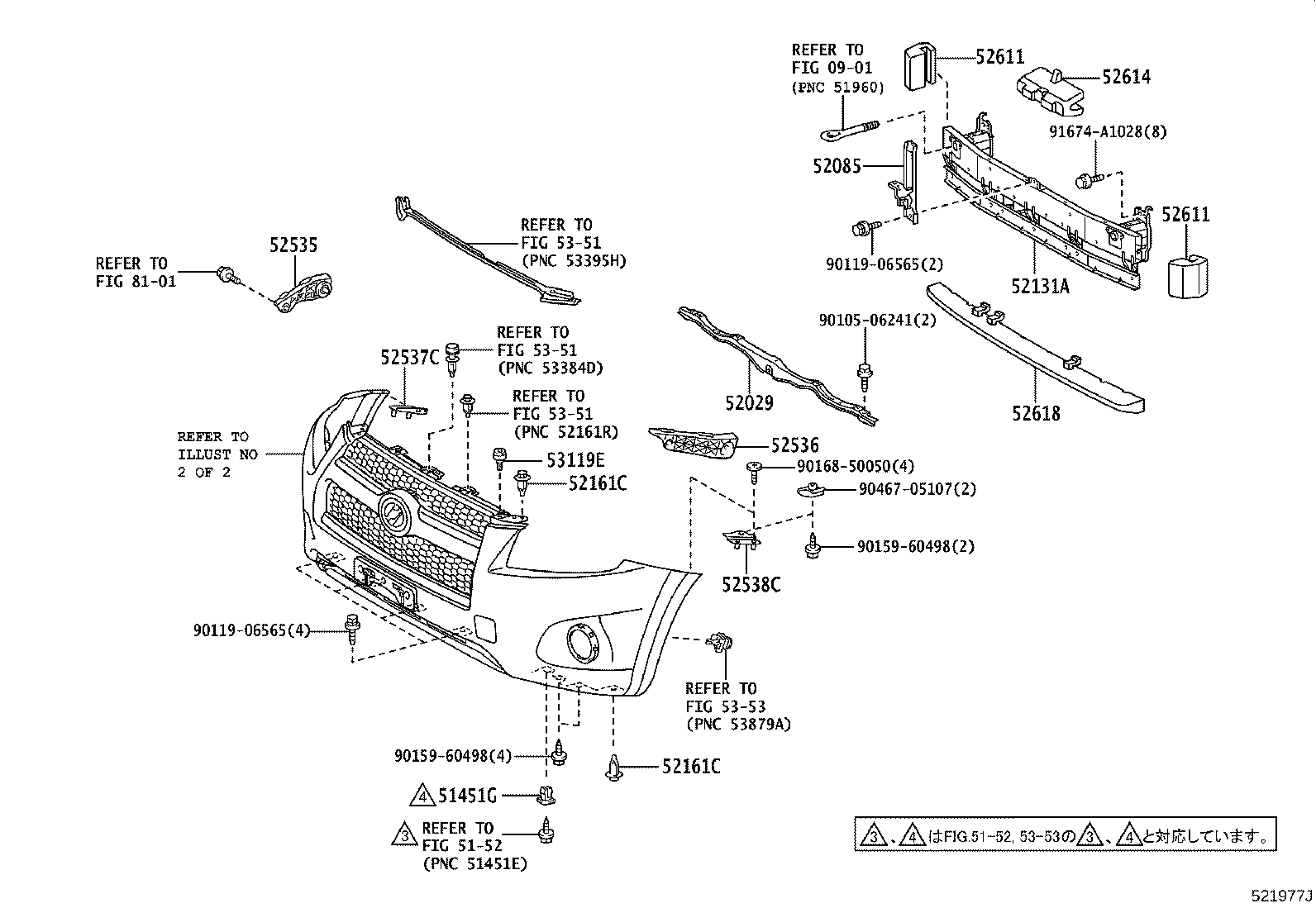

ILLUST NO. 1 OF 2(0808- )S

Click highlighted areas on diagram

diagram 0901 51451G 5152 52029 52085 52131A 52161C 52161C 52535 52536 52537C 52538C 52611 52611 52614 52618 53119E 5351 5351 5351 5353 8101 9010506241 9011906565 9011906565 9015960498 9015960498 9016850050 9046705107 91674A1028
Part # Description Qty Price
51451G - GROMMET, NO.2
90189-06193

ACA3#,GSA33

 2
52131A - REINFORCEMENT, FRONT BUMPER
52021-42090

ACA3#,GSA33

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
52161C - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ACA3#

 2
Common parts
90105-06241
90119-06565
90159-60498
90168-50050
90467-05107
91674-A1028
Linked diagrams
0901
5152
5351
5353
8101

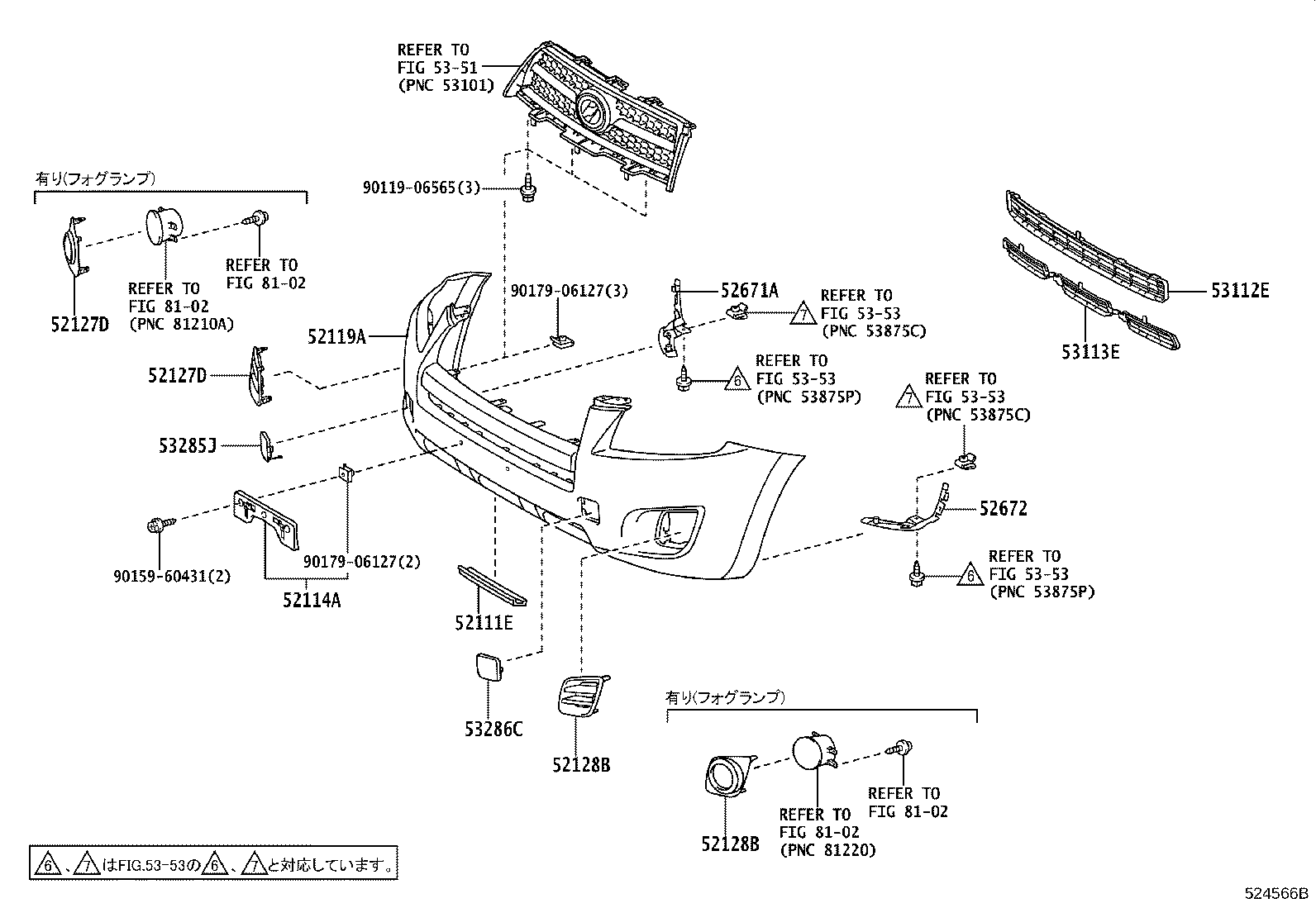

ILLUST NO. 2 OF 2(0808- )G,STYLE,X

Click highlighted areas on diagram

diagram 52111E 52114A 52119A 52127D 52127D 52128B 52128B 52671A 52672 53112E 53113E 53285J 53286C 5351 5353 5353 5353 5353 8102 8102 8102 8102 9011906565 9015960431 9017906127 9017906127
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-42590B1

ACA3#..G,X

SILVER ME.,1F7

 1
52119-42590G0

ACA3#..G,X

DK.GREEN MC.,6T3

 1
52119-42590D0

ACA3#..G,X

RED M.M.,3R3

 1
52119-42590J1

ACA3#..G,X

DK.BLUE MC.,8S6

 1
52119-42590G1

ACA3#..G,X

LT.GREEN ME.,6T6

 1
52119-42590C0

ACA3#..G,X

BLACK,202

 1
52119-42590A0

ACA3#..G,X

WHITE PEARL CS.,070

 1
52119-42590J0

ACA3#..G,X

GRAYISH BLUE ME.,8R3

 1
52119-42690B2

ACA33,38

GRAY ME.,1G3

 1
52119-42690K0

ACA33,38

DK.VIOLET M.M.,9AF

 1
52119-42690E1

ACA33,38

BEIGE ME.,4T8

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-42040B2

ACA33,38,GSA33

GRAY ME.,1G3

 1
53286-42040E1

ACA33,38,GSA33

BEIGE ME.,4T8

 1
53286-42040K0

ACA33,38,GSA33

DK.VIOLET M.M.,9AF

 1
Common parts
90119-06565
90159-60431
90179-06127
Linked diagrams
5351
5353
8102

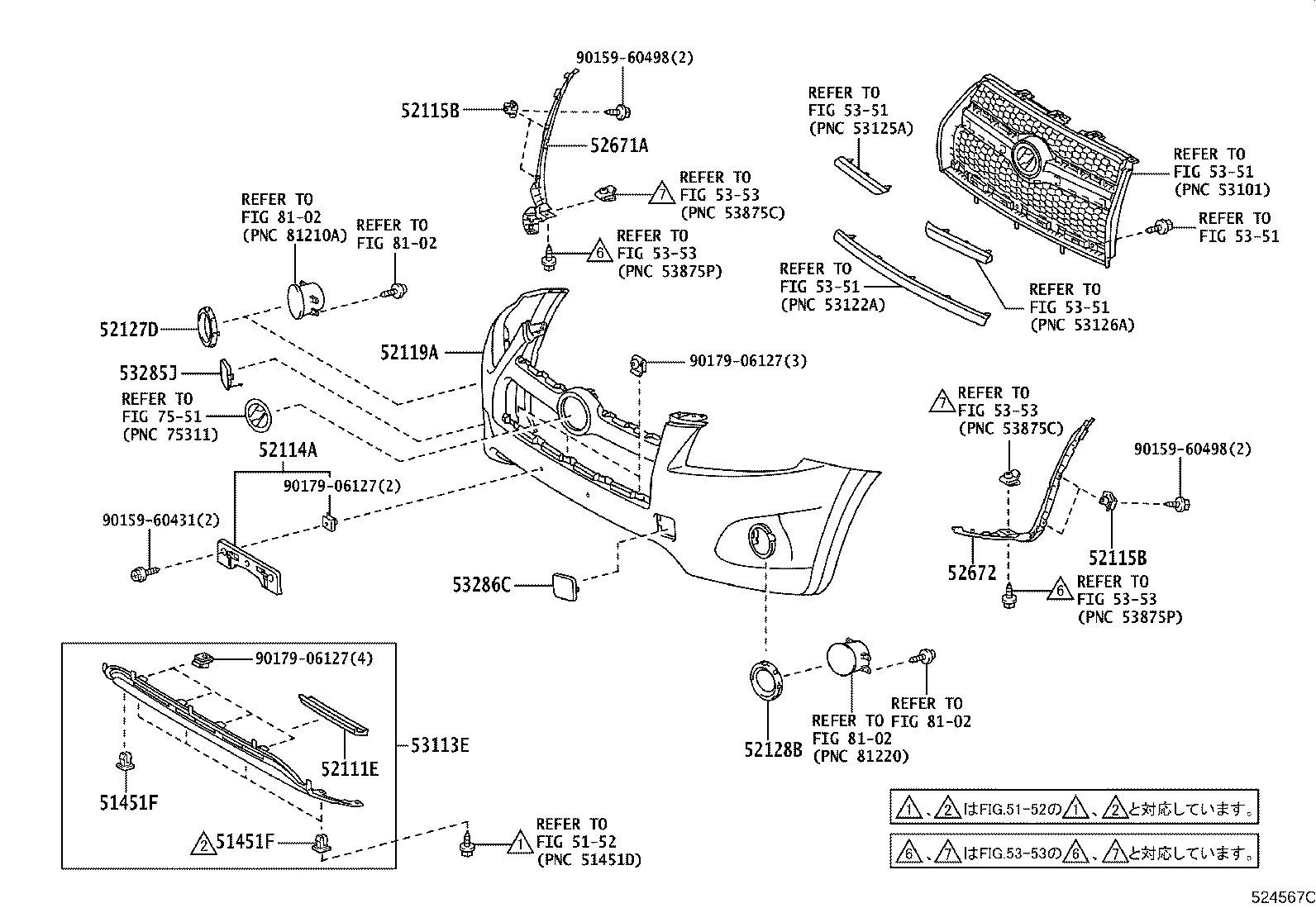

ILLUST NO. 2 OF 2(0808- )S

Click highlighted areas on diagram

diagram 51451F 51451F 5152 52111E 52114A 52115B 52115B 52119A 52127D 52128B 52671A 52672 53113E 53285J 53286C 5351 5351 5351 5351 5351 5353 5353 5353 5353 7551 8102 8102 8102 8102 9015960431 9015960498 9015960498 9017906127 9017906127 9017906127
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ACA3#,GSA33

 4
51451F - GROMMET, NO.1
90189-06193

ACA3#,GSA33

 4
52119A - COVER, FRONT BUMPER
52119-42590B1

ACA3#..G,X

SILVER ME.,1F7

 1
52119-42590G0

ACA3#..G,X

DK.GREEN MC.,6T3

 1
52119-42590D0

ACA3#..G,X

RED M.M.,3R3

 1
52119-42590J1

ACA3#..G,X

DK.BLUE MC.,8S6

 1
52119-42590G1

ACA3#..G,X

LT.GREEN ME.,6T6

 1
52119-42590C0

ACA3#..G,X

BLACK,202

 1
52119-42590A0

ACA3#..G,X

WHITE PEARL CS.,070

 1
52119-42590J0

ACA3#..G,X

GRAYISH BLUE ME.,8R3

 1
52119-42690B2

ACA33,38

GRAY ME.,1G3

 1
52119-42690K0

ACA33,38

DK.VIOLET M.M.,9AF

 1
52119-42690E1

ACA33,38

BEIGE ME.,4T8

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-42040B2

ACA33,38,GSA33

GRAY ME.,1G3

 1
53286-42040E1

ACA33,38,GSA33

BEIGE ME.,4T8

 1
53286-42040K0

ACA33,38,GSA33

DK.VIOLET M.M.,9AF

 1
Common parts
90159-60431
90159-60498
90179-06127
Linked diagrams
5152
5351
5353
7551
8102
