ACA36W-AWXXK (2008)

Toyota Rav4/Vanguard

Production Aug 2008 - Dec 2012
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-1203)ACA33,38,GSA33 ; (0511-1204)ACA31,36

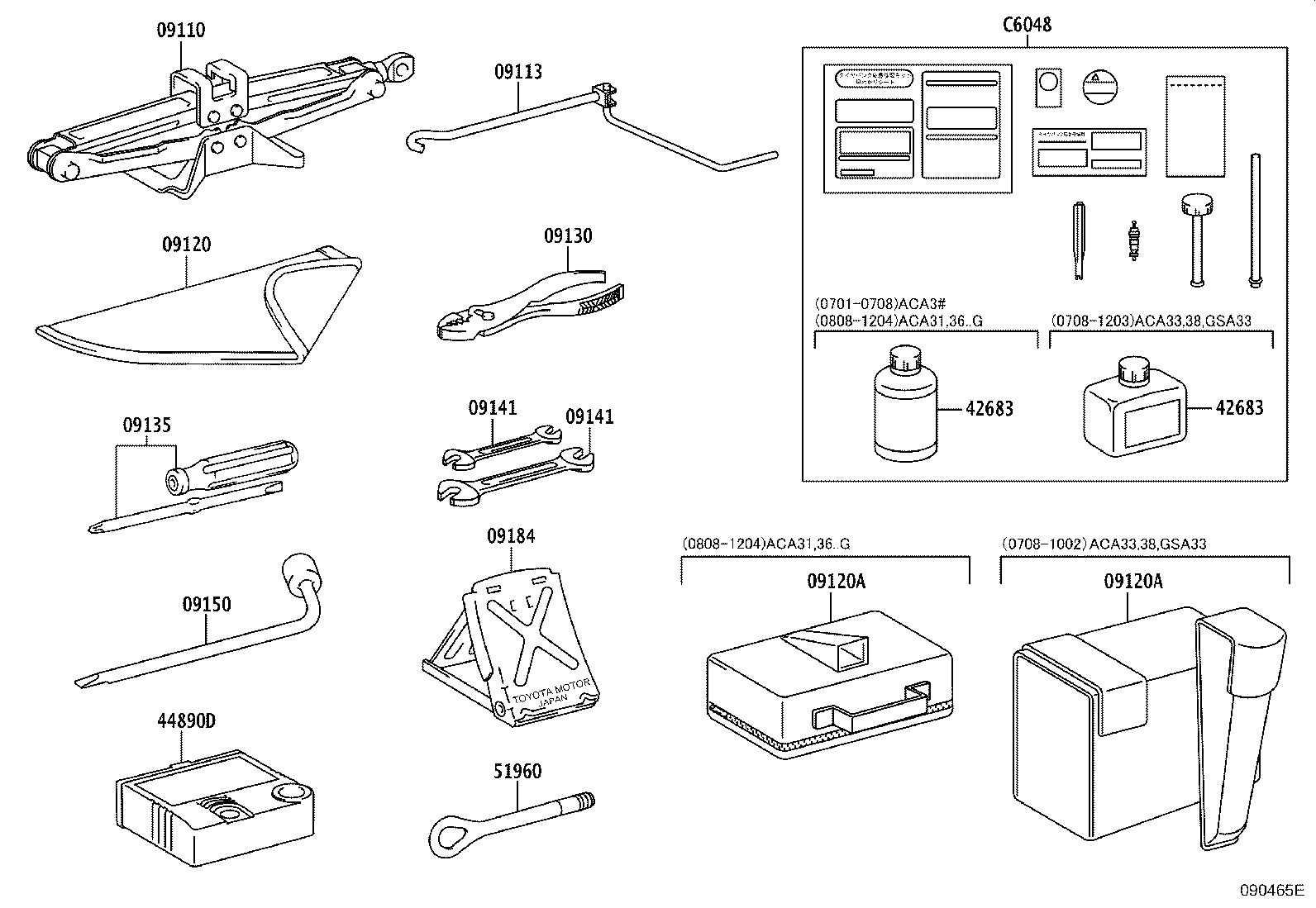

Click highlighted areas on diagram

diagram 09110 09113 09120 09120A 09120A 09130 09135 09141 09141 09150 09184 42683 42683 44890D 51960 C6048
Part # Description Qty Price
09110 - JACK ASSY
09111-0W110

ACA31,36

 1
09111-0W111

ACA31,36

 1
09111-0W110

ACA31,36

 1
09113 - HANDLE, JACK
09113-42010

ACA31,36

 1
09113-42030

ACA31,36

 1
09113-42010

ACA31,36

 1
09120 - BAG, TOOL
09120-30050

ACA31,36

 1
09120-37030

ACA31,36

 1
09120-30050

ACA3#,GSA33

 1
09130 - PLIERS
99913-11500

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99913-11500

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
09135 - DRIVER, SCREW
99915-10700

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99915-10700

ACA31,36

DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
09141 - SPANNER
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
09141 - SPANNER
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
99914-10810

ACA31,36

8 X 10,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾌﾟﾗｲﾔ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ﾄﾞﾗｲﾊﾞ)

 1
99914-11214

ACA31,36

12 X 14,DOPﾂｰﾙ(ｽﾊﾟﾅ)

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

ACA31,36

 1
09150-40010

ACA31,36

 1
09184 - STOPPER, WHEEL
09184-00010

ACA31,36

DOPﾂｰﾙ(輪止め)

 1
09184-00010

ACA31,36

DOPﾂｰﾙ(輪止め)

 1
51960 - HOOK ASSY, FRONT
51961-42040

ACA31,36

 1
51961-42040

ACA31,36

 1
