ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA3#

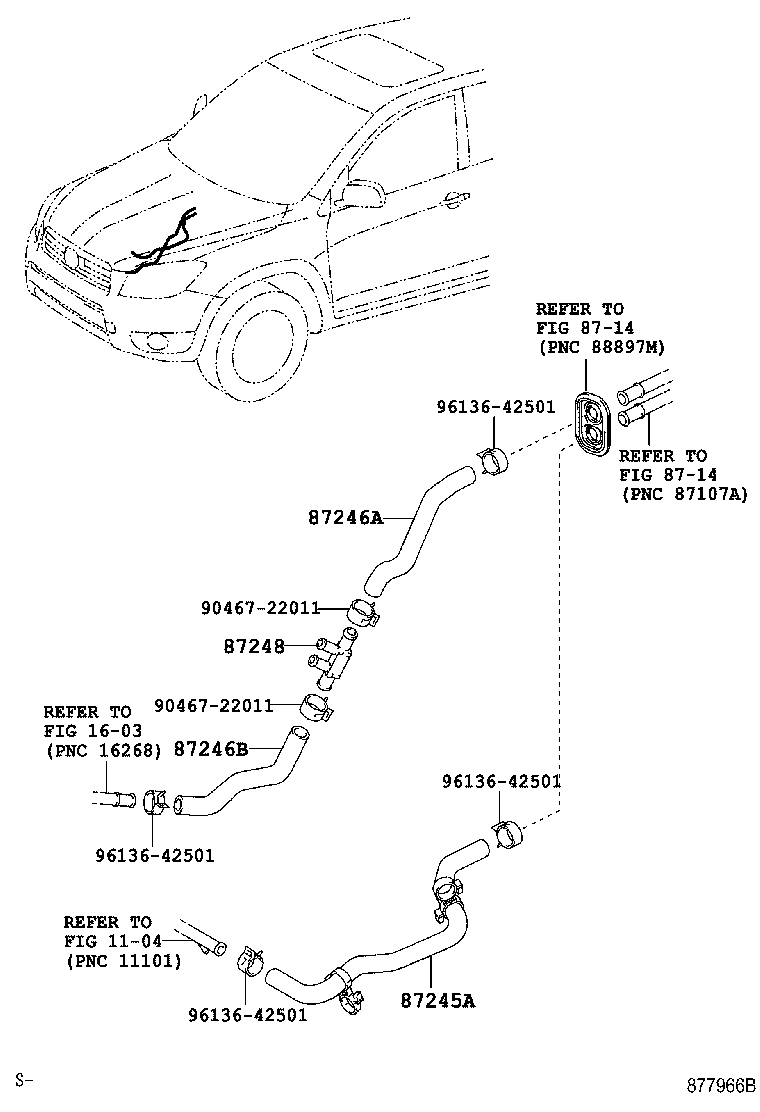

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87245A 87246A 87246B 87248 9046722011 9046722011 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-42060

ACA31,36

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-42360

ACA31,36

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-42370

ACA31,36

 1
87248 - PIPE SUB-ASSY, WATER
87248-42010

ACA31,36

 1
Common parts
90467-22011
96136-42501
Linked diagrams
1104
1603
8714
