ACA36W-AWXXK (2005)
Toyota Rav4/Vanguard

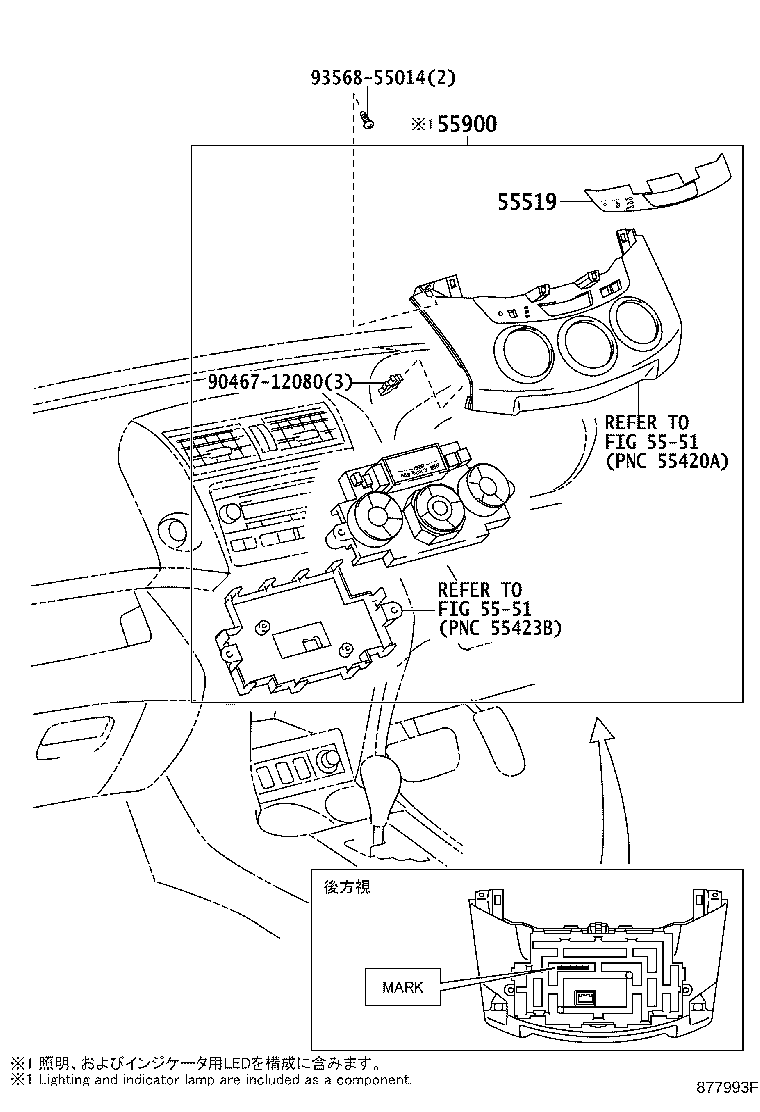

ILLUST NO. 1 OF 3(0511- )
ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-42140 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ) |
1 | ||
| 55519-42150 |
ACA3#..S,X |
1 | ||
| 55519-42140 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 55519-42140 |
ACA31,36..S,X |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-42300 |
ACA3#..S,X ﾏｰｸ=55900−42300 |
1 | ||
| 55900-42300B0 |
ACA31,36..S,X GRAY,TRIM1#,ﾏｰｸ=55900−42300 |
1 | ||
| 55900-42320 |
ACA3#..S,X ﾏｰｸ=55900−42320 |
1 | ||
| 55900-42310 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,ﾏｰｸ=55900|42310 |
1 | ||
| 55900-42300 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ),ﾏｰｸ=55900−42300 |
1 | ||
| 55900-42310B0 |
ACA36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ,GRAY,TRIM1#,ﾏｰｸ=55900−42310 |
1 | ||
| 55900-42310 |
ACA3#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ,ﾏｰｸ=55900−42310 |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5551 | ||||

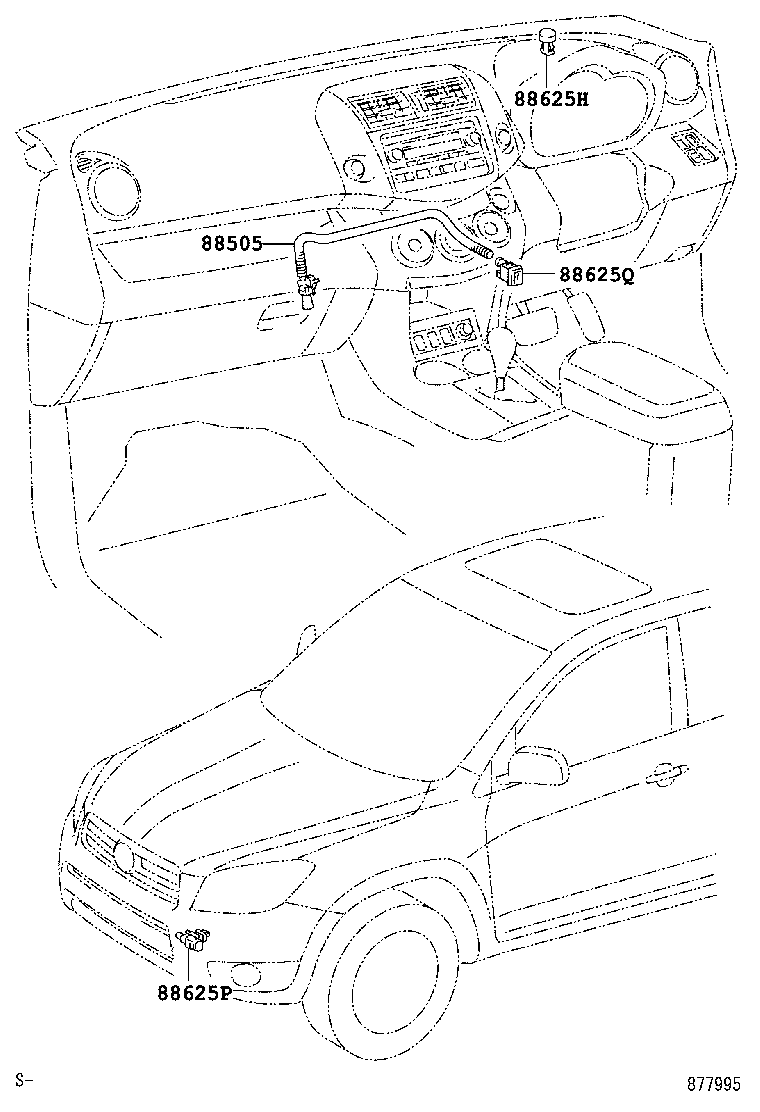

ILLUST NO. 3 OF 3(0511- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-42010 |
ACA31,36 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-51010 |
ACA31,36 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
ACA31,36 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-48070 |
ACA31,36 |
1 | ||

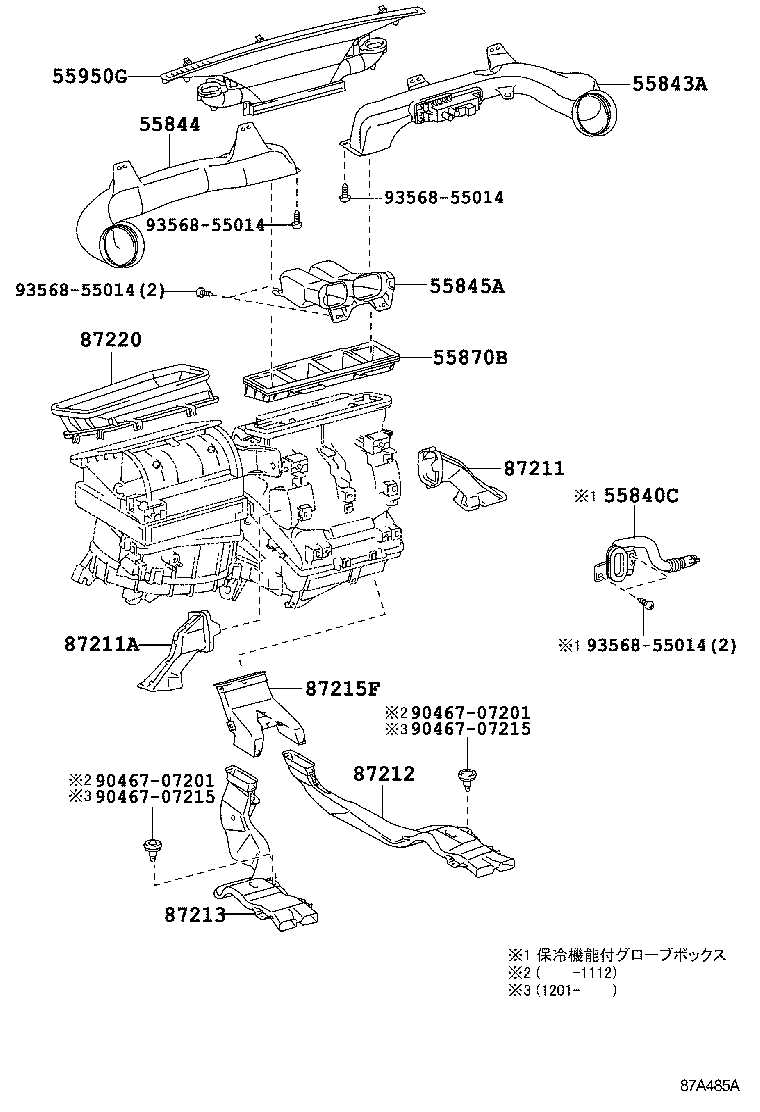

ILLUST NO. 2 OF 3(0511- )05S
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-42060 |
ACA31,36..S,X |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-42080 |
ACA31,36 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-42060 |
ACA31,36 |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-42030 |
ACA31,36 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-42030 |
ACA31,36 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-42070 |
ACA31,36 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-42080 |
ACA31,36 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-42050 |
ACA31,36 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-42040 |
ACA31,36 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-42050 |
ACA31,36 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-42060 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 93568-55014 | ||||
