ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

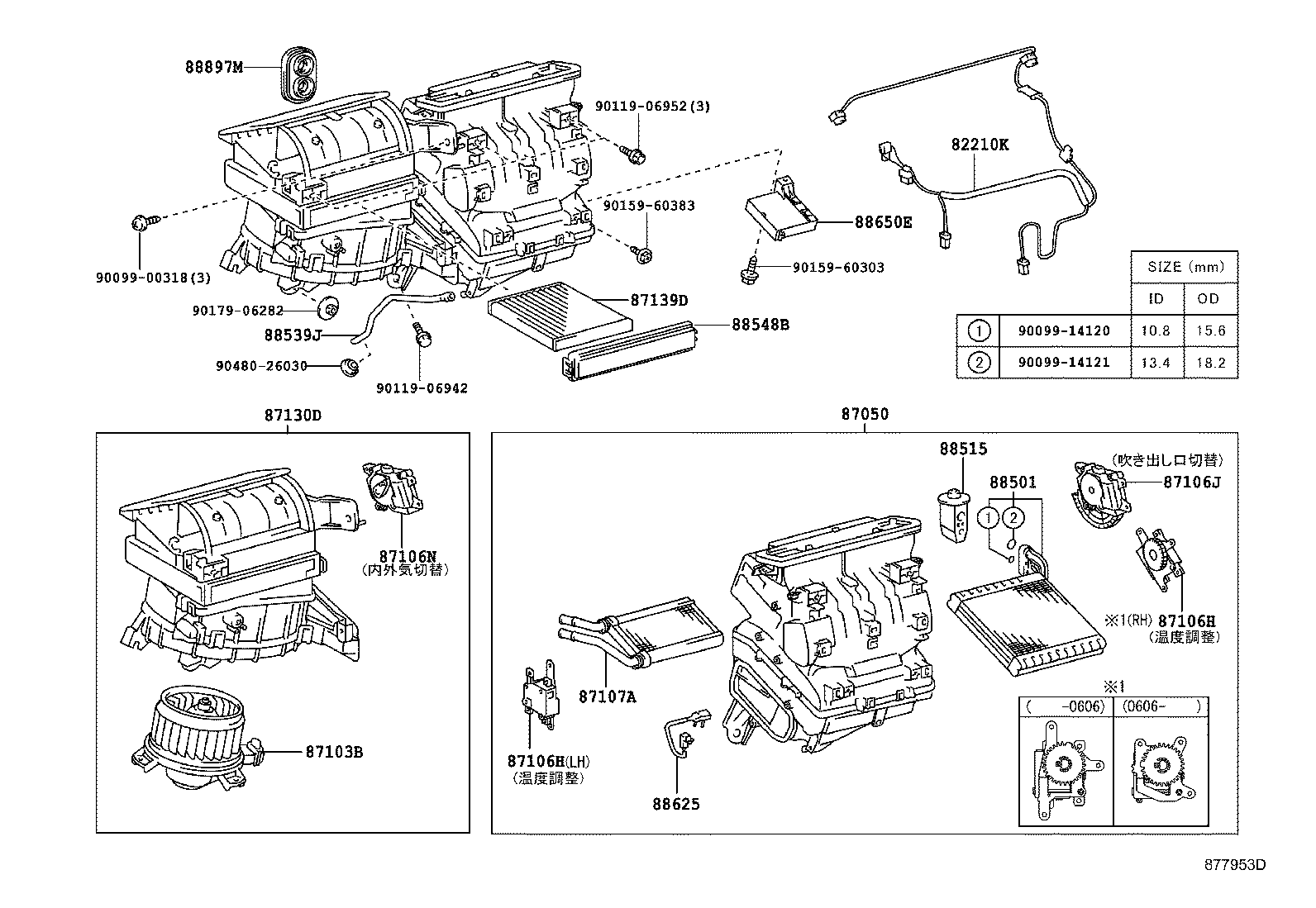

Click highlighted areas on diagram

diagram 82210K 87050 87103B 87106H 87106H 87106J 87106N 87107A 87130D 87139D 88501 88515 88539J 88548B 88625 88650E 88897M 9009900318 9009914120 9009914121 9011906942 9011906952 9015960303 9015960383 9017906282 9048026030
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-12040

ACA31,36

 1
82212-42020

ACA3#

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12330

ACA31,36

 1
87050-42320

ACA3#

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42081

ACA31,36

 1
87103-42080

ACA3#,GSA33

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-42080

ACA3#

右側

 1
87106-42090

ACA31,36

左側

 1
87106-12170

ACA31,36

右側

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-42080

ACA3#

右側

 1
87106-42090

ACA31,36

左側

 1
87106-12170

ACA31,36

右側

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-42100

ACA31,36

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42120

ACA31,36

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170

ACA31,36

 1
87130D - BLOWER ASSY
87130-42200

ACA3#

 1
87130-12510

ACA3#,GSA33

 1
87130-12511

ACA31,36

 1
87139D - ELEMENT, AIR REFINER
87139-30040

ACA31,36

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-26211

ACA31,36

 1
88501-26210

ACA3#,GSA33

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

ACA3#

 1
88539J - HOSE, DRAIN COOLER
88539-42050

ACA31,36

 1
88548B - CASE, AIR FILTER
88548-42010

ACA31,36

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

ACA31,36

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-42240

ACA31,36

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-42010

ACA31,36

 1
Common parts
90099-00318
90099-14120
90099-14121
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030
