ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

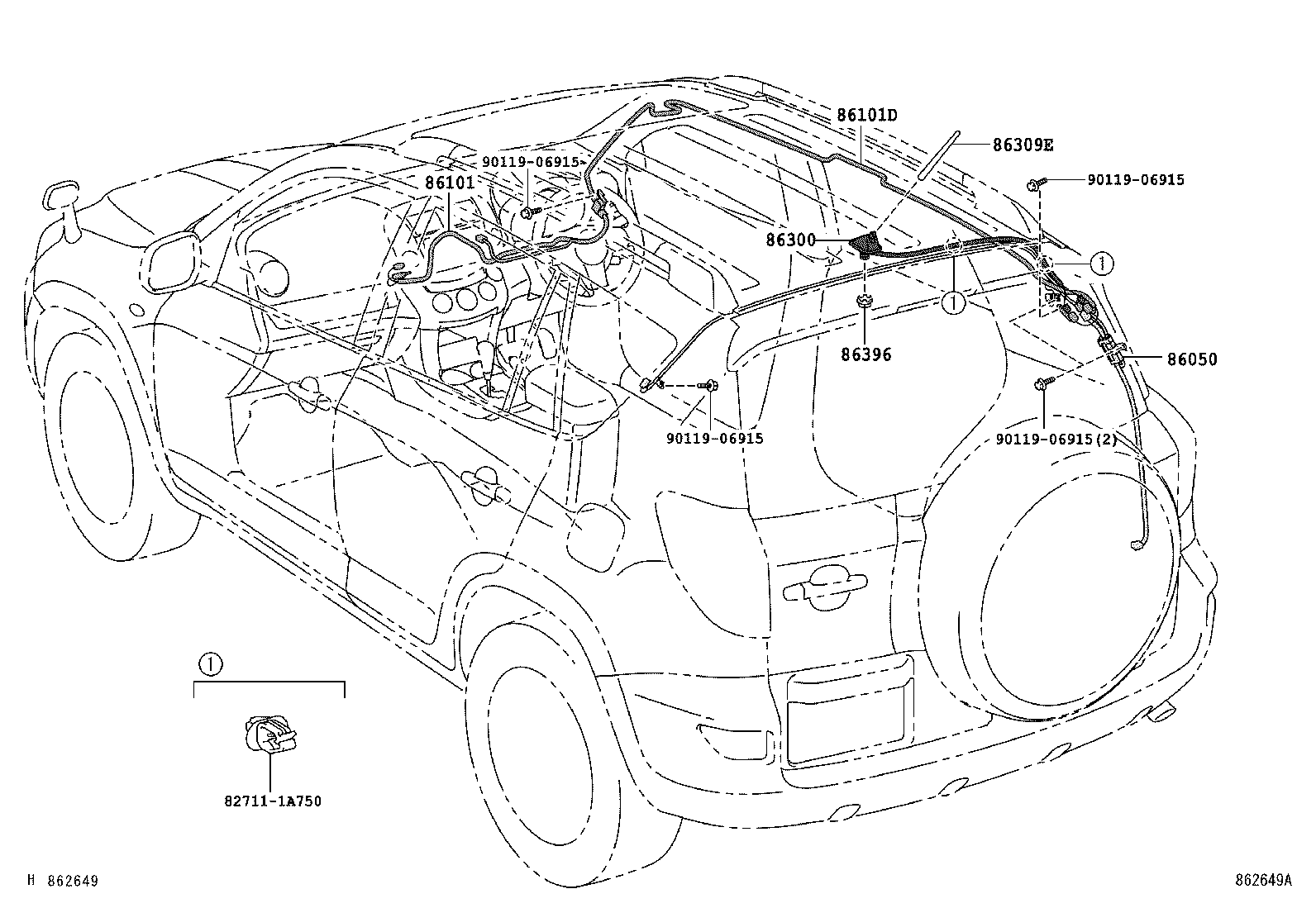

Click highlighted areas on diagram

diagram 827111A750 86050 86101 86101D 86300 86309E 86396 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-42060

ACA31,36..G,S

ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-42280

ACA31,36

 1
86101-42320

ACA31,36..G,S

ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-42330

ACA31,36..G,S

ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI

 1
86101-42300

ACA31,36

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-42120

ACA31,36

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-52030

ACA3#,GSA33

 1
86396 - NUT, ANTENNA
86396-20040

ACA3#,GSA33

 1
Common parts
82711-1A750
90119-06915
