ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

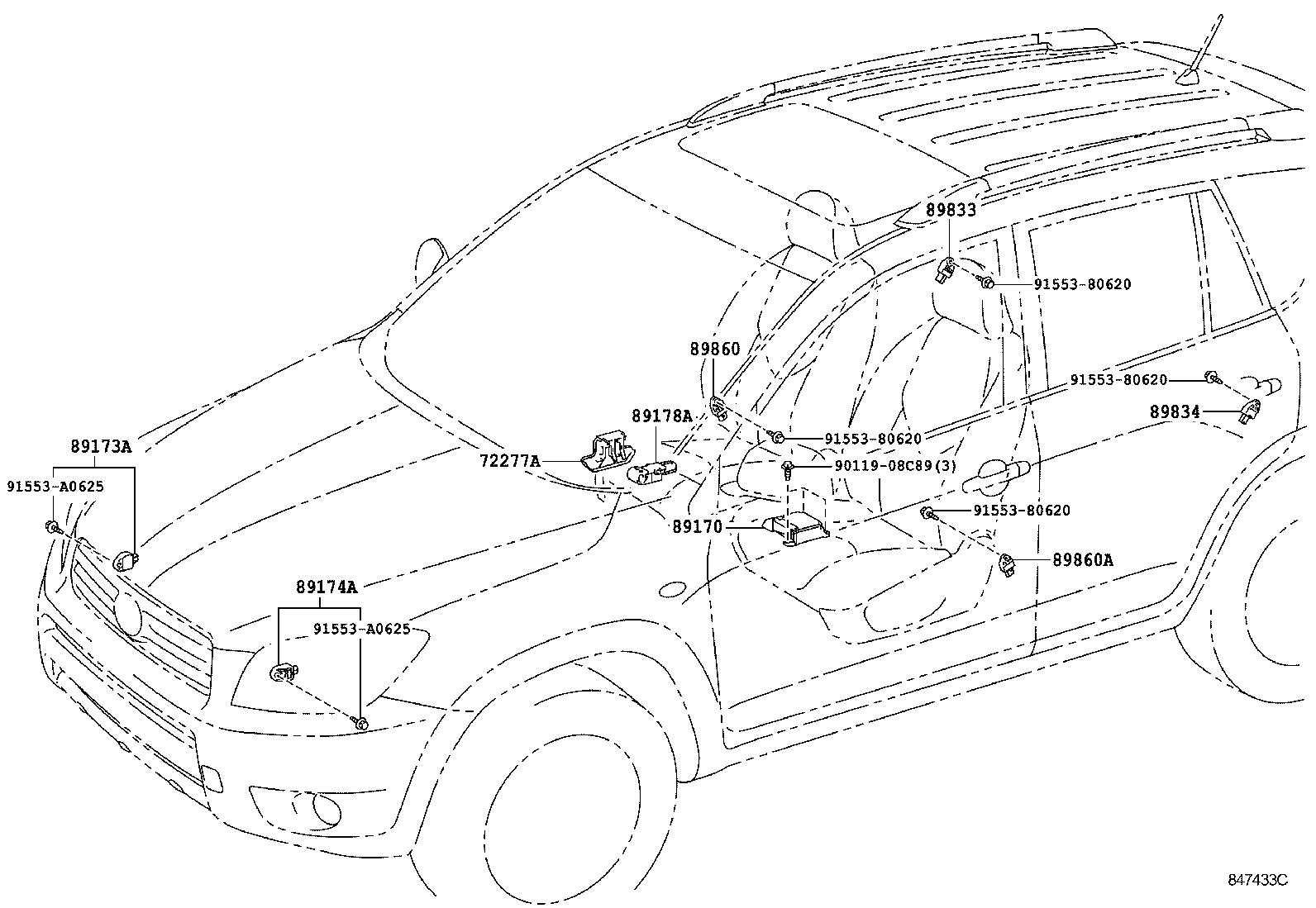

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89833 89834 89860 89860A 9011908C89 9155380620 9155380620 9155380620 9155380620 91553A0625 91553A0625
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33010

ACA31,36

 1
89170 - SENSOR ASSY, AIR BAG
89170-42240

ACA3#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89170-42241

ACA3#,GSA33

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89170-42220

ACA3#,GSA33

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49375

ACA31,36

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49375

ACA31,36

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33020

ACA31,36

 1
89178-33040

ACA31,36

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-33020

ACA3#,GSA33

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-33020

ACA3#,GSA33

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-42010

ACA3#,GSA33

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-42010

ACA3#,GSA33

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
Common parts
90119-08C89
91553-80620
91553-A0625
