ACA36W-AWXXK (2005)
Toyota Rav4/Vanguard

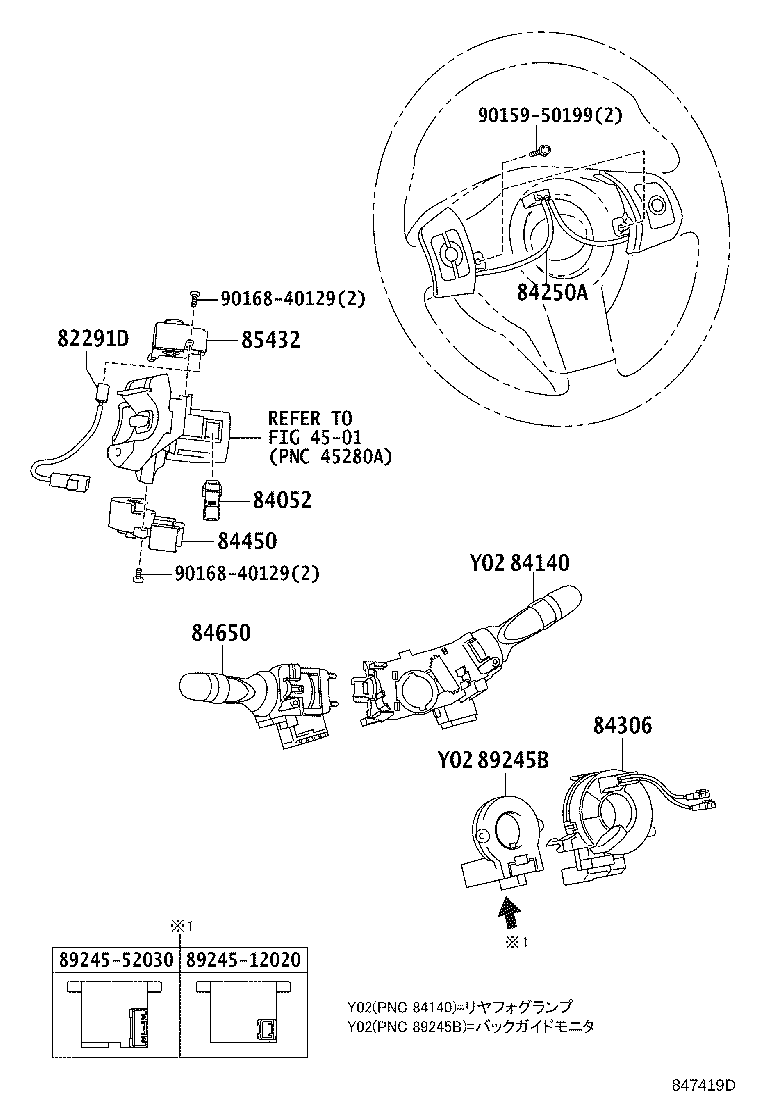

ILLUST NO. 6 OF 8(0511- )G,S,X
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-42010 |
ACA31,36..S,X |
1 | ||
| 82291-42010 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ACA31,36..S,X |
1 | ||
| 84052-71010 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42030 |
ACA31,36..X |
1 | ||
| 84140-42050 |
ACA31,36..X 寒冷地仕様 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-42010 |
ACA31,36..G,S ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-22010 |
ACA31,36 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ACA31,36..S,X |
1 | ||
| 84450-12200 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
ACA31,36 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
ACA31,36..S,X |
1 | ||
| 85432-71010 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52030 |
ACA36 VSC付き |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

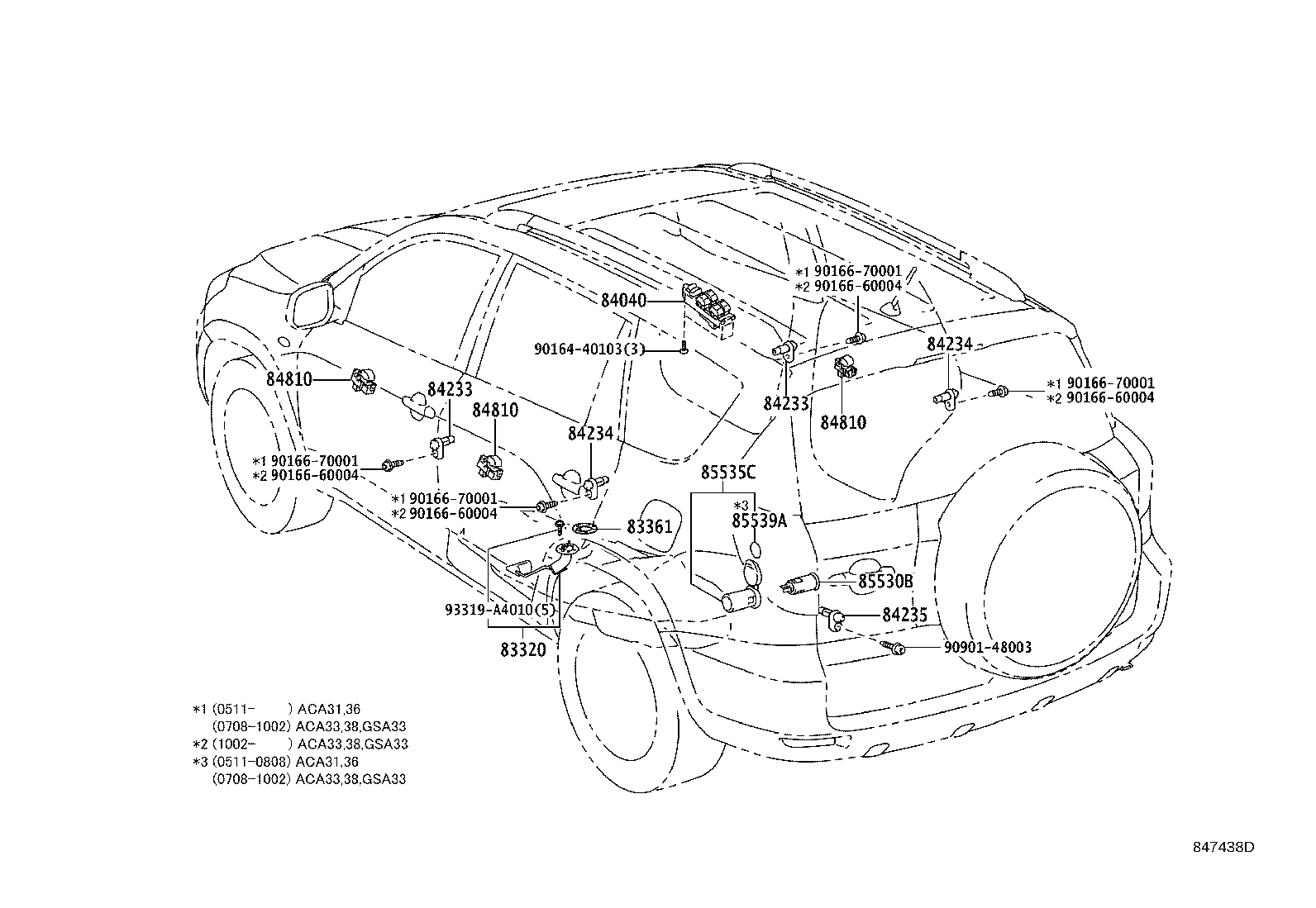

ILLUST NO. 8 OF 8(0511- )
ﾄﾞｱ,ﾙｰﾌ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ACA31,36 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-42010 |
ACA3# |
1 | ||
| 84040-12110 |
ACA31,36 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACA31,36 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACA31,36 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACA31,36 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACA31,36 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
ACA31,36 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-42010 |
ACA31,36 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-42010 |
ACA31,36 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-42010 |
ACA31,36 |
3 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
ACA31,36 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35070B2 |
ACA31,36 DK.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60010 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||

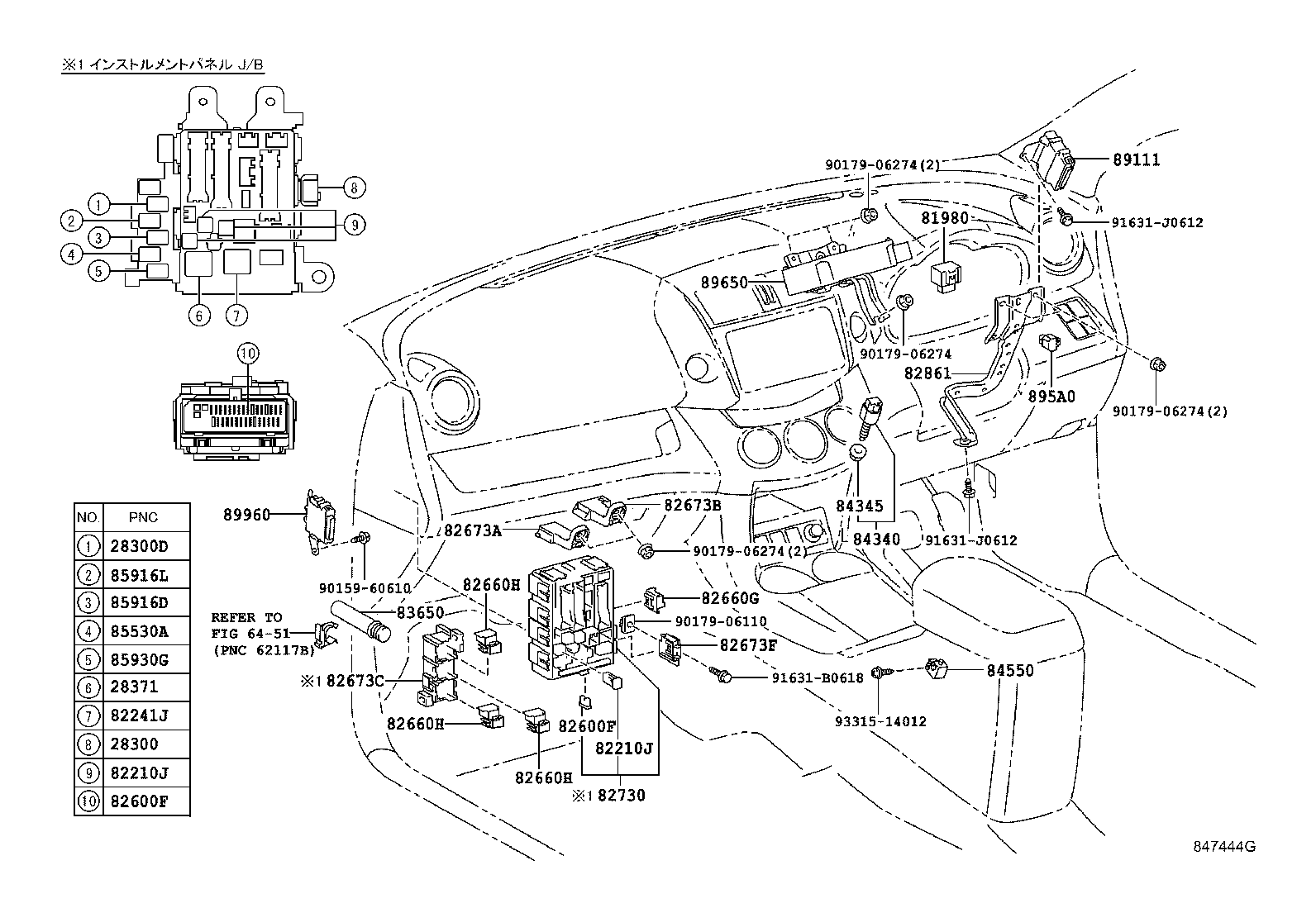

ILLUST NO. 4 OF 8(0511- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE..ACA31,36 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2AZFE..ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2AZFE..ACA31,36 |
1 | ||
| 90987-02025 |
2AZFE..ACA3# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ACA31,36 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08202 |
ACA3# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
ACA3# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08274 |
ACA3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08295 |
ACA3#,GSA33 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ACA3# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08202 |
ACA3# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
ACA3# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08274 |
ACA3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08295 |
ACA3#,GSA33 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ACA3# 50A,ﾒｽ端子,赤 |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ACA31,36 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
ACA3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
ACA3#,GSA33 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ACA3#,GSA33 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ACA3#,GSA33 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ACA3#,GSA33 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ACA3#,GSA33 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
ACA3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
ACA3#,GSA33 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ACA3#,GSA33 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ACA3#,GSA33 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ACA3#,GSA33 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ACA3#,GSA33 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
ACA31,36 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
3 | ||
| 82660-52010 |
ACA31,36..S,X |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
3 | ||
| 82660-52010 |
ACA31,36..S,X |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
3 | ||
| 82660-52010 |
ACA31,36..S,X |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-42140 |
ACA31,36 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-42150 |
ACA31,36 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-42110 |
ACA31,36 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-42130 |
ACA31,36 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42190 |
ACA31,36..S,X |
1 | ||
| 82730-42310 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82730-42310 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-42030 |
ACA31,36 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ACA31,36 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
ACA3#,GSA33 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACA31,36 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACA31,36 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACA31,36 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ACA31,36..G,S |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACA31,36 寒冷地仕様 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACA31,36 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42030 |
ACA31,36 NSK |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-42060 |
ACA31,36 |
1 | ||
| 89960-42010 |
ACA3# |
1 | ||
| Common parts | ||||
| 90159-60610 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6451 | ||||

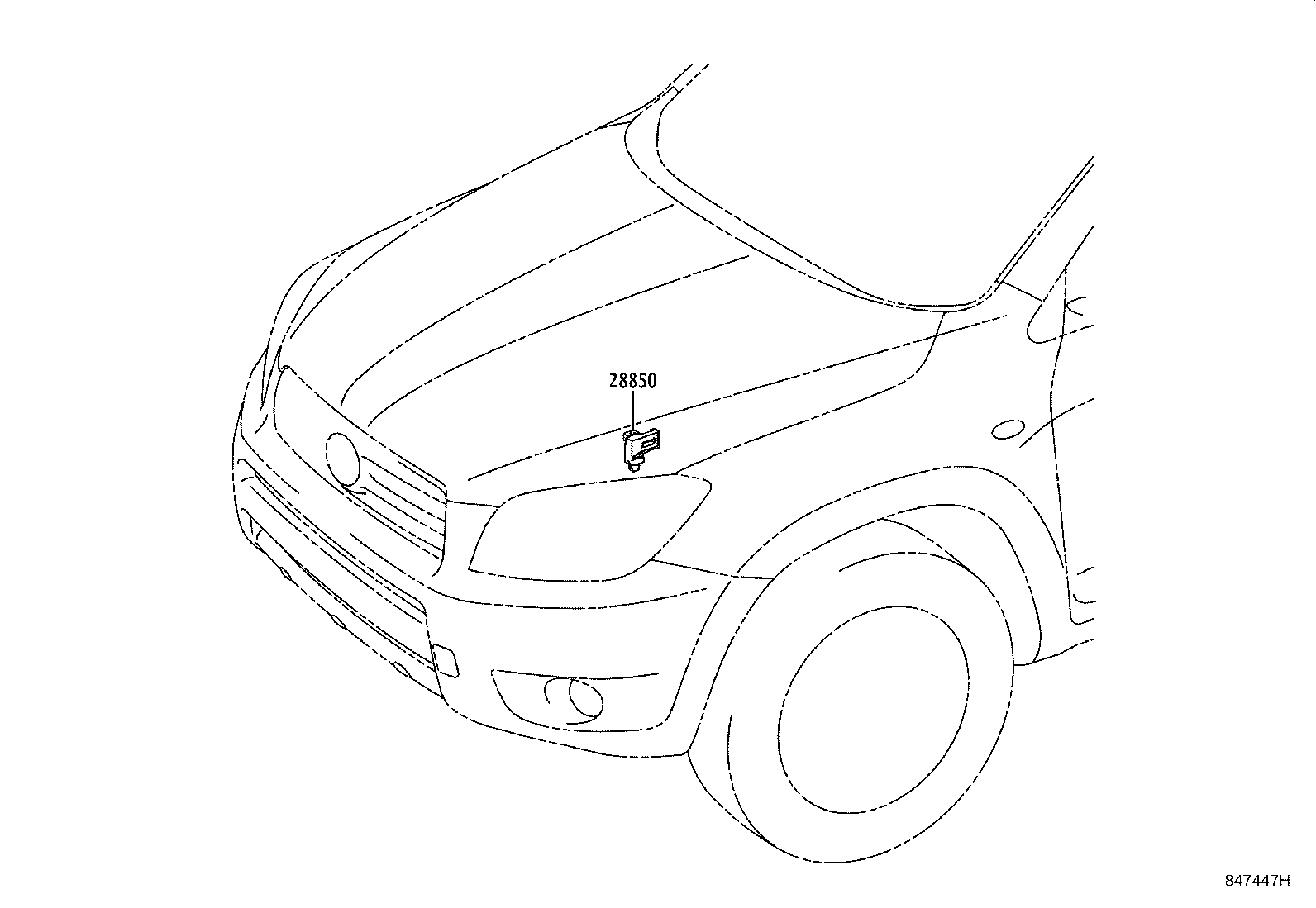

ILLUST NO. 2 OF 8(0511- )ACA3#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE..ACA31,36 |
1 | ||

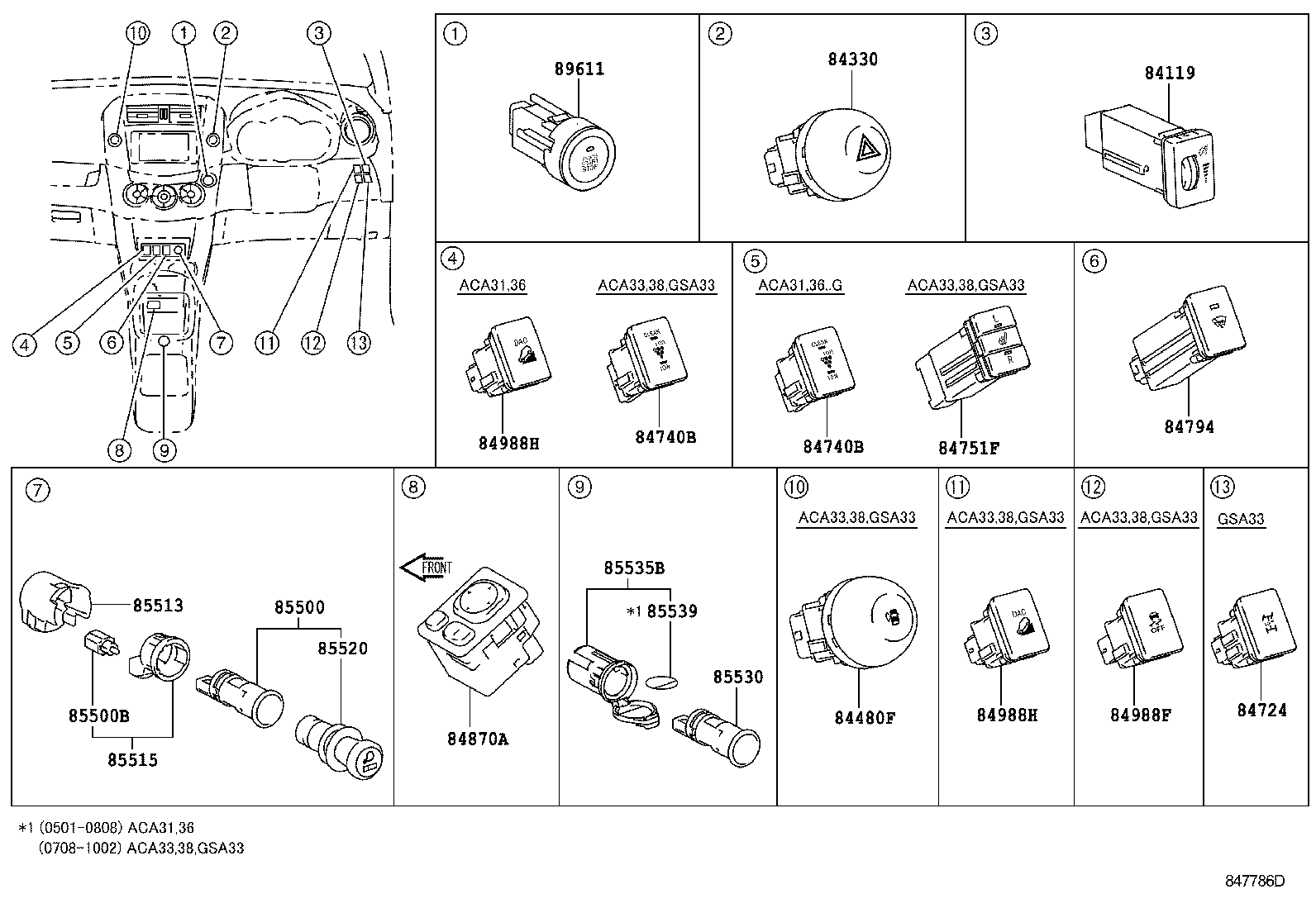

ILLUST NO. 5 OF 8(0511-0808)ACA31,36 ; (0708- )ACA33,38,GSA33
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ACA31,36 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA31,36 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
ACA31,36 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
ACA31,36 |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-42020 |
ACA31,36..G,X VSC付き |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-42020 |
ACA31,36..G,X VSC付き |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ACA31,36 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
ACA31,36 14V1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ACA31,36 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
ACA31,36 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACA31,36 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACA31,36 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35070B2 |
ACA31,36 DK.GRAY,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
ACA31,36 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52020 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89611-52021 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||

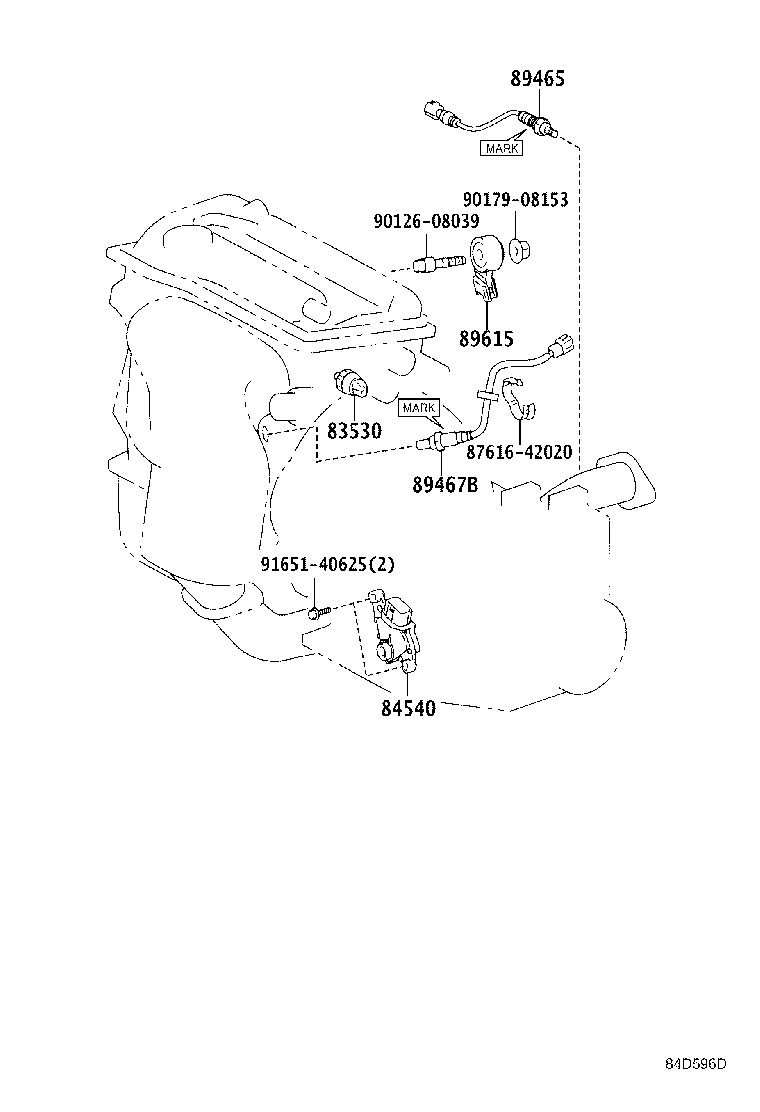

ILLUST NO. 1 OF 8(0511- )ACA3#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACA31,36 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ACA31,36 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42170 |
ACA31,36 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28120 |
ACA3# ﾏｰｸ 89467−28120 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91651-40625 | ||||

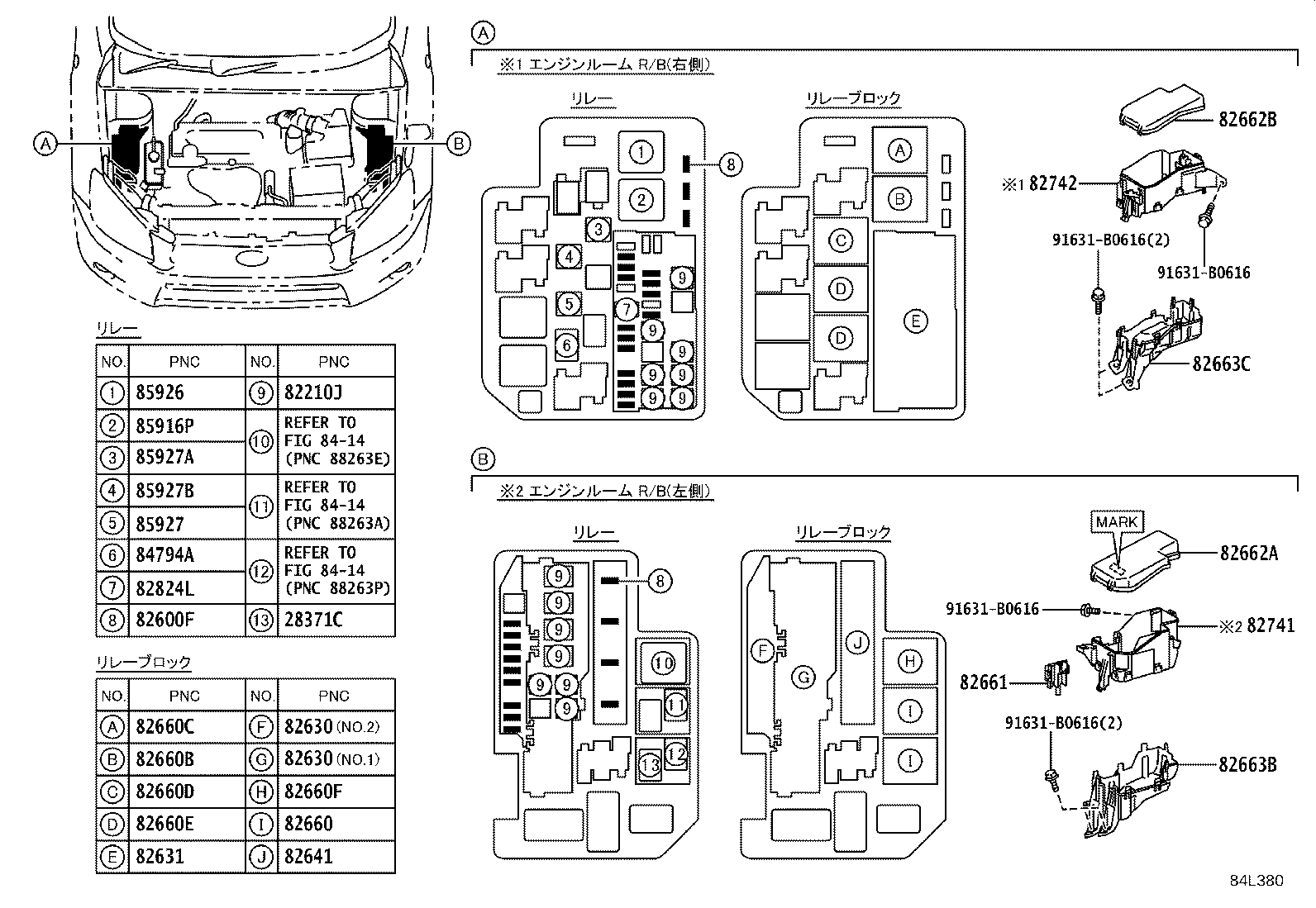

ILLUST NO. 3 OF 8(0511- )ACA3#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE..ACA31,36 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08202 |
ACA3# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
ACA3# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08274 |
ACA3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08295 |
ACA3#,GSA33 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ACA3# 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
ACA3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
ACA3#,GSA33 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ACA3#,GSA33 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ACA3#,GSA33 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ACA3#,GSA33 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ACA3#,GSA33 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42020 |
ACA31,36 NO.2 |
1 | ||
| 82631-42010 |
ACA31,36 NO.1 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42020 |
ACA31,36 NO.2 |
1 | ||
| 82631-42010 |
ACA31,36 NO.1 |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42030 |
ACA31,36 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ACA3# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42030 |
ACA31,36..G,X |
1 | ||
| 82660-42030 |
ACA31,36..G,X VSC付き |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA31,36 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
ACA31,36 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ACA31,36 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA31,36 |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA31,36..G,X VSC付き |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42030 |
ACA31,36 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42170 |
ACA3# ﾏｰｸ 82662−42170 |
1 | ||
| 82662-42171 |
ACA3#,GSA33 ﾏｰｸ 82662−42171 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42200 |
ACA3# |
1 | ||
| 82662-42201 |
ACA31,36 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-42080 |
ACA31,36 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-42090 |
ACA31,36 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42010 |
ACA31,36 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-42030 |
ACA31,36 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACA3# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
ACA31,36 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ACA31,36 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ACA31,36 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ACA31,36 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACA31,36 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
