ACA36W-AWXXK (2005)
Toyota Rav4/Vanguard
ILLUST NO. 1 OF 9(0511- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

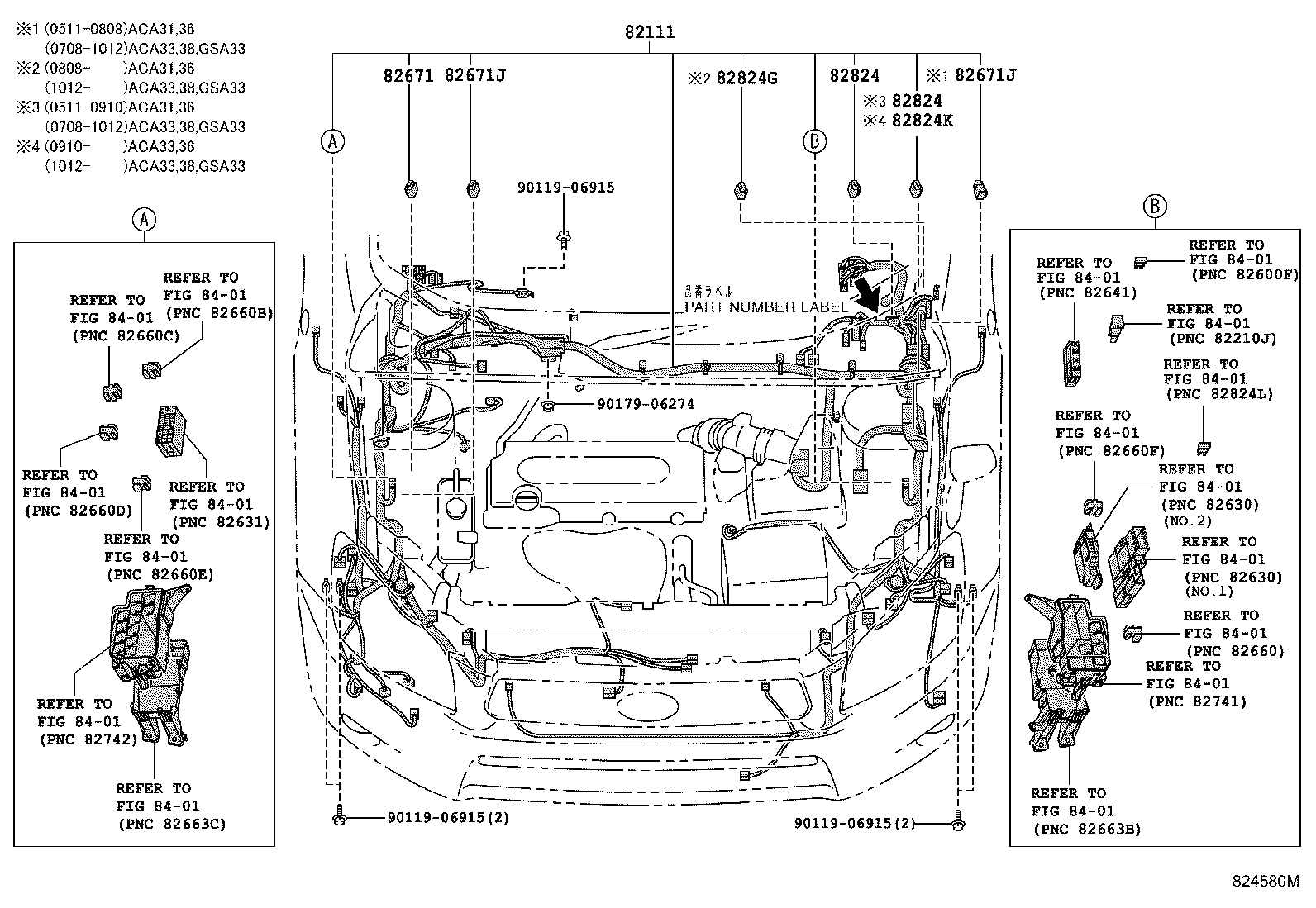

| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-42E11 |
ACA3#..G,X VSC付き |
1 | ||
| 82111-42E10 |
ACA3#..G,X VSC付き |
1 | ||
| 82111-42E42 |
ACA31,36..G,X |
1 | ||
| 82111-42E12 |
ACA31,36..G,X VSC付き |
1 | ||
| 82111-42E41 |
ACA3#..G,X |
1 | ||
| 82111-42E40 |
ACA3#..G,X |
1 | ||
| 82111-42E42 |
ACA31,36..G,X 品番ﾗﾍﾞﾙ=82111−42E42 |
1 | ||
| 82111-42E40 |
ACA3#..G,X 品番ﾗﾍﾞﾙ=82111−42E40 |
1 | ||
| 82111-42E11 |
ACA3#..G,X 品番ﾗﾍﾞﾙ=82111−42E11 |
1 | ||
| 82111-42E41 |
ACA3#..G,X 品番ﾗﾍﾞﾙ=82111−42E41 |
1 | ||
| 82111-42E12 |
ACA31,36..G,X 品番ﾗﾍﾞﾙ=82111−42E12 |
1 | ||
| 82111-42E10 |
ACA3#..G,X 品番ﾗﾍﾞﾙ=82111−42E10 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ACA31,36 |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA31,36 |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA31,36 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA31,36 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA31,36 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(0511- )ACA3#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

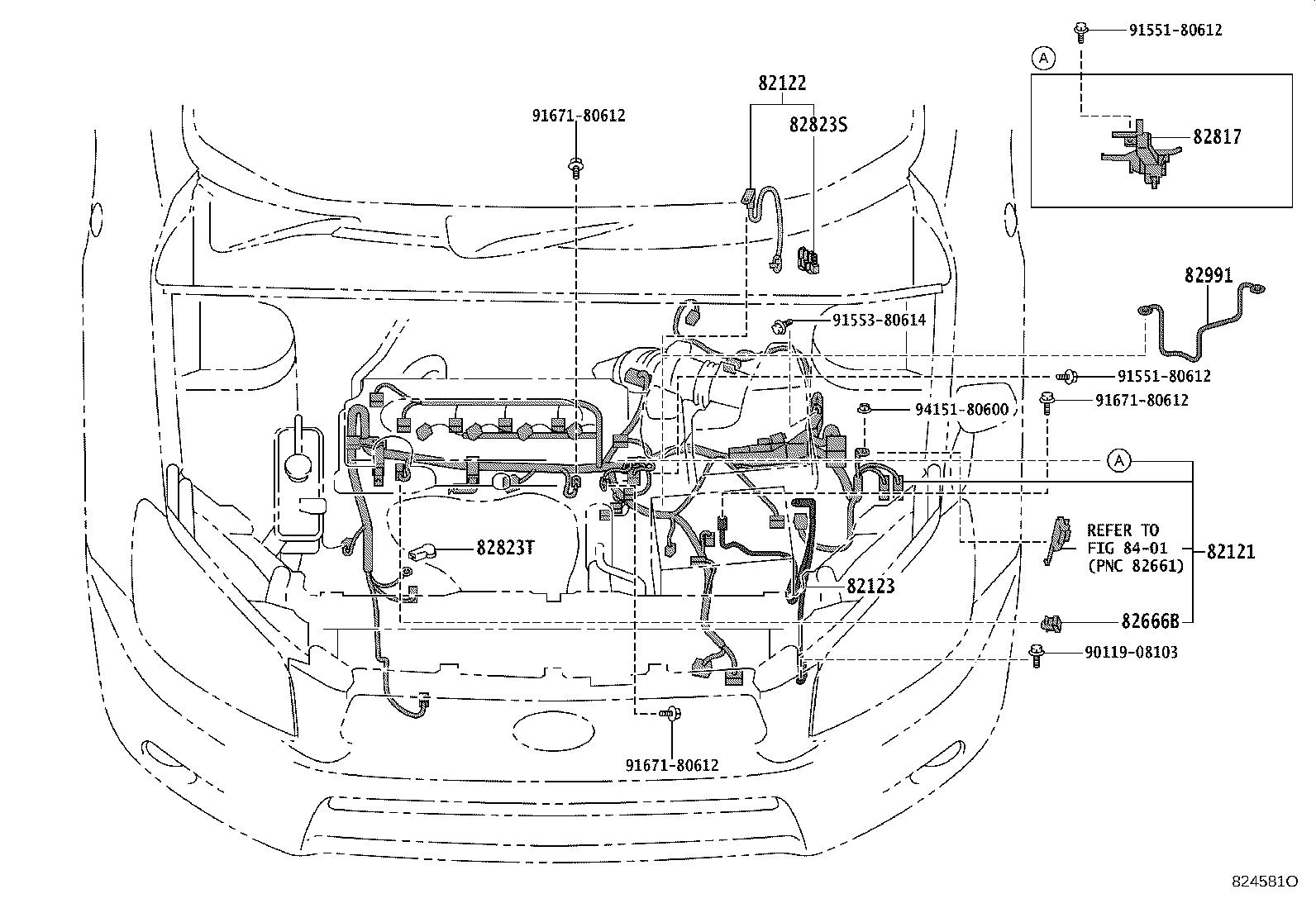

| 82121 - WIRE, ENGINE | ||||
| 82121-42A30 |
ACA31,36 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-42040 |
ACA31,36 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-42120 |
ACA31,36 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-42250 |
ACA31,36 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42480 |
ACA31,36 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
ACA31,36 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ACA31,36 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-42010 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 91551-80612 | ||||
| 91553-80614 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 9(0511- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

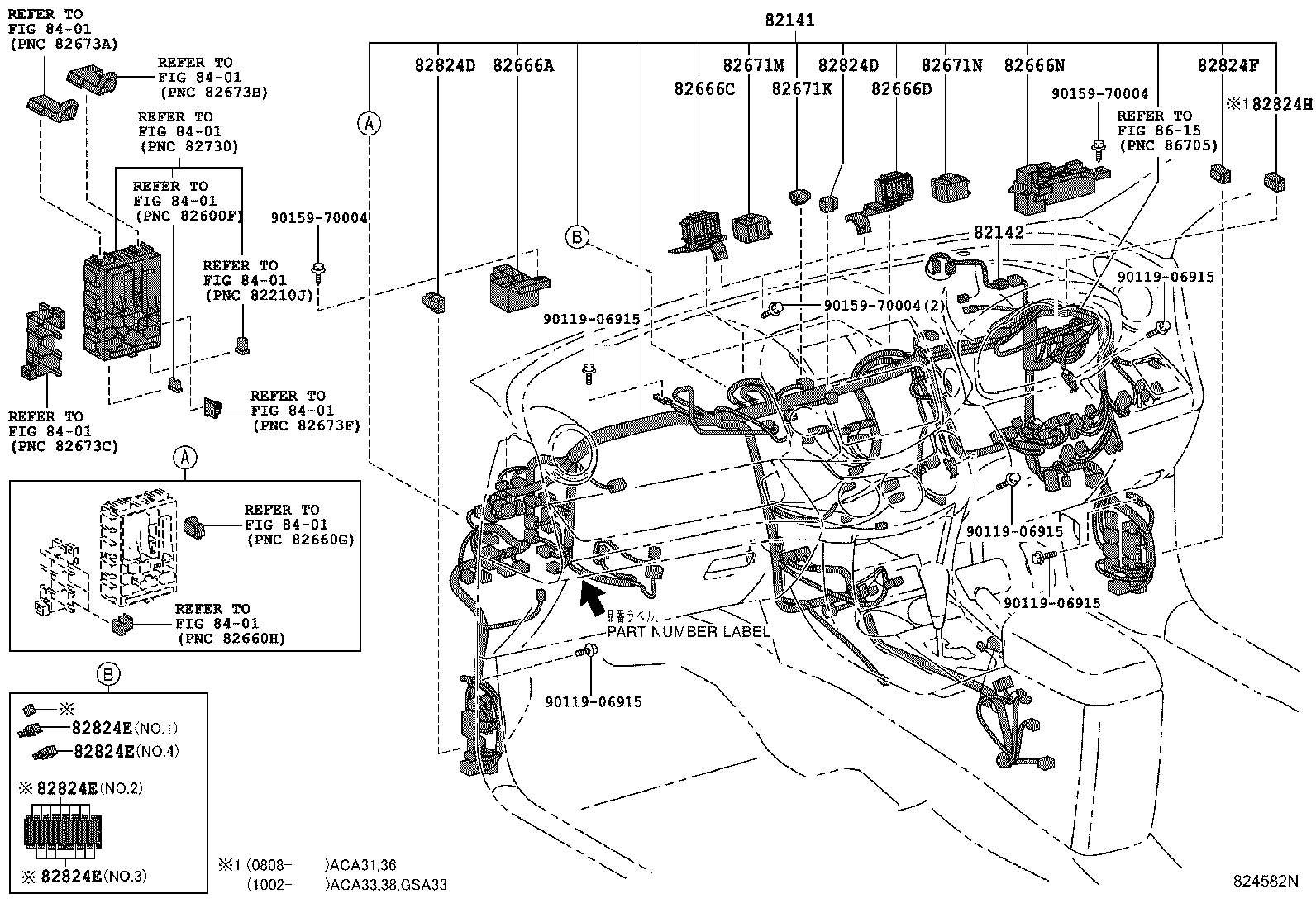

| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-42R20 |
ACA36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-42R10 |
ACA36..X |
1 | ||
| 82141-42R12 |
ACA36..X |
1 | ||
| 82141-42R21 |
ACA36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-42R11 |
ACA36..X |
1 | ||
| 82141-42R21 |
ACA36..X 品番ﾗﾍﾞﾙ=82141−42L61 OR 82141−42R21 |
1 | ||
| 82141-42R20 |
ACA36..X 品番ﾗﾍﾞﾙ=82141−42L60 OR 82141−42R20 |
1 | ||
| 82141-42R12 |
ACA36..X 品番ﾗﾍﾞﾙ=82141−42L52 OR 82141−42R12 |
1 | ||
| 82141-42R10 |
ACA36..X 品番ﾗﾍﾞﾙ=82141−42L50 OR 82141−42R10 |
1 | ||
| 82141-42R11 |
ACA36..X 品番ﾗﾍﾞﾙ=82141−42L51 OR 82141−42R11 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-42060 |
ACA31,36..S,X |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-42180 |
ACA31,36 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42231 |
ACA31,36 |
1 | ||
| 82666-42230 |
ACA31,36 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42240 |
ACA31,36 |
1 | ||
| 82666-42241 |
ACA31,36 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42190 |
ACA31,36 |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ACA31,36 |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-42070 |
ACA31,36 |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-42080 |
ACA31,36 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA31,36 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA31,36 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA31,36 NO.1 |
4 | ||
| 82824-42210 |
ACA31,36 NO.3 |
24 | ||
| 82824-42210 |
ACA3# NO.3 |
44 | ||
| 82824-42200 |
ACA3# NO.2 |
8 | ||
| 82824-42190 |
ACA31,36 NO.4 |
4 | ||
| 82824-42200 |
ACA31,36 NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA31,36 NO.1 |
4 | ||
| 82824-42210 |
ACA31,36 NO.3 |
24 | ||
| 82824-42210 |
ACA3# NO.3 |
44 | ||
| 82824-42200 |
ACA3# NO.2 |
8 | ||
| 82824-42190 |
ACA31,36 NO.4 |
4 | ||
| 82824-42200 |
ACA31,36 NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA31,36 NO.1 |
4 | ||
| 82824-42210 |
ACA31,36 NO.3 |
24 | ||
| 82824-42210 |
ACA3# NO.3 |
44 | ||
| 82824-42200 |
ACA3# NO.2 |
8 | ||
| 82824-42190 |
ACA31,36 NO.4 |
4 | ||
| 82824-42200 |
ACA31,36 NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA31,36 NO.1 |
4 | ||
| 82824-42210 |
ACA31,36 NO.3 |
24 | ||
| 82824-42210 |
ACA3# NO.3 |
44 | ||
| 82824-42200 |
ACA3# NO.2 |
8 | ||
| 82824-42190 |
ACA31,36 NO.4 |
4 | ||
| 82824-42200 |
ACA31,36 NO.2 |
28 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-28180 |
ACA36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8615 | ||||
ILLUST NO. 4 OF 9(0511- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

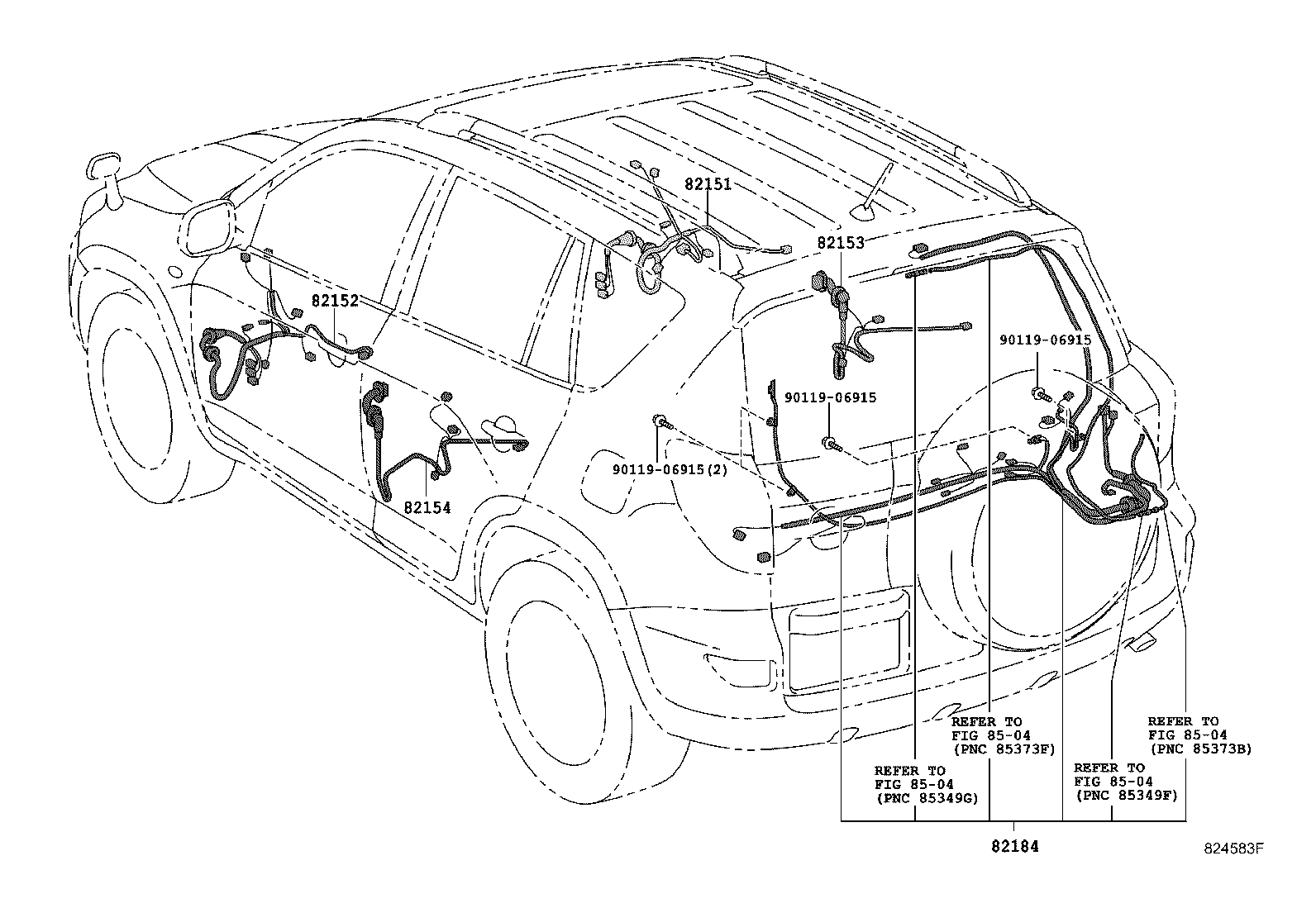

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-42A50 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82151-42A50 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82151-42A30 |
ACA31,36..S,X |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-42850 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82152-42830 |
ACA31,36..S,X |
1 | ||
| 82152-42850 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-42120 |
ACA31,36 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-42120 |
ACA31,36 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-42240 |
ACA31,36..X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82184-42300 |
ACA31,36..S,X |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF 9(0511- )
ﾌﾛｱ,ﾌﾚｰﾑ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

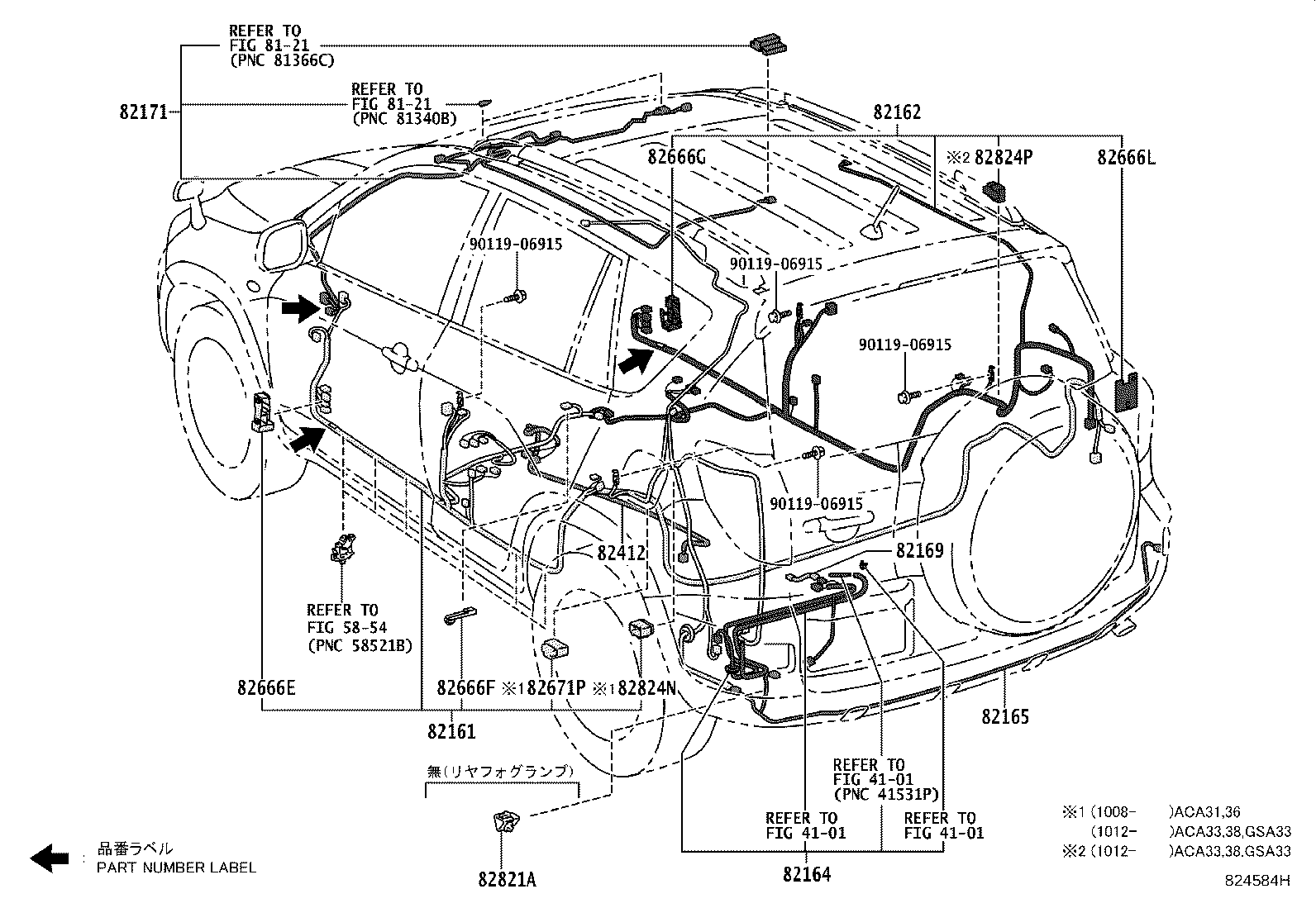

| 82161 - WIRE, FLOOR | ||||
| 82161-42D80 |
ACA31,36..S,X |
1 | ||
| 82161-42E10 |
ACA31,36..G,X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-42D80 |
ACA31,36..S,X 品番ﾗﾍﾞﾙ=82161−42D80 |
1 | ||
| 82161-42E10 |
ACA31,36..G,X 品番ﾗﾍﾞﾙ=82161−42E10 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-42080 |
ACA31,36..S,X |
1 | ||
| 82162-42110 |
ACA31,36..G,X SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-42110 |
ACA31,36..G,X 品番ﾗﾍﾞﾙ=82162−42110 |
1 | ||
| 82162-42080 |
ACA31,36..S,X 品番ﾗﾍﾞﾙ=82162−42080 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-42030 |
ACA36 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-42010 |
ACA31,36 寒冷地仕様 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-42450 |
ACA3#,GSA33..240S,350S,G,S ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-42410 |
ACA31,36 |
1 | ||
| 82171-42450 |
ACA3#,GSA33..240S,350S,G,S 品番ﾗﾍﾞﾙ=82171−42450 |
1 | ||
| 82171-42410 |
ACA31,36 品番ﾗﾍﾞﾙ=82171−42410 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-42030 |
ACA31,36 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42200 |
ACA31,36 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42270 |
ACA31,36 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42210 |
ACA31,36 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42280 |
ACA31,36 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-42030 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 5854 | ||||
| 8121 | ||||
ILLUST NO. 7 OF 9(0511- )

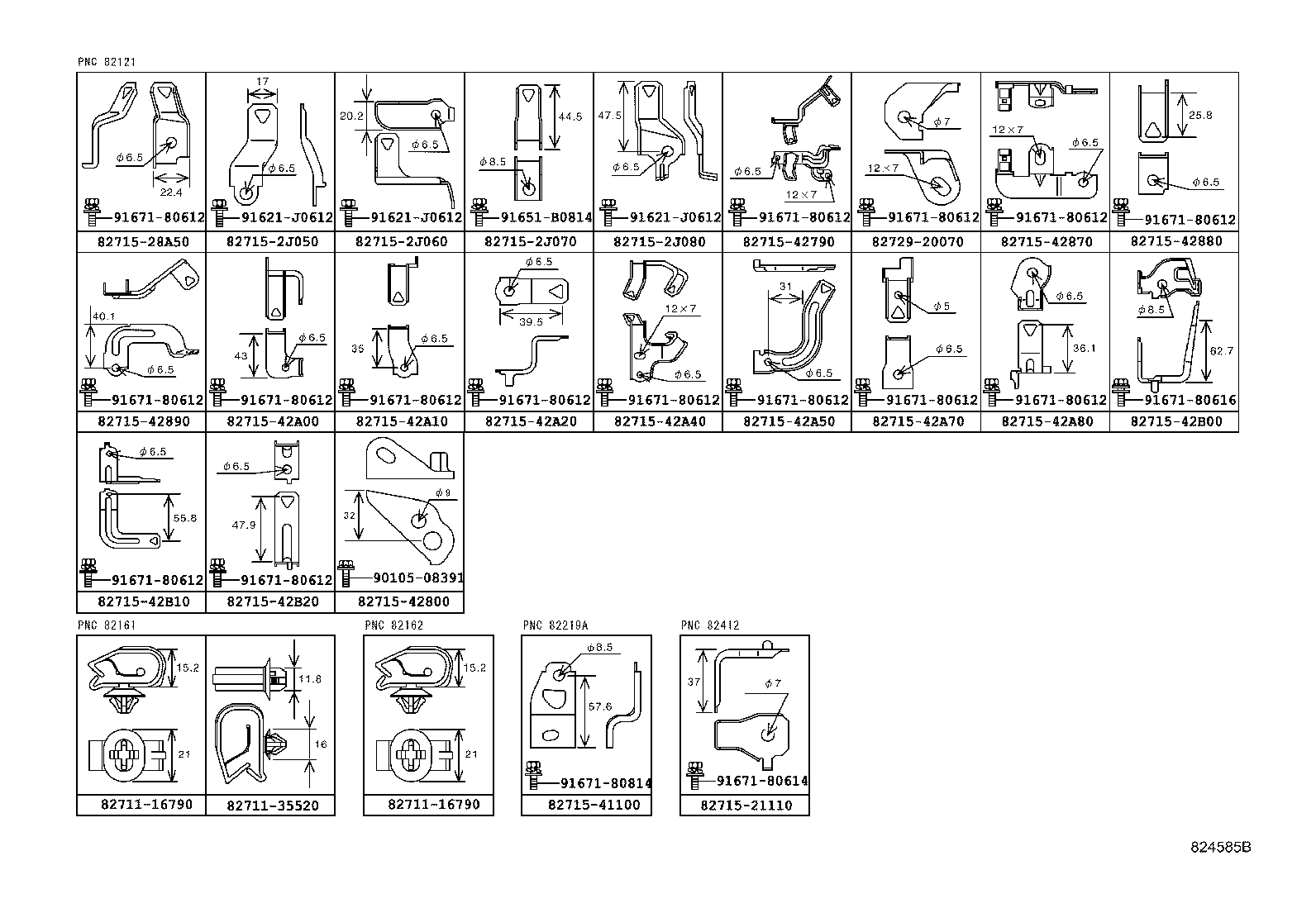

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-35520 | ||||
| 82715-21110 | ||||
| 82715-28A50 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-41100 | ||||
| 82715-42790 | ||||
| 82715-42800 | ||||
| 82715-42870 | ||||
| 82715-42880 | ||||
| 82715-42890 | ||||
| 82715-42A00 | ||||
| 82715-42A10 | ||||
| 82715-42A20 | ||||
| 82715-42A40 | ||||
| 82715-42A50 | ||||
| 82715-42A70 | ||||
| 82715-42A80 | ||||
| 82715-42B00 | ||||
| 82715-42B10 | ||||
| 82715-42B20 | ||||
| 82729-20070 | ||||
| 90105-08391 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80814 | ||||
ILLUST NO. 9 OF 9(0511- )240S,350S,G,S,X

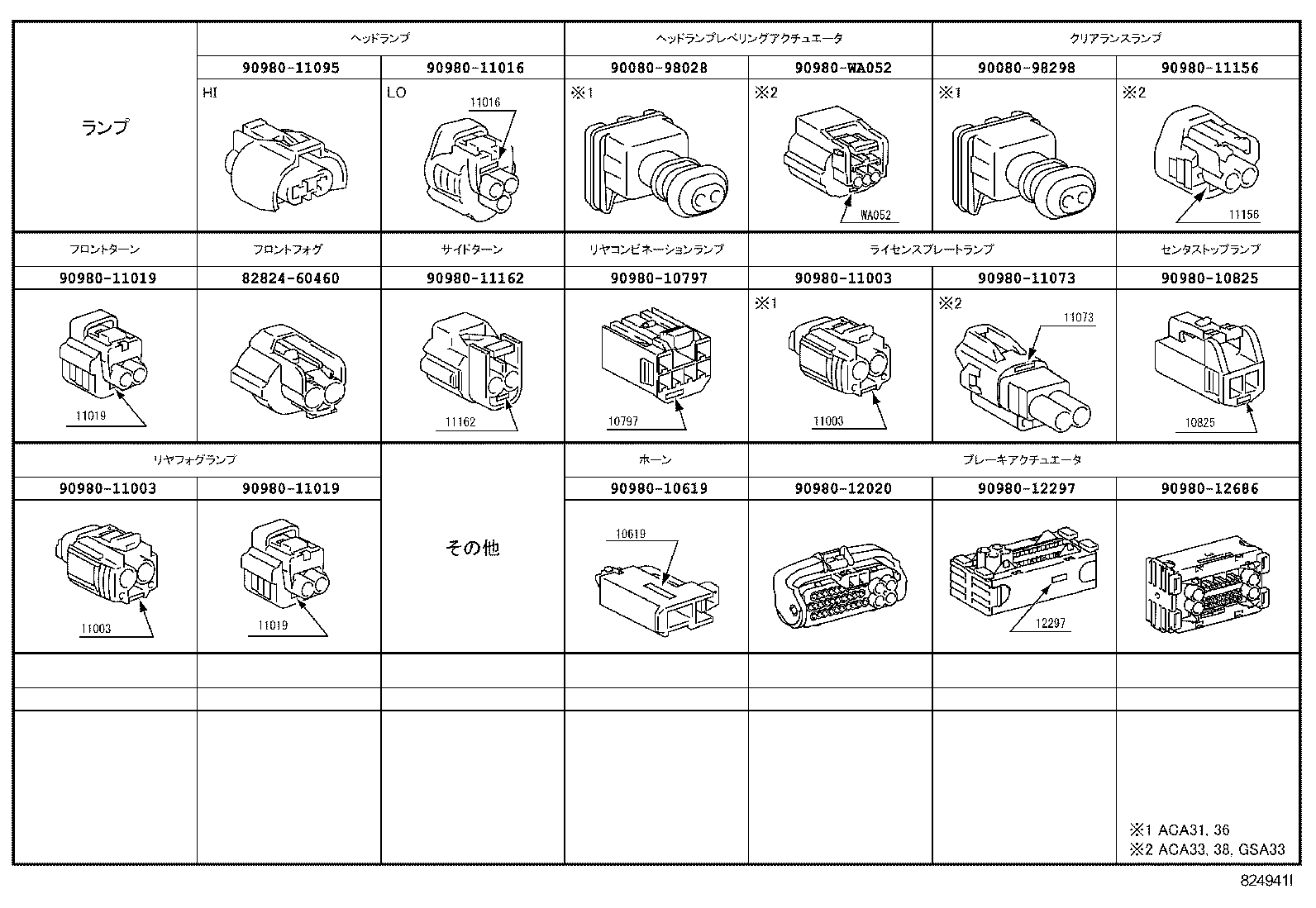

ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90080-98298 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10825 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11073 | ||||
| 90980-11095 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-12020 | ||||
| 90980-12297 | ||||
| 90980-12686 | ||||
| 90980-WA052 | ||||
ILLUST NO. 8 OF 9(0511- )
ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

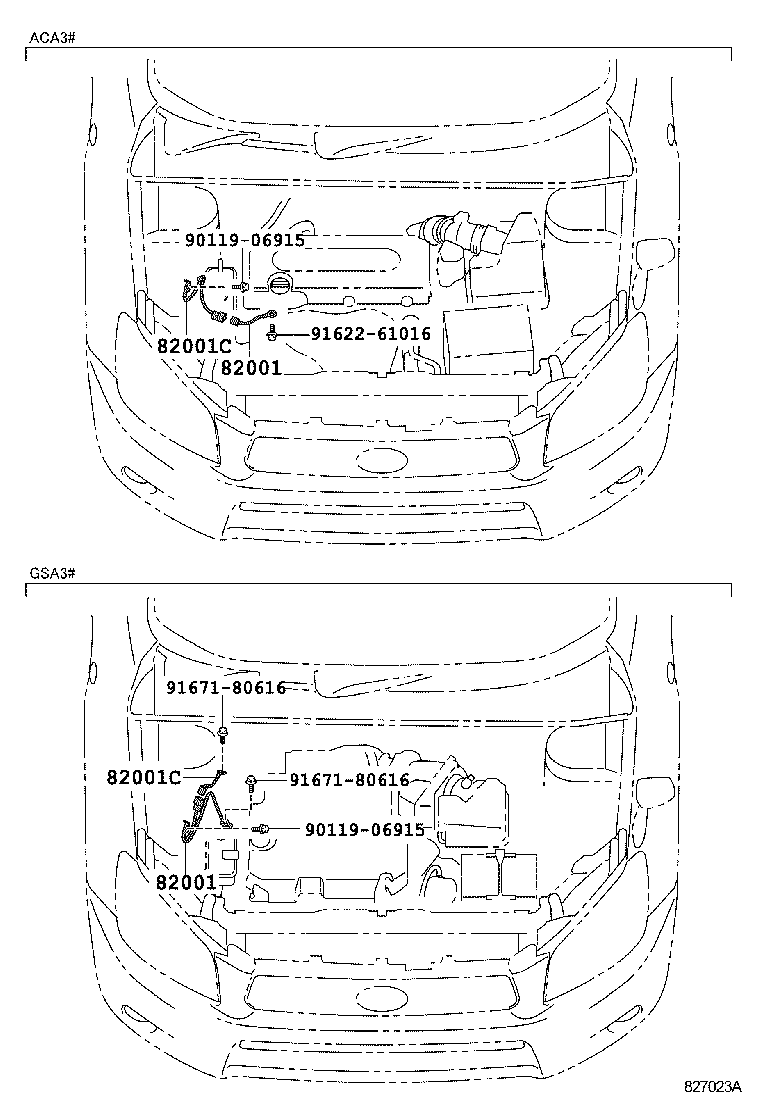

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACA31,36 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACA31,36 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07437 |
ACA31,36 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07437 |
ACA31,36 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91622-61016 | ||||
| 91671-80616 | ||||
