ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

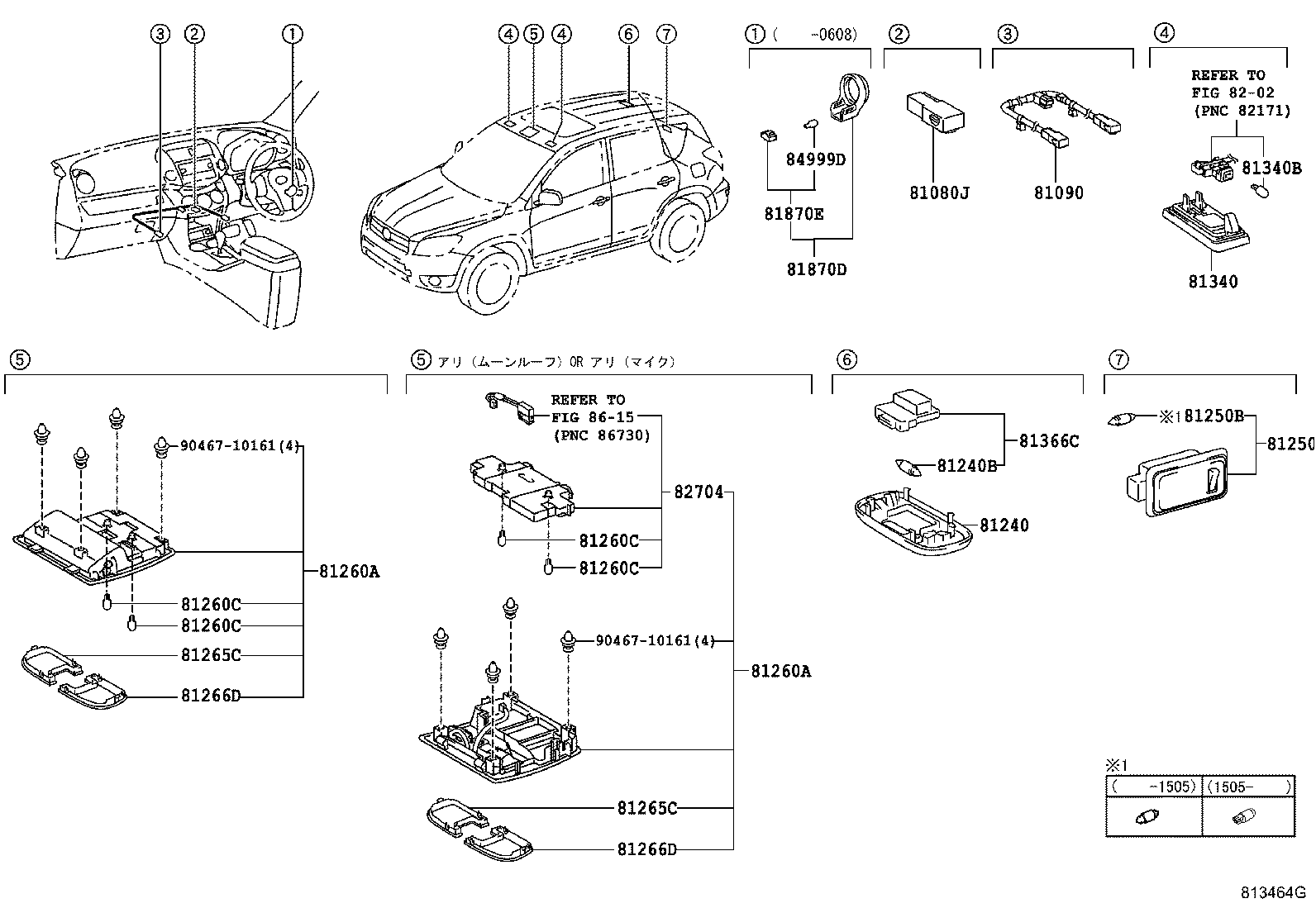

Click highlighted areas on diagram

diagram 81080J 81090 81240 81240B 81250 81250B 81260A 81260A 81260C 81260C 81260C 81260C 81265C 81265C 81266D 81266D 81340 81340B 81366C 81870D 81870E 8202 82704 84999D 8615 9046710161 9046710161
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-42010

ACA31,36

 1
81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81090-42010

ACA31,36..S,X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-52040B0

ACA31,36

GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ACA31,36

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ACA31,36

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ACA31,36

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-42020B1

ACA3#,GSA33..240S,350S,G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
81260-42010B1

ACA3#,GSA33

GRAY,TRIM1#

 1
81260-42051B0

ACA31,36..G,S

ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI,GRAY,TRIM1#

 1
81260-42011B1

ACA31,36

GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-42020B1

ACA3#,GSA33..240S,350S,G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
81260-42010B1

ACA3#,GSA33

GRAY,TRIM1#

 1
81260-42051B0

ACA31,36..G,S

ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI,GRAY,TRIM1#

 1
81260-42011B1

ACA31,36

GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA31,36

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA31,36

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA31,36

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA31,36

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-42020

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り

 1
81265-42010

ACA31,36

 1
81265C - LENS, MAP LAMP, NO.1
81265-42020

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り

 1
81265-42010

ACA31,36

 1
81266D - LENS, MAP LAMP, NO.2
81266-42020

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り

 1
81266-42010

ACA31,36

 1
81266D - LENS, MAP LAMP, NO.2
81266-42020

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り

 1
81266-42010

ACA31,36

 1
81340 - LAMP ASSY, VANITY
81340-30100B1

ACA31,36

GRAY,TRIM1#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ACA31,36

12V 8W

 2
81366C - BASE, ROOM LAMP SWITCH
81366-68010

ACA31,36

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-42020

ACA3#..S,X

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01030

ACA3#..S,X

14V1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き

 1
82704 - BLOCK, OVERHEAD JUNCTION
82704-42020B0

ACA3#,GSA33..240S,350S,G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
84999D - SOCKET, KEY CYLINDER LAMP
84999-10250

ACA3#..S,X

 1
Common parts
90467-10161
Linked diagrams
8202
8615
