ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA31,36

Click highlighted areas on diagram

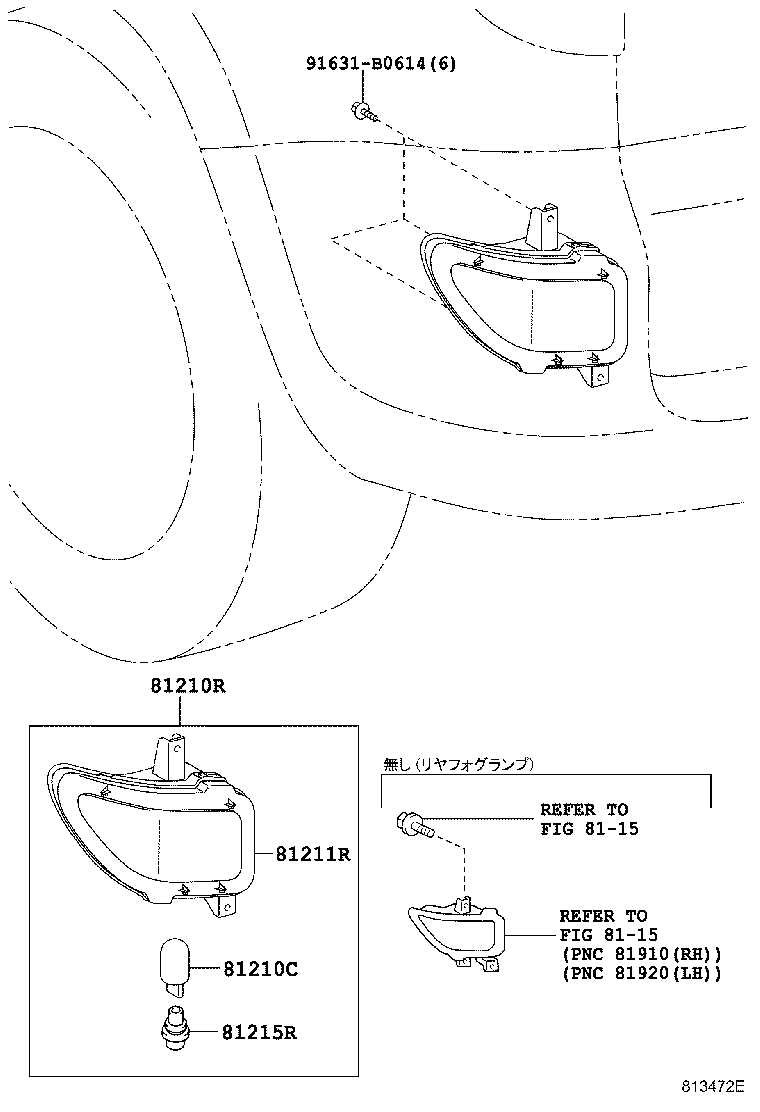

diagram 8115 8115 81210C 81210R 81211R 81215R 91631B0614
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-13043

ACA31,36

12V 21W,寒冷地仕様

 2
81210R - LAMP ASSY, REAR FOG
81490-42010

ACA31,36

寒冷地仕様,左側

 1
81480-42010

ACA31,36

寒冷地仕様,右側

 1
81211R - LENS, REAR FOG LAMP
81457-42010

ACA31,36

寒冷地仕様,右側

 1
81456-42010

ACA31,36

寒冷地仕様,左側

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
81515-52270

ACA31,36

寒冷地仕様

 2
Common parts
91631-B0614
Linked diagrams
8115
