ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0808)ACA31,36

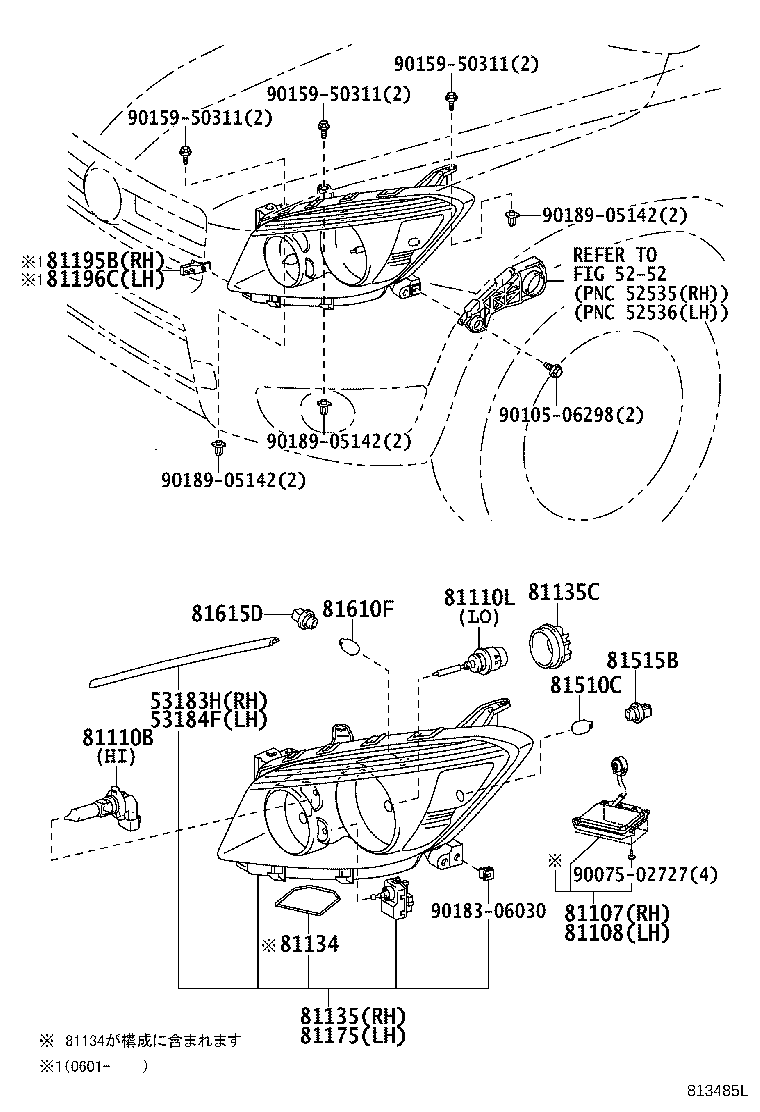

Click highlighted areas on diagram

diagram 5252 53183H 53184F 81107 81108 81110B 81110L 81134 81135 81135C 81175 81195B 81196C 81510C 81515B 81610F 81615D 9007502727 9010506298 9015950311 9015950311 9015950311 9018306030 9018905142 9018905142 9018905142
Part # Description Qty Price
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-52680

ACA31,36

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-52680

ACA31,36

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81041

ACA31,36

12V 65W

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20018

ACA31,36

45V 35W

 2
81134 - GASKET, HEADLAMP
90075-68007

ACA31,36

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-42340

ACA31,36

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-52480

ACA31,36

 2
81175 - UNIT ASSY, HEADLAMP, LH
81185-42340

ACA31,36

 1
81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195-42020

ACA31,36

 1
81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81196-42020

ACA31,36

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ACA31,36

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81515-42050

ACA31,36

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACA31,36

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81138-52570

ACA31,36

 2
Common parts
90075-02727
90105-06298
90159-50311
90183-06030
90189-05142
Linked diagrams
5252
