ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

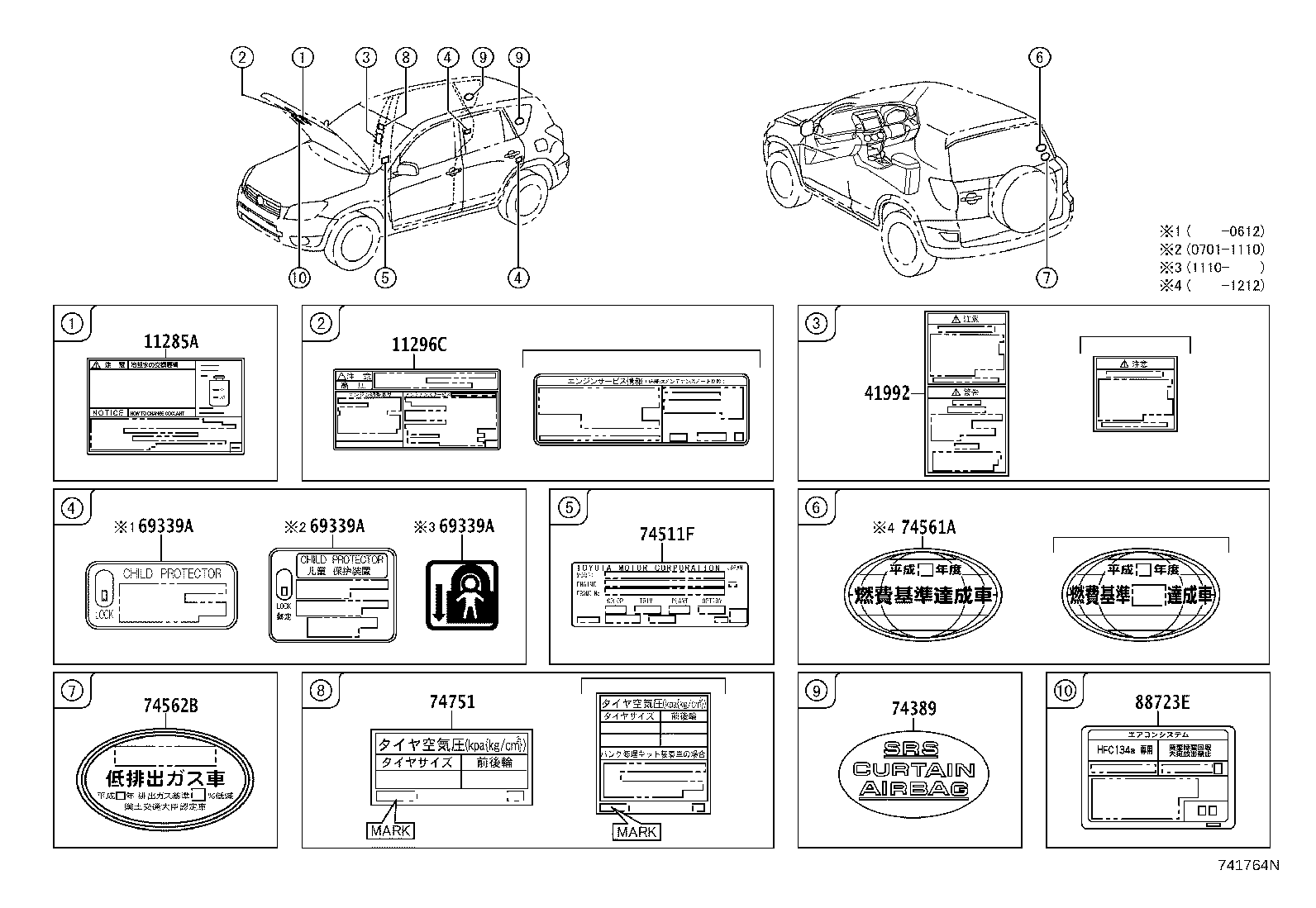

ILLUST NO. 1 OF 3(0511- )

Click highlighted areas on diagram

diagram 11285A 11296C 41992 69339A 69339A 69339A 74389 74511F 74561A 74562B 74751 88723E
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-28010

2AZFE,2GRFE..ACA3#,GSA33

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-28110

2AZFE..ACA31,36

 1
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-12010

ACA3#

 2
69339-48010

ACA31,36

 2
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-12010

ACA3#

 2
69339-48010

ACA31,36

 2
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-12010

ACA3#

 2
69339-48010

ACA31,36

 2
74389 - LABEL, AIR BAG CAUTION
74389-42010B0

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GRAY,TRIM1#

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

ACA3#,GSA33

*111

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52010

ACA36

平成22年度 燃費基準達成車

 1
74562B - LABEL, EMISSION INFORMATION
74562-47010

ACA31,36

H17 排出ｶﾞｽ75%低減

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-42220

ACA31,36..G,X

MARK=42220

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-12010

ACA31,36

 1

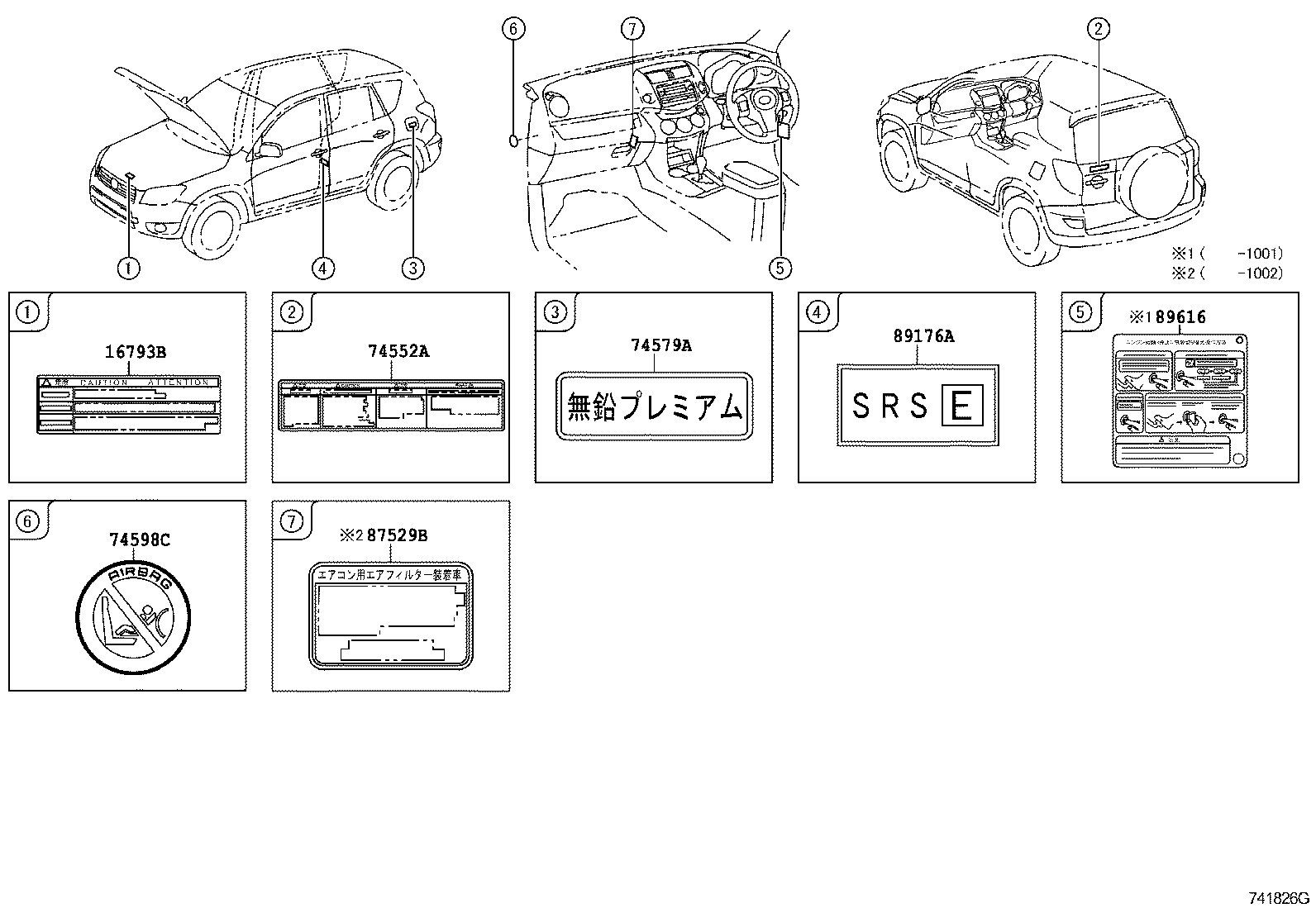

ILLUST NO. 3 OF 3(0511- )

Click highlighted areas on diagram

diagram 16793B 74552A 74579A 74598C 87529B 89176A 89616
Part # Description Qty Price
16793B - LABEL, COOLING FAN INFORMATION
16793-28020

2AZFE..ACA31,36

 1
74552A - LABEL, SAFETY CAUTION
74552-42010

ACA31,36

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ACA3#,GSA33

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-20010

ACA31,36

 1
89616 - LABEL, PUSH START INFORMATION
89616-52010

ACA31,36..X

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
