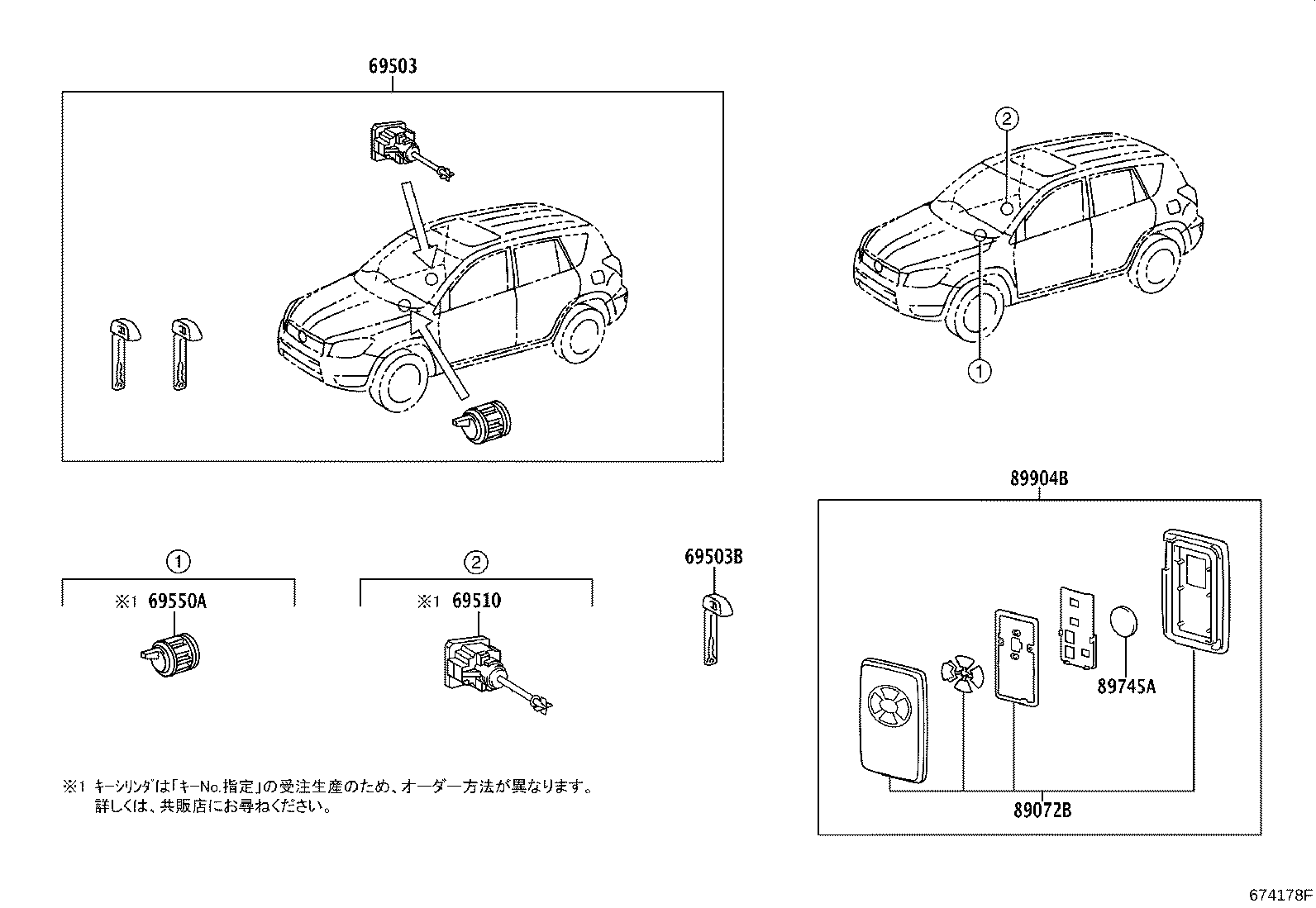

ACA36W-AWXXK (2005)
Toyota Rav4/Vanguard
(0511- )
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-42540 |
ACA3#..S,X |
1 | ||
| 69005-42541 |
ACA31,36..S,X |
1 | ||
| 69005-42410 |
ACA3#..S,X |
1 | ||
| 69005-42420 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69005-42420 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69005-42540 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-52110 |
ACA3#..X ﾏｽﾀｰｷｰ,W(*68),盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞAﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ &@ｻｲﾄﾞ |
2 | ||
| 69515-52110 |
ACA31,36..X ﾏｽﾀｰｷｰ,W(*68),ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯO−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-52220 |
ACA31,36..S,X |
1 | ||
| 69510-52230 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69510-52230 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30150 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69550-30150 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69550-21030 |
ACA31,36..S,X |
1 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-28550 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89072-28550 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89745-48030 |
ACA31,36..S,X |
1 | ||
| 89745-52020 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-42040 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ,ｼﾙﾊﾞｰ |
1 | ||
| 89904-42040 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,ｼﾙﾊﾞｰ |
1 | ||

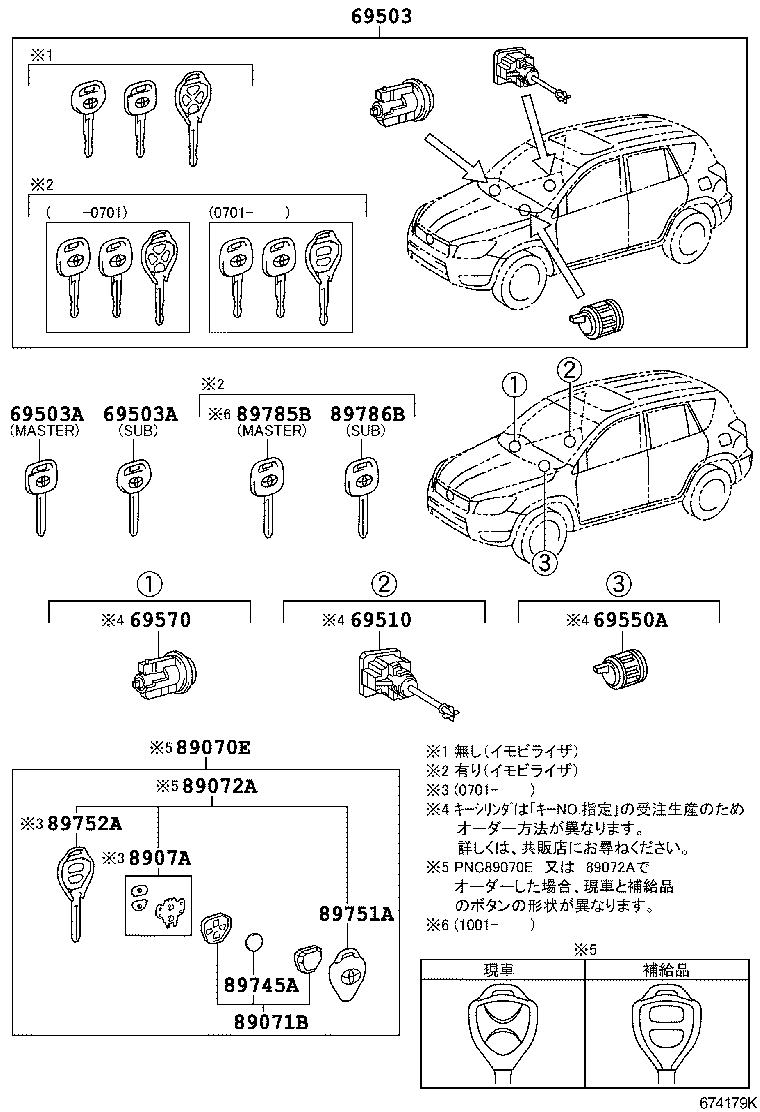

(0511- )240S,350S,G,S,X
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-42540 |
ACA3#..S,X |
1 | ||
| 69005-42541 |
ACA31,36..S,X |
1 | ||
| 69005-42410 |
ACA3#..S,X |
1 | ||
| 69005-42420 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69005-42420 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69005-42540 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00200 |
ACA3#..S,X ｻﾌﾞｷｰ,*68付き |
1 | ||
| 90999-00199 |
ACA3#..S,X ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00200 |
ACA3#..S,X ｻﾌﾞｷｰ,*68付き |
1 | ||
| 90999-00199 |
ACA3#..S,X ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-52220 |
ACA31,36..S,X |
1 | ||
| 69510-52230 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69510-52230 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30150 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69550-30150 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 69550-21030 |
ACA31,36..S,X |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-52100 |
ACA31,36..S,X |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-42520 |
ACA3#..S,X |
1 | ||
| 89070-42610 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ) |
1 | ||
| 89070-42610 |
ACA3#..S,X |
1 | ||
| 89070-42650 |
ACA31,36..S,X |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-28150 |
ACA31,36..S,X |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-12100 |
ACA3#..S,X 無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89072-28300 |
ACA31,36..S,X 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89072-28300 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-28010 |
ACA31,36..S,X |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
ACA31,36..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 &ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89745-48030 |
ACA31,36..S,X |
1 | ||
| 89745-52020 |
ACA3#..X 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-22050 |
ACA3#..S,X |
1 | ||
| 89751-28070 |
ACA31,36..S,X |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-28050 |
ACA31,36..S,X |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60170 |
ACA31,36..S,X ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89786-60170 |
ACA3#..X ﾌﾞﾗﾝｸｷｰ,盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞｰ) |
1 | ||
