ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0511- )

Click highlighted areas on diagram

diagram 67709B 67750 67750A 67937B 67937C 67937C 67938A 67939B 67939C 9356014010
Part # Description Qty Price
67709B - POCKET SUB-ASSY, BACK DOOR TRIM
67709-42020B0

ACA31,36

DK.GRAY,TRIM1#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-42020B0

ACA31,36

DK.GRAY,TRIM1#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-09206

ACA31,36

 13
67937B - GARNISH, BACK DOOR SIDE, RH
67937-42030B0

ACA31,36

GRAY,TRIM1#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

ACA31,36

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

ACA31,36

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-42030B0

ACA31,36

GRAY,TRIM1#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-42020B0

ACA31,36

GRAY,TRIM1#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161

ACA31,36

 4
Common parts
93560-14010

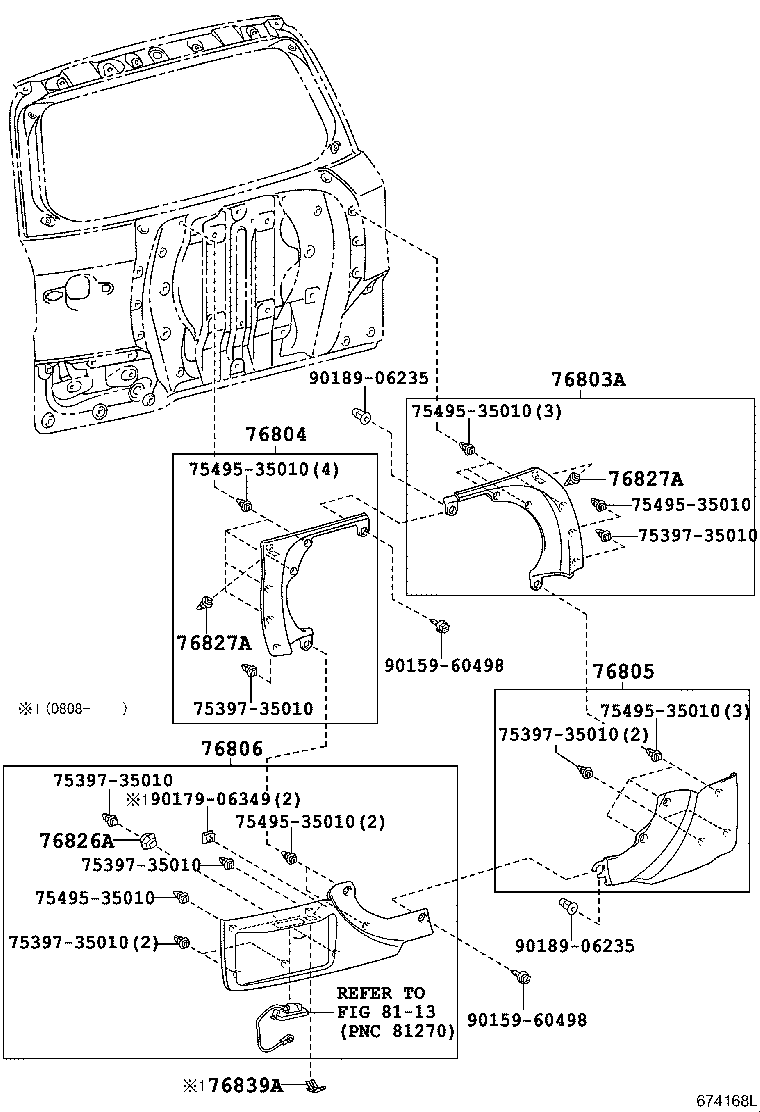

ILLUST NO. 3 OF 3(0511- )240S,350S,G,S,X

Click highlighted areas on diagram

ｱﾘ(ｽﾍﾟｱﾀｲﾔｷｬﾘｱ)

diagram 7539735010 7539735010 7539735010 7539735010 7539735010 7539735010 7549535010 7549535010 7549535010 7549535010 7549535010 7549535010 76803A 76804 76805 76806 76826A 76827A 76827A 76839A 8113 9015960498 9015960498 9017906349 9018906235 9018906235
Part # Description Qty Price
76803A - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER RH
76803-42040B1

ACA31,36

SILVER ME.,1F7

 1
76803-42040A1

ACA31,36

WHITE PEARL CS.,070

 1
76803-42040D0

ACA31,36

RED M.M.,3R3

 1
76803-42040C0

ACA31,36

BLACK,202

 1
76803-42040G0

ACA31,36

DK.GREEN MC.,6T3

 1
76803-42040J1

ACA31,36

DK.BLUE MC.,8S6

 1
76803-42040J0

ACA31,36

GRAYISH BLUE ME.,8R3

 1
76803-42040G1

ACA31,36

LT.GREEN ME.,6T6

 1
76804 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER LH
76804-42010A1

ACA31,36

WHITE PEARL CS.,070

 1
76804-42010C0

ACA31,36

BLACK,202

 1
76804-42010D0

ACA31,36

RED M.M.,3R3

 1
76804-42010G0

ACA31,36

DK.GREEN MC.,6T3

 1
76804-42010J1

ACA31,36

DK.BLUE MC.,8S6

 1
76804-42010B1

ACA31,36

SILVER ME.,1F7

 1
76804-42010G1

ACA31,36

LT.GREEN ME.,6T6

 1
76804-42010J0

ACA31,36

GRAYISH BLUE ME.,8R3

 1
76805 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER RH
76805-42010D0

ACA31,36

RED M.M.,3R3

 1
76805-42010G1

ACA31,36

LT.GREEN ME.,6T6

 1
76805-42010G0

ACA31,36

DK.GREEN MC.,6T3

 1
76805-42010A1

ACA31,36

WHITE PEARL CS.,070

 1
76805-42010C0

ACA31,36

BLACK,202

 1
76805-42010J1

ACA31,36

DK.BLUE MC.,8S6

 1
76805-42010B1

ACA31,36

SILVER ME.,1F7

 1
76805-42010J0

ACA31,36

GRAYISH BLUE ME.,8R3

 1
76806 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH
76806-42020B0

ACA31,36

SILVER ME.,1F7

 1
76806-42020G1

ACA31,36

LT.GREEN ME.,6T6

 1
76806-42020G0

ACA31,36

DK.GREEN MC.,6T3

 1
76806-42020J0

ACA31,36

GRAYISH BLUE ME.,8R3

 1
76806-42020A0

ACA31,36

WHITE PEARL CS.,070

 1
76806-42020C0

ACA31,36

BLACK,202

 1
76806-42020D0

ACA31,36

RED M.M.,3R3

 1
76806-42020J1

ACA31,36

DK.BLUE MC.,8S6

 1
76826A - RETAINER, BACK DOOR GARNISH, NO.1
76826-42120

ACA31,36

 1
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-42020

ACA31,36

 2
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-42020

ACA31,36

 2
Common parts
75397-35010
75495-35010
90159-60498
90179-06349
90189-06235
Linked diagrams
8113

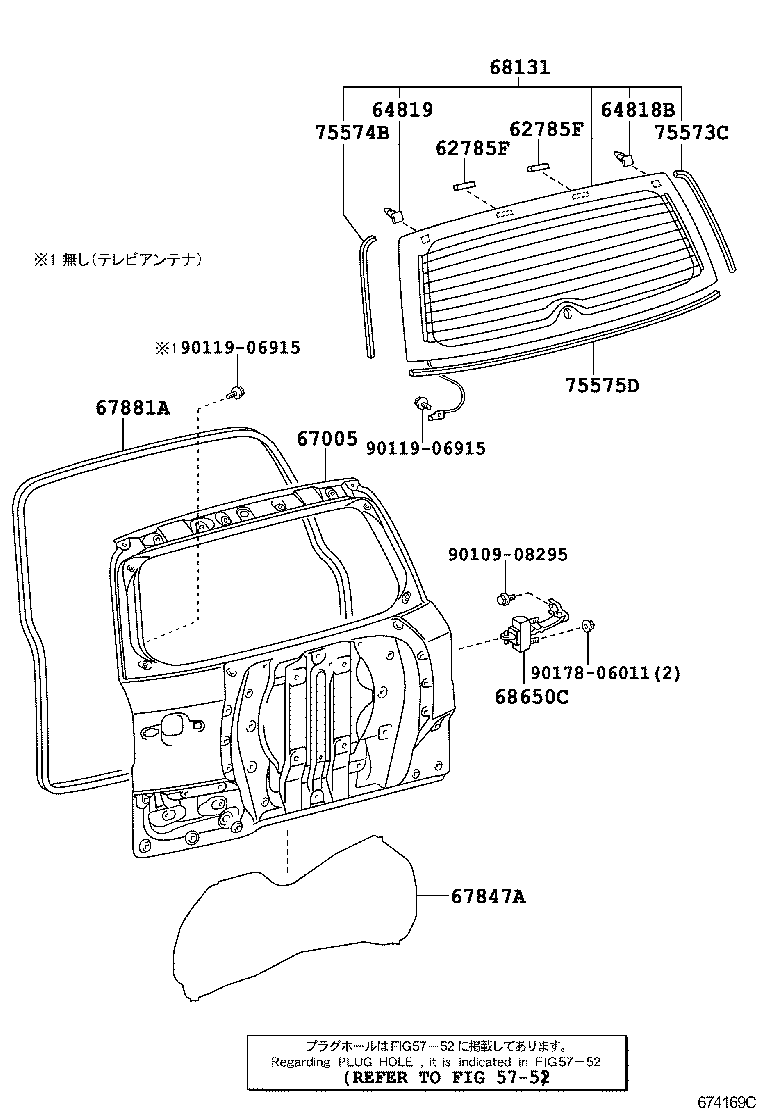

ILLUST NO. 2 OF 3(0511- )240S,350S,G,S,X

Click highlighted areas on diagram

ｱﾘ(ｽﾍﾟｱﾀｲﾔｷｬﾘｱ)

diagram 5752 62785F 62785F 64818B 64819 67005 67847A 67881A 68131 68650C 75573C 75574B 75575D 9010908295 9011906915 9011906915 9017806011
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-16030

ACA31,36

 2
62785F - SPACER, BACK DOOR GLASS
62785-16030

ACA31,36

 2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-42030

ACA31,36

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-42030

ACA31,36

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-42341

ACA3#

 1
67005-42342

ACA31,36

 1
67005-42340

ACA3#

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-42030

ACA31,36

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-42040

ACA31,36

 1
68131 - GLASS, BACK DOOR
68105-42120

ACA31,36..G,S

*EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−AM/FM,CD,MD,NAVI

 1
68105-42110

ACA31,36..G,S

*EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68105-42100

ACA31,36..X

*UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68650C - CHECK ASSY, BACK DOOR, RH
68650-42071

ACA31,36

 1
68650-42070

ACA3#

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-42040

ACA31,36

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-42020

ACA31,36

 1
75575D - MOULDING, BACK WINDOW, LOWER
75575-42020

ACA31,36

 1
Common parts
90109-08295
90119-06915
90178-06011
Linked diagrams
5752
