ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

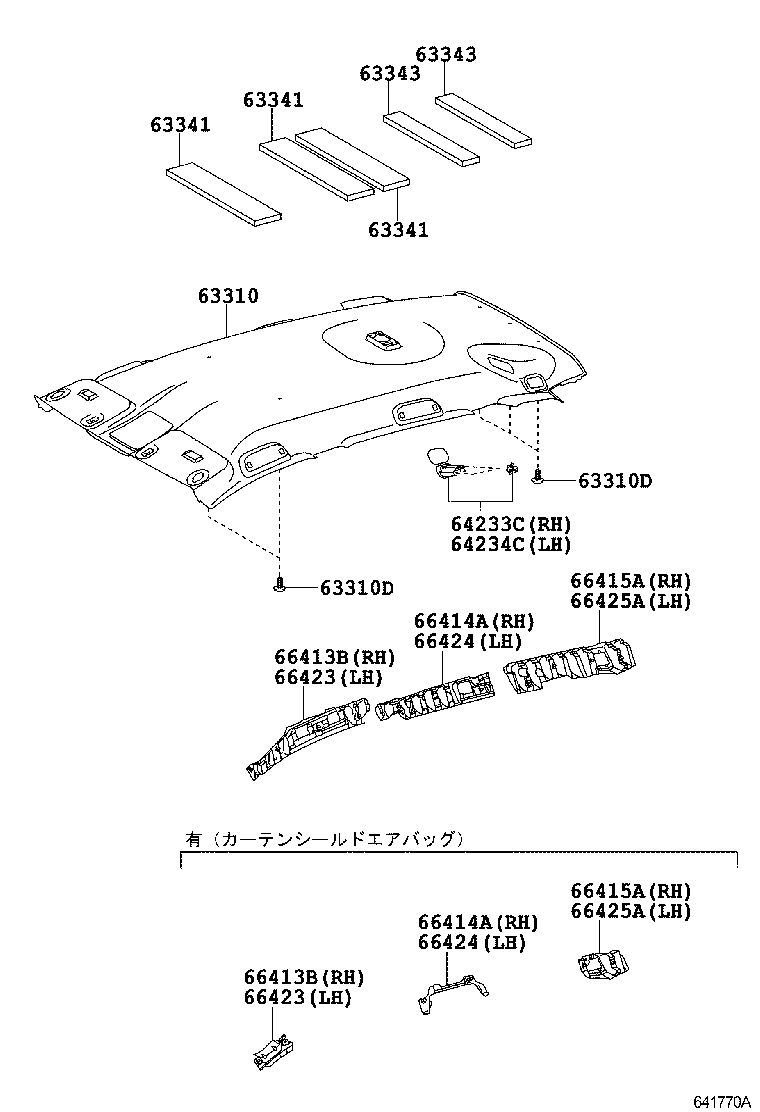

(0511- )ACA31,36

Click highlighted areas on diagram

diagram 63310 63310D 63310D 63341 63341 63341 63343 63343 64233C 64234C 66413B 66413B 66414A 66414A 66415A 66415A 66423 66423 66424 66424 66425A 66425A
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-42290B0

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
63310-42281B0

ACA31,36

GRAY,TRIM1#

 1
63310-42280B0

ACA3#

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164B6

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 3
90467-05164B6

ACA31,36

GRAY,TRIM1#

 5
63310D - CLIP, ROOF HEADLINING
90467-05164B6

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 3
90467-05164B6

ACA31,36

GRAY,TRIM1#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-42020

ACA31,36

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-42020

ACA31,36

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-42020

ACA31,36

 3
63343 - PAD, ROOF SILENCER, NO.3
63343-42010

ACA31,36

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-42010

ACA31,36

 2
64233C - HOOK, ROOM PARTITION NET, REAR RH
64233-42030B0

ACA31,36

GRAY,TRIM1#

 1
64234C - HOOK, ROOM PARTITION NET, REAR LH
64234-42030B0

ACA31,36

GRAY,TRIM1#

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66413-42120

ACA31,36

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66413-42120

ACA31,36

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66414-42110

ACA31,36

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66414-42110

ACA31,36

 1
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-42060

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66415-42050

ACA31,36

 1
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-42060

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66415-42050

ACA31,36

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66423-42120

ACA31,36

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66423-42120

ACA31,36

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-42110

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66424-42090

ACA31,36

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-42110

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66424-42090

ACA31,36

 1
66425A - SPACER, SIDE RAIL, REAR NO.2 LH
66425-42030

ACA31,36

 1
66425-42040

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66425A - SPACER, SIDE RAIL, REAR NO.2 LH
66425-42030

ACA31,36

 1
66425-42040

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1

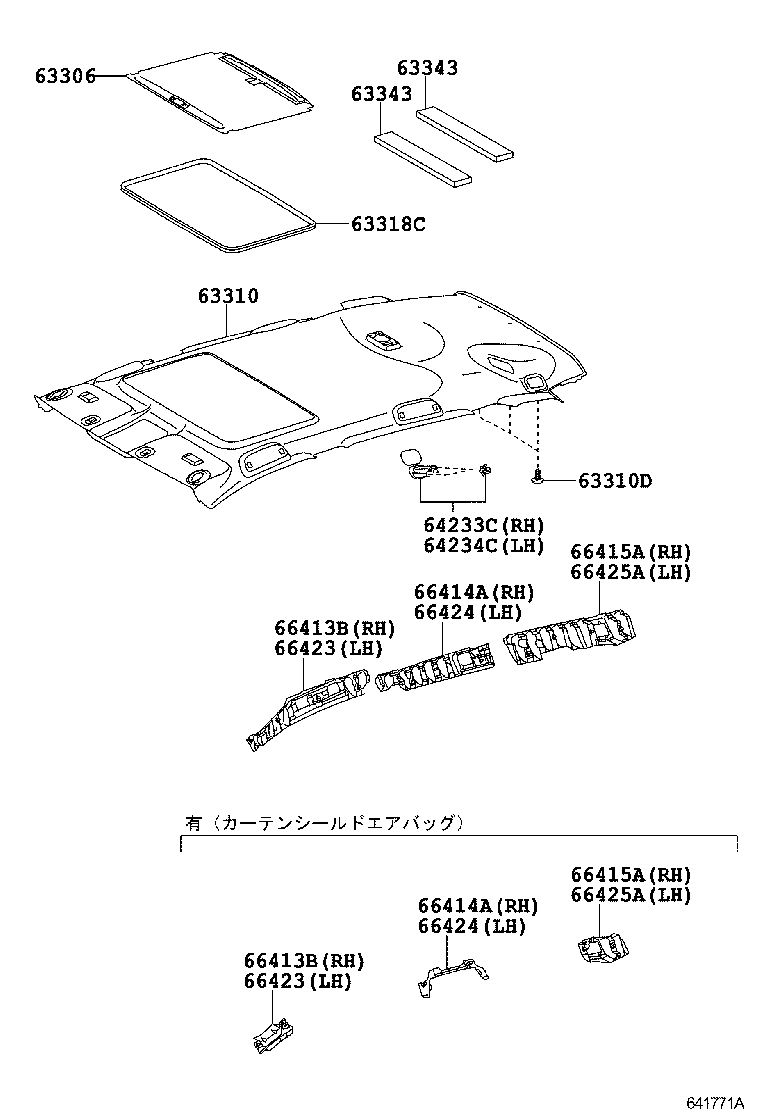

(0511- )ACA31,36

Click highlighted areas on diagram

ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

diagram 63306 63310 63310D 63318C 63343 63343 64233C 64234C 66413B 66413B 66414A 66414A 66415A 66415A 66423 66423 66424 66424 66425A 66425A
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-42040B0

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-42290B0

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
63310-42281B0

ACA31,36

GRAY,TRIM1#

 1
63310-42280B0

ACA3#

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164B6

ACA31,36..G,S

ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 3
90467-05164B6

ACA31,36

GRAY,TRIM1#

 5
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-48011B3

ACA31,36..G,S

長さ=2374,ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-42010

ACA31,36

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-42010

ACA31,36

 2
64233C - HOOK, ROOM PARTITION NET, REAR RH
64233-42030B0

ACA31,36

GRAY,TRIM1#

 1
64234C - HOOK, ROOM PARTITION NET, REAR LH
64234-42030B0

ACA31,36

GRAY,TRIM1#

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66413-42120

ACA31,36

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66413-42120

ACA31,36

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66414-42110

ACA31,36

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66414-42110

ACA31,36

 1
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-42060

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66415-42050

ACA31,36

 1
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-42060

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66415-42050

ACA31,36

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66423-42120

ACA31,36

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-42130

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66423-42120

ACA31,36

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-42110

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66424-42090

ACA31,36

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-42110

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66424-42090

ACA31,36

 1
66425A - SPACER, SIDE RAIL, REAR NO.2 LH
66425-42030

ACA31,36

 1
66425-42040

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
66425A - SPACER, SIDE RAIL, REAR NO.2 LH
66425-42030

ACA31,36

 1
66425-42040

ACA31,36

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
