ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA31,36

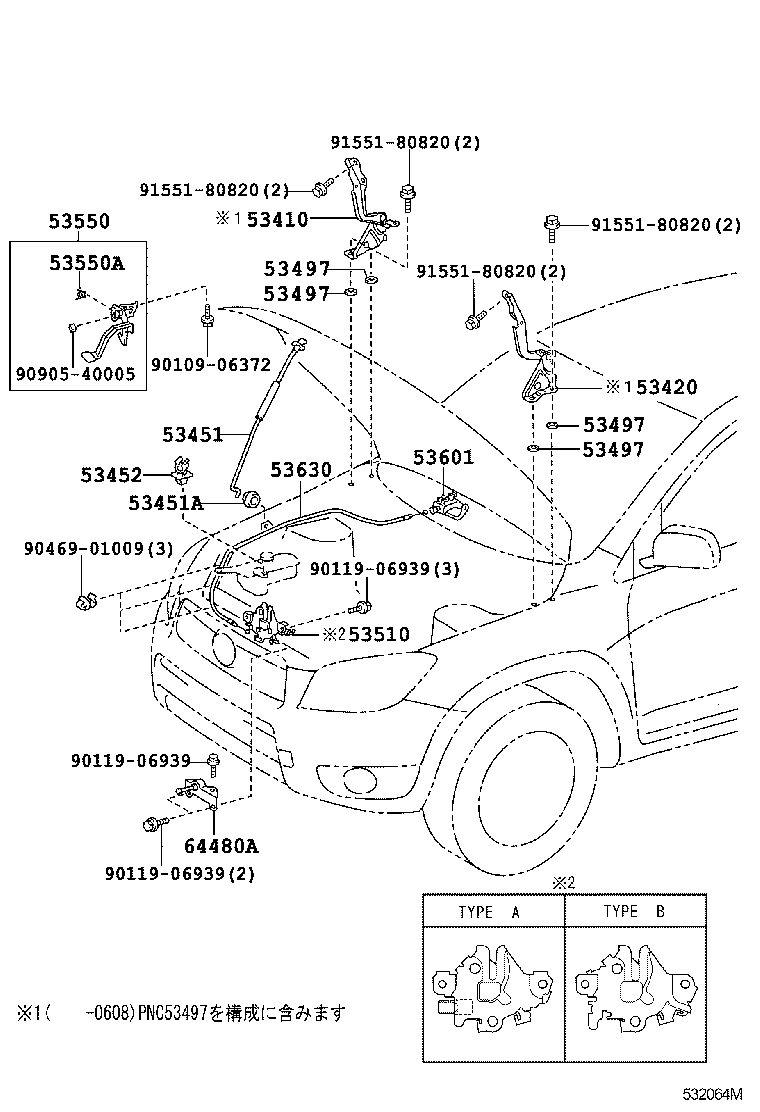

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53497 53497 53510 53550 53550A 53601 53630 64480A 9010906372 9011906939 9011906939 9011906939 9046901009 9090540005 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-42040

ACA3#

 1
53410-42060

ACA31,36

 1
53420 - HINGE ASSY, HOOD, LH
53420-42060

ACA31,36

 1
53420-42040

ACA3#

 1
53451 - ROD, HOOD SUPPORT
53440-42040

ACA31,36

 1
53440-42030

ACA3#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15025

ACA3#

 1
53454-42010

ACA31,36

 1
53452 - HOLDER, HOOD STAY
53452-42020

ACA31,36

 1
53452-42010

ACA3#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA31,36

厚さ=0.5

 4
53497-20070

ACA31,36

厚さ=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA31,36

厚さ=0.5

 4
53497-20070

ACA31,36

厚さ=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA31,36

厚さ=0.5

 4
53497-20070

ACA31,36

厚さ=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ACA31,36

厚さ=0.5

 4
53497-20070

ACA31,36

厚さ=2.0

 4
53510 - LOCK ASSY, HOOD
53510-42090

ACA31,36

TYPE B:ｲﾗｽﾄ参照

 1
53510-42070

ACA3#

TYPE A:ｲﾗｽﾄ参照

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-42020

ACA31,36

 1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90508-18102

ACA31,36

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B3

ACA31,36

DK.GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-42090

ACA31,36

 1
64480A - STRIKER ASSY, ENGINE HOOD LOCK
64480-42010

ACA31,36

 1
Common parts
90109-06372
90119-06939
90469-01009
90905-40005
91551-80820
