ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA31,36

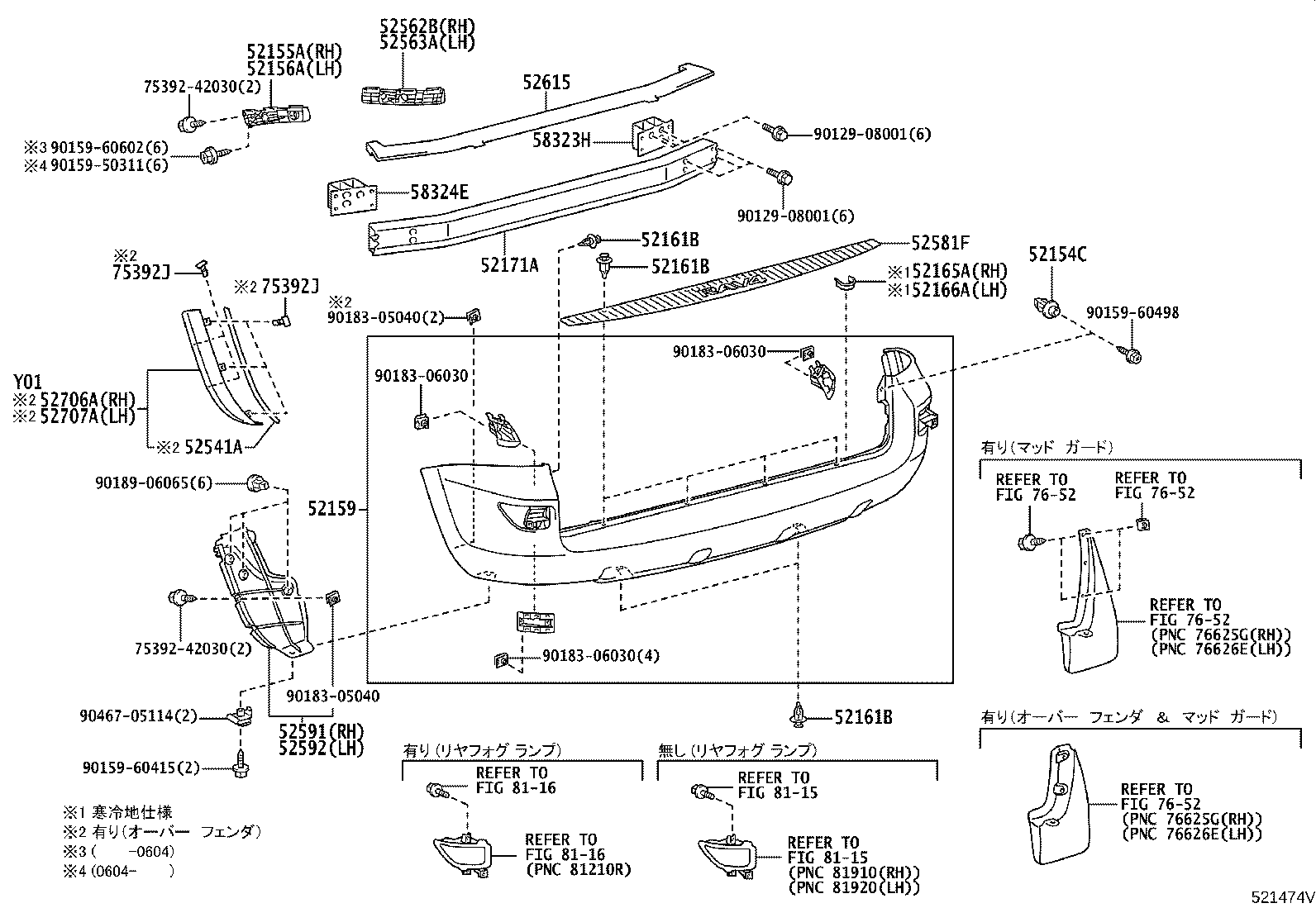

Click highlighted areas on diagram

diagram 52154C 52155A 52156A 52159 52161B 52161B 52161B 52165A 52166A 52171A 52541A 52562B 52563A 52581F 52591 52592 52615 52706A 52707A 58323H 58324E 7539242030 7539242030 75392J 75392J 7652 7652 7652 7652 8115 8115 8116 8116 9012908001 9012908001 9015950311 9015960415 9015960498 9015960602 9018305040 9018305040 9018306030 9018306030 9018306030 9018906065 9046705114
Part # Description Qty Price
52154C - SUPPORT, REAR BUMPER, NO.1
52154-42010

ACA31,36

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-42011

ACA31,36

 1
52155-42010

ACA3#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-42030

ACA3#

 1
52156-42031

ACA31,36

 1
52159 - COVER, REAR BUMPER
52159-42040B1

ACA3#..G,X

SILVER ME.,1F7

 1
52159-42040G0

ACA3#..G,X

DK.GREEN MC.,6T3

 1
52159-42040J1

ACA3#..G,X

DK.BLUE MC.,8S6

 1
52159-42040J0

ACA3#..G,X

GRAYISH BLUE ME.,8R3

 1
52159-42040A0

ACA3#..G,X

WHITE PEARL CS.,070

 1
52159-42040C0

ACA3#..G,X

BLACK,202

 1
52159-42040G1

ACA3#..G,X

LT.GREEN ME.,6T6

 1
52159-42040D0

ACA3#..G,X

RED M.M.,3R3

 1
52159-42100G1

ACA3#..G,X

寒冷地仕様,LT.GREEN ME.,6T6

 1
52159-42100C0

ACA3#..G,X

寒冷地仕様,BLACK,202

 1
52159-42100B0

ACA3#..G,X

寒冷地仕様,SILVER ME.,1F7

 1
52159-42100A0

ACA3#..G,X

寒冷地仕様,WHITE PEARL CS.,070

 1
52159-42100J1

ACA3#..G,X

寒冷地仕様,DK.BLUE MC.,8S6

 1
52159-42100G0

ACA3#..G,X

寒冷地仕様,DK.GREEN MC.,6T3

 1
52150-42540D0

ACA3#..G,X

寒冷地仕様,RED M.M.,3R3

 1
52159-42100D0

ACA3#..G,X

寒冷地仕様,RED M.M.,3R3

 1
52150-42540C0

ACA3#..G,X

寒冷地仕様,BLACK,202

 1
52159-42100J0

ACA3#..G,X

寒冷地仕様,GRAYISH BLUE ME.,8R3

 1
52150-42540B0

ACA3#..G,X

寒冷地仕様,SILVER ME.,1F7

 1
52150-42540J1

ACA3#..G,X

寒冷地仕様,DK.BLUE MC.,8S6

 1
52150-42540A0

ACA3#..G,X

寒冷地仕様,WHITE PEARL CS.,070

 1
52150-42540G1

ACA3#..G,X

寒冷地仕様,LT.GREEN ME.,6T6

 1
52150-42540J0

ACA3#..G,X

寒冷地仕様,GRAYISH BLUE ME.,8R3

 1
52150-42540G0

ACA3#..G,X

寒冷地仕様,DK.GREEN MC.,6T3

 1
52150-42580C0

ACA31,36..G,X

BLACK,202

 1
52150-42580A0

ACA31,36..G,X

WHITE PEARL CS.,070

 1
52150-42580D0

ACA31,36..G,X

RED M.M.,3R3

 1
52150-42580J1

ACA31,36..G,X

DK.BLUE MC.,8S6

 1
52150-42580B0

ACA31,36..G,X

SILVER ME.,1F7

 1
52150-42580G1

ACA31,36..G,X

LT.GREEN ME.,6T6

 1
52150-42580J0

ACA31,36..G,X

GRAYISH BLUE ME.,8R3

 1
52150-42541D0

ACA31,36..G,X

寒冷地仕様,RED M.M.,3R3

 1
52150-42541B0

ACA31,36..G,X

寒冷地仕様,SILVER ME.,1F7

 1
52150-42541A0

ACA31,36..G,X

寒冷地仕様,WHITE PEARL CS.,070

 1
52150-42541G0

ACA31,36..G,X

寒冷地仕様,DK.GREEN MC.,6T3

 1
52150-42541J1

ACA31,36..G,X

寒冷地仕様,DK.BLUE MC.,8S6

 1
52150-42541J0

ACA31,36..G,X

寒冷地仕様,GRAYISH BLUE ME.,8R3

 1
52150-42541C0

ACA31,36..G,X

寒冷地仕様,BLACK,202

 1
52150-42541G1

ACA31,36..G,X

寒冷地仕様,LT.GREEN ME.,6T6

 1
52150-42580G0

ACA31,36..G,X

DK.GREEN MC.,6T3

 1
52161B - PIECE, REAR BUMPER
52161-16010

ACA31,36

 7
52161B - PIECE, REAR BUMPER
52161-16010

ACA31,36

 7
52161B - PIECE, REAR BUMPER
52161-16010

ACA31,36

 7
52165A - COVER, REAR BUMPER, UPR RH
52165-42010

ACA3#

塗装不要,寒冷地仕様

 1
52165-42020

ACA31,36

塗装不要,寒冷地仕様

 1
52166A - COVER, REAR BUMPER, UPR LH
52166-42010

ACA31,36

塗装不要,寒冷地仕様

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-42020

ACA31,36

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-42030

ACA3#

 1
52562-42031

ACA31,36

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-42011

ACA31,36

 1
52563-42010

ACA3#

 1
52581F - PROTECTOR, REAR BUMPER
52581-42030

ACA31,36

 1
52581-42040

ACA3#

寒冷地仕様

 1
52581-42041

ACA31,36

寒冷地仕様

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-42070

ACA31,36

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-42070

ACA31,36

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-42010

ACA31,36

 1
52615-42011

ACA31,36

 1
58323H - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58323-42010

ACA31,36

 1
58324E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58324-42010

ACA31,36

 1
Common parts
75392-42030
90129-08001
90159-50311
90159-60415
90159-60498
90159-60602
90183-05040
90183-06030
90189-06065
90467-05114
