ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

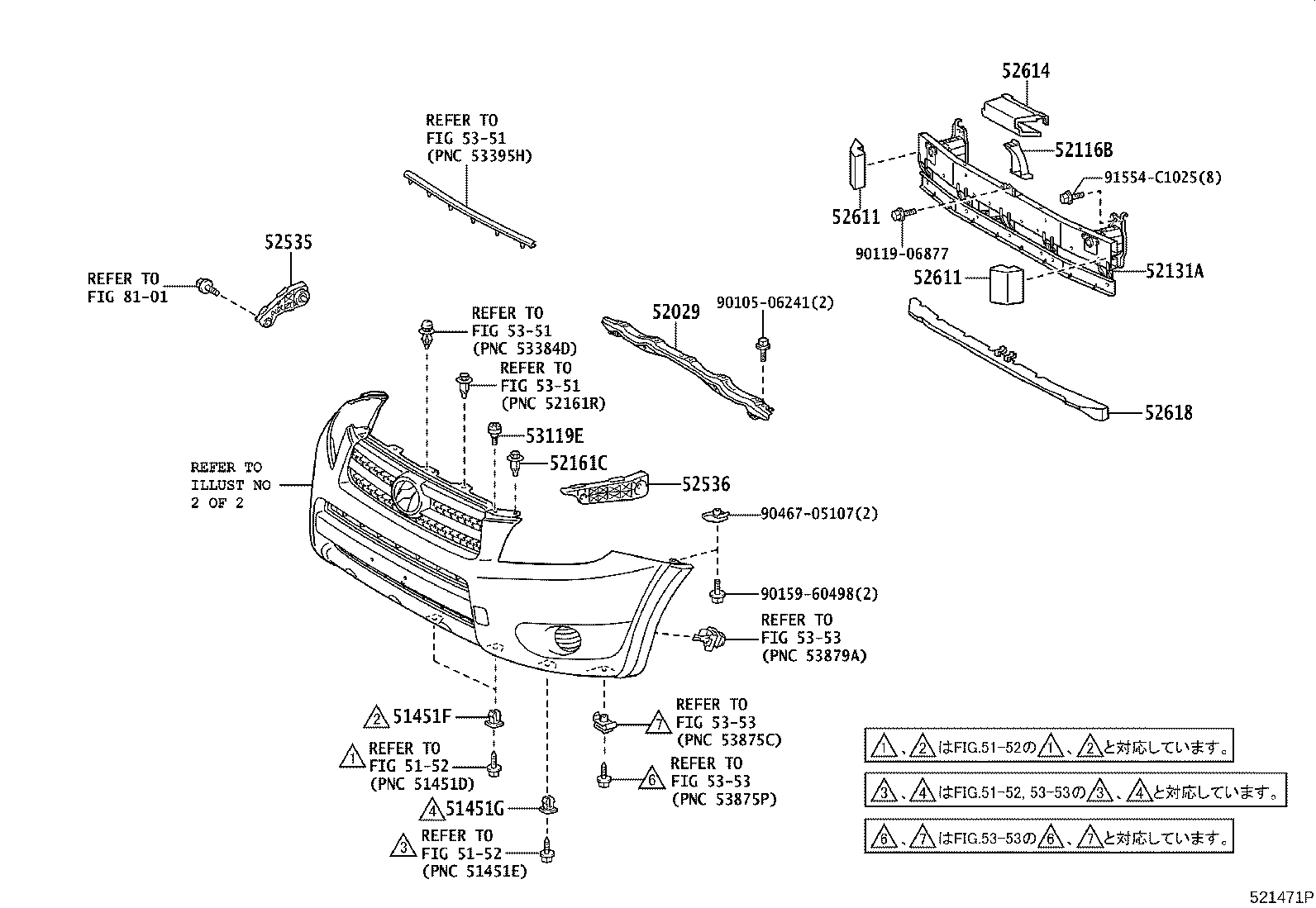

ILLUST NO. 1 OF 2(0511-0808)ACA31,36

Click highlighted areas on diagram

diagram 51451F 51451G 5152 5152 52029 52116B 52131A 52161C 52535 52536 52611 52611 52614 52618 53119E 5351 5351 5351 5353 5353 5353 8101 9010506241 9011906877 9015960498 9046705107 91554C1025
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ACA3#,GSA33

 4
51451G - GROMMET, NO.2
90189-06193

ACA3#,GSA33

 2
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-42070

ACA31,36

 1
52116B - RETAINER, FRONT BUMPER
52116-42010

ACA31,36

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-42090

ACA3#,GSA33

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACA31,36

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-42020

ACA31,36

 1
52535-42021

ACA31,36

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-42020

ACA31,36

 1
52536-42021

ACA31,36

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-42010

ACA31,36

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-42010

ACA31,36

 2
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-42010

ACA31,36

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-42010

ACA31,36

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-42020

ACA31,36

 2
53119-20120

ACA3#

 2
Common parts
90105-06241
90119-06877
90159-60498
90467-05107
91554-C1025
Linked diagrams
5152
5351
5353
8101

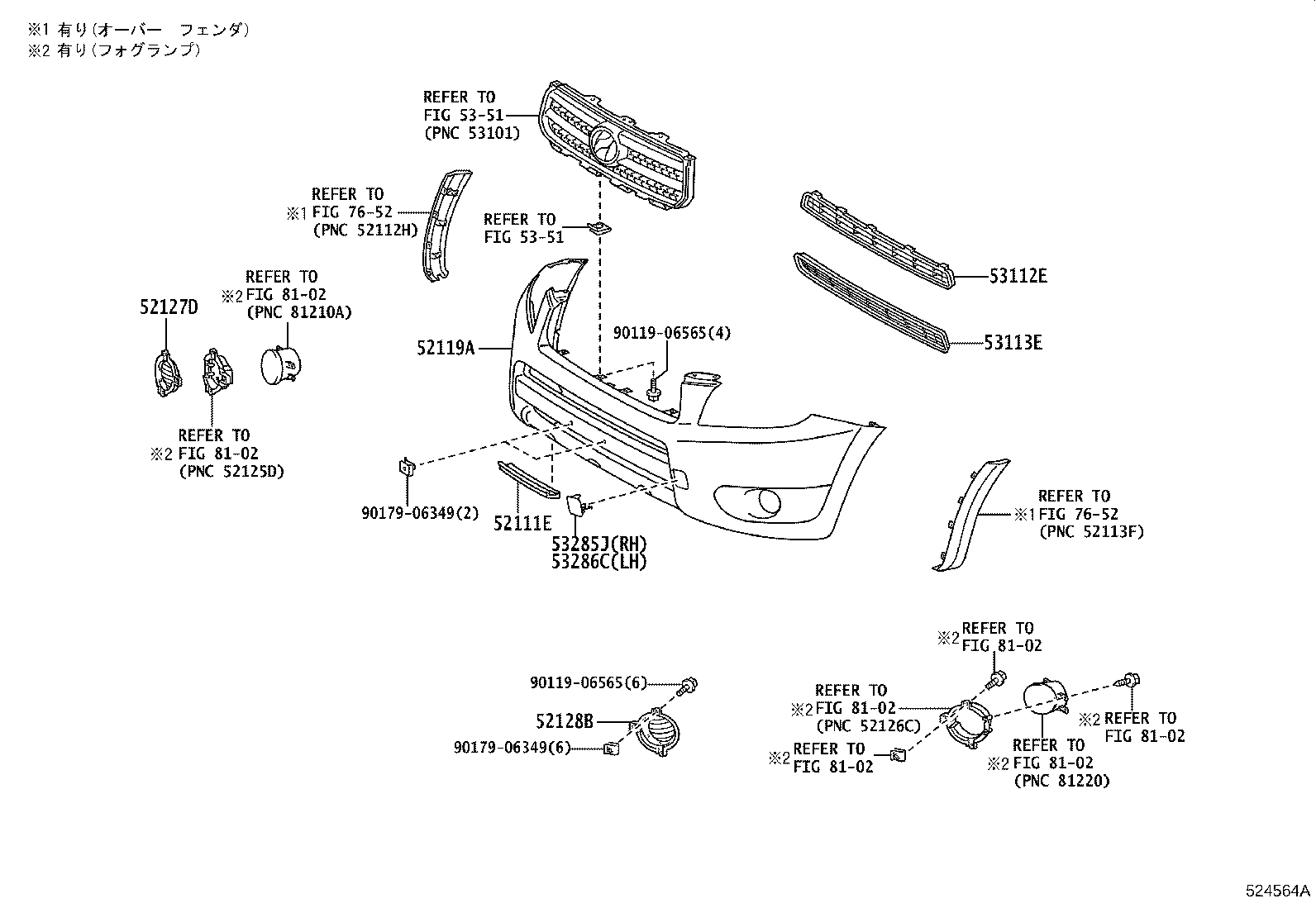

ILLUST NO. 2 OF 2(0511-0808)ACA31,36

Click highlighted areas on diagram

diagram 52111E 52119A 52127D 52128B 53112E 53113E 53285J 53286C 5351 5351 7652 7652 8102 8102 8102 8102 8102 8102 8102 9011906565 9011906565 9017906349 9017906349
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-42010

ACA31,36

塗装不要

 1
52119A - COVER, FRONT BUMPER
52119-42590B1

ACA3#..G,X

SILVER ME.,1F7

 1
52119-42590G0

ACA3#..G,X

DK.GREEN MC.,6T3

 1
52119-42590D0

ACA3#..G,X

RED M.M.,3R3

 1
52119-42590J1

ACA3#..G,X

DK.BLUE MC.,8S6

 1
52119-42591B1

ACA31,36..G,X

SILVER ME.,1F7

 1
52119-42590G1

ACA3#..G,X

LT.GREEN ME.,6T6

 1
52119-42590C0

ACA3#..G,X

BLACK,202

 1
52119-42590A0

ACA3#..G,X

WHITE PEARL CS.,070

 1
52119-42591A0

ACA31,36..G,X

WHITE PEARL CS.,070

 1
52119-42591D0

ACA31,36..G,X

RED M.M.,3R3

 1
52119-42591C0

ACA31,36..G,X

BLACK,202

 1
52119-42591J1

ACA31,36..G,X

DK.BLUE MC.,8S6

 1
52119-42591G0

ACA31,36..G,X

DK.GREEN MC.,6T3

 1
52119-42591G1

ACA31,36..G,X

LT.GREEN ME.,6T6

 1
52119-42591J0

ACA31,36..G,X

GRAYISH BLUE ME.,8R3

 1
52119-42590J0

ACA3#..G,X

GRAYISH BLUE ME.,8R3

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-42040

ACA31,36..X

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-42040

ACA31,36..X

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-42050

ACA31,36

塗装不要

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-42040

ACA31,36

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-42010G0

ACA31,36

DK.GREEN MC.,6T3

 1
53285-42010G1

ACA31,36

LT.GREEN ME.,6T6

 1
53285-42010D0

ACA31,36

RED M.M.,3R3

 1
53285-42010B1

ACA31,36

SILVER ME.,1F7

 1
53285-42010J0

ACA31,36

GRAYISH BLUE ME.,8R3

 1
53285-42010A1

ACA31,36

WHITE PEARL CS.,070

 1
53285-42010J1

ACA31,36

DK.BLUE MC.,8S6

 1
53285-42010C0

ACA31,36

BLACK,202

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-42030D0

ACA31,36

RED M.M.,3R3

 1
53286-42030C0

ACA31,36

BLACK,202

 1
53286-42030J0

ACA31,36

GRAYISH BLUE ME.,8R3

 1
53286-42030A1

ACA31,36

WHITE PEARL CS.,070

 1
53286-42030B1

ACA31,36

SILVER ME.,1F7

 1
53286-42030G0

ACA31,36

DK.GREEN MC.,6T3

 1
53286-42030J1

ACA31,36

DK.BLUE MC.,8S6

 1
53286-42030G1

ACA31,36

LT.GREEN ME.,6T6

 1
Common parts
90119-06565
90179-06349
Linked diagrams
5351
7652
8102
