ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-1305)

Click highlighted areas on diagram

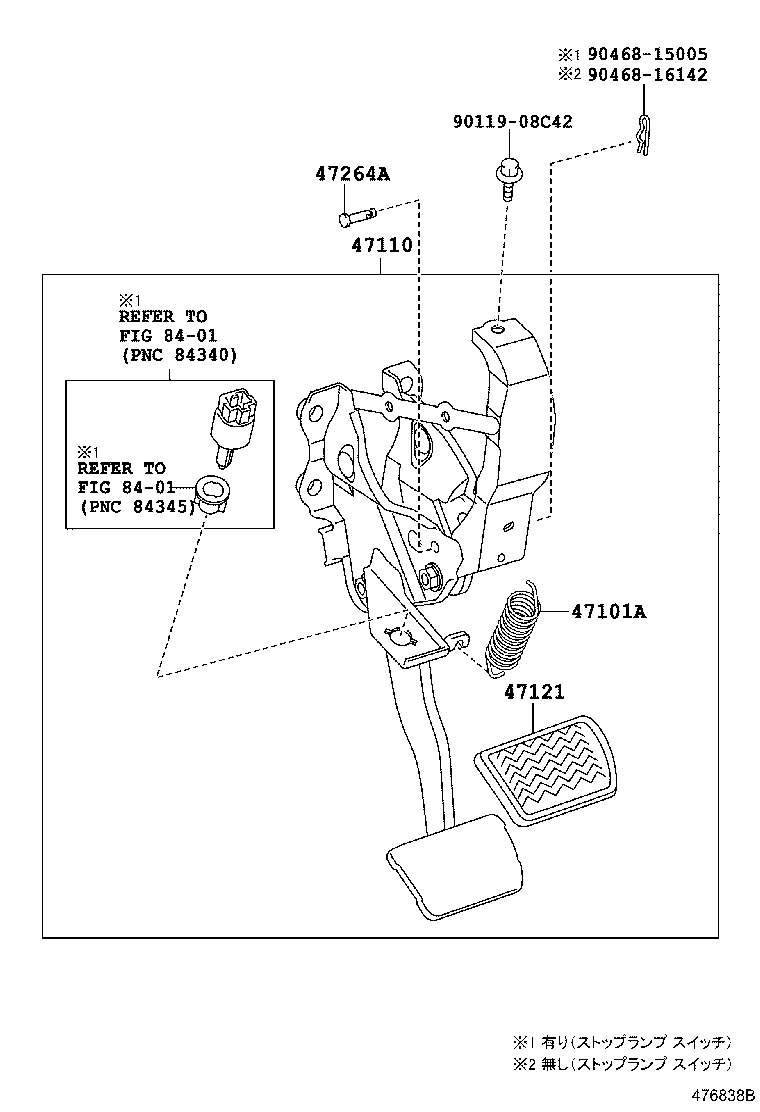

diagram 47101A 47110 47121 47264A 8401 8401 9011908C42 9046815005 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-42010

ACA31,36

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-42150

ACA31,36..G,X

 1
47110-42160

ACA31,36..G,X

VSC付き

 1
47121 - PAD, BRAKE PEDAL
47121-42010

ACA31,36

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

ACA3#..G,X

 1
90249-06180

ACA31,36..G,X

VSC付き

 1
90249-08256

ACA31,36..G,X

 1
Common parts
90119-08C42
90468-15005
90468-16142
Linked diagrams
8401
