ACA36W-AWXXK (2005)
Toyota Rav4/Vanguard
Production
Nov 2005
-
Aug 2008
Engine
2AZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0511- )

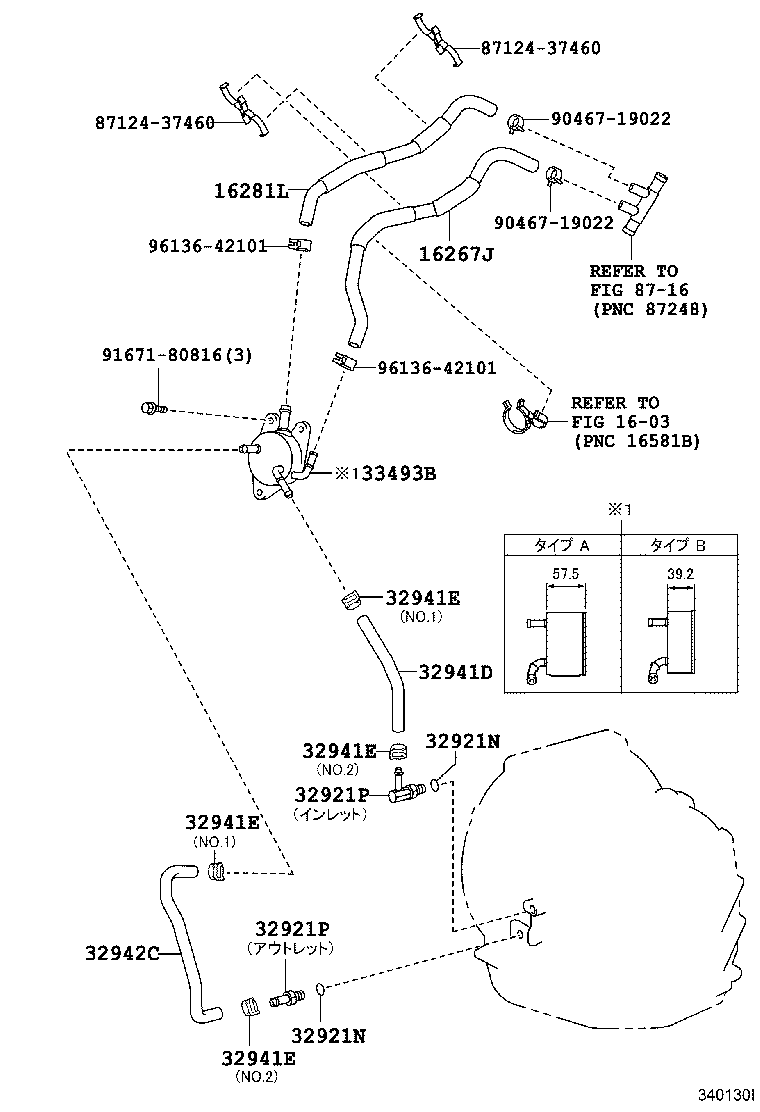

Click highlighted areas on diagram
K112,K112F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16267J - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-28040 |
2AZFE..ACA31,36 |
1 | ||
| 16281L - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-28020 |
2AZFE..ACA31,36 |
1 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA31,36 |
2 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA31,36 |
2 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ACA31,36 ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-13009 |
ACA31,36 ｲﾝﾚｯﾄ |
1 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ACA31,36 ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-13009 |
ACA31,36 ｲﾝﾚｯﾄ |
1 | ||
| 32941D - HOSE, OIL COOLER INLET | ||||
| 32941-42050 |
ACA31,36 |
1 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90467-16022 |
ACA3# NO.1 |
2 | ||
| 90467-16022 |
ACA31,36 NO.2 |
2 | ||
| 90466-16004 |
ACA31,36 NO.1 |
2 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90467-16022 |
ACA3# NO.1 |
2 | ||
| 90467-16022 |
ACA31,36 NO.2 |
2 | ||
| 90466-16004 |
ACA31,36 NO.1 |
2 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90467-16022 |
ACA3# NO.1 |
2 | ||
| 90467-16022 |
ACA31,36 NO.2 |
2 | ||
| 90466-16004 |
ACA31,36 NO.1 |
2 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90467-16022 |
ACA3# NO.1 |
2 | ||
| 90467-16022 |
ACA31,36 NO.2 |
2 | ||
| 90466-16004 |
ACA31,36 NO.1 |
2 | ||
| 32942C - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-42040 |
ACA31,36 |
1 | ||
| 33493B - COOLER, OIL | ||||
| 33493-42040 |
ACA3# ﾀｲﾌﾟ A |
1 | ||
| Common parts | ||||
| 87124-37460 | ||||
| 90467-19022 | ||||
| 91671-80816 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8716 | ||||
