ACA36W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2AZFE

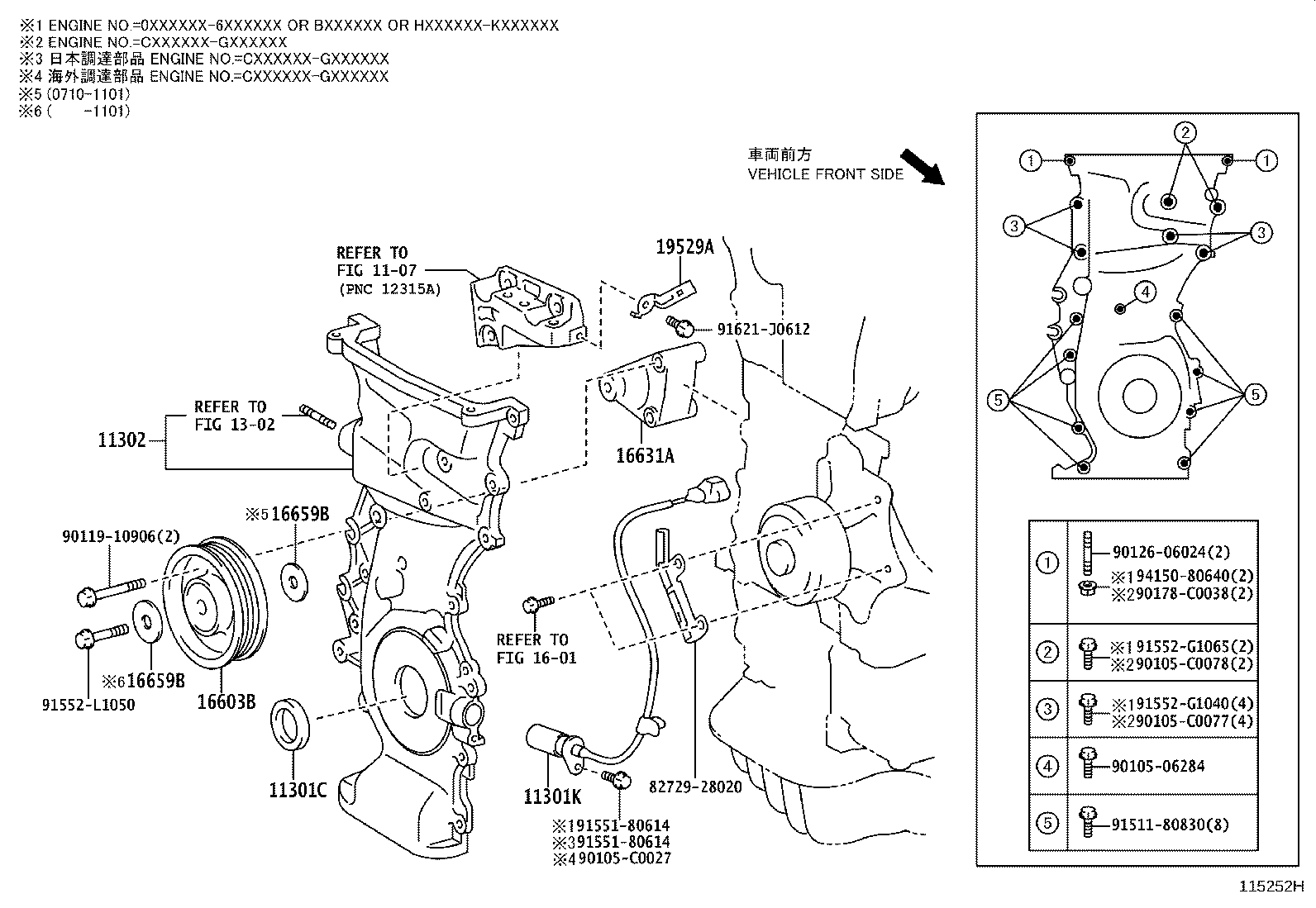

Click highlighted areas on diagram

diagram 1107 11301C 11301K 11302 1302 1601 16603B 16631A 16659B 16659B 19529A 8272928020 9010506284 90105C0027 90105C0077 90105C0078 9011910906 9012606024 90178C0038 9151180830 9155180614 9155180614 91552G1040 91552G1065 91552L1050 91621J0612 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-T0024

2AZFE..ACA31,36

*194

 1
90311-38089

2AZFE..ACA31,36

*195

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFE..ACA31,36

*194,*195

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0H070

2AZFE..ACA31,36

(L),*194

 1
11310-28090

2AZFE..ACA31,36

*195

 1
11310-28090

2AZFE..ACA3#

*194

 1
11310-28090

2AZFE..ACA31,36

(J),*194

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-28020

2AZFE..ACA31,36

 1
16631A - BRACKET, IDLER PULLEY
16631-28030

2AZFE..ACA3#

 1
16631-28031

2AZFE..ACA31,36

 1
16659B - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

2AZFE..ACA31,36

 2
16659-31011

2AZFE..ACA3#

 1
16659B - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

2AZFE..ACA31,36

 2
16659-31011

2AZFE..ACA3#

 1
19529A - CLAMP
19529-28030

2AZFE..ACA31,36

*194,*195

 1
Common parts
82729-28020
90105-06284
90105-C0027
90105-C0077
90105-C0078
90119-10906
90126-06024
90178-C0038
91511-80830
91551-80614
91552-G1040
91552-G1065
91552-L1050
91621-J0612
94150-80640
Linked diagrams
1107
1302
1601
