ACA33W-BNXGK (2007)

Toyota Rav4/Vanguard

Production Aug 2007 - Feb 2010
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708-1002)ACA33,38,GSA33

Click highlighted areas on diagram

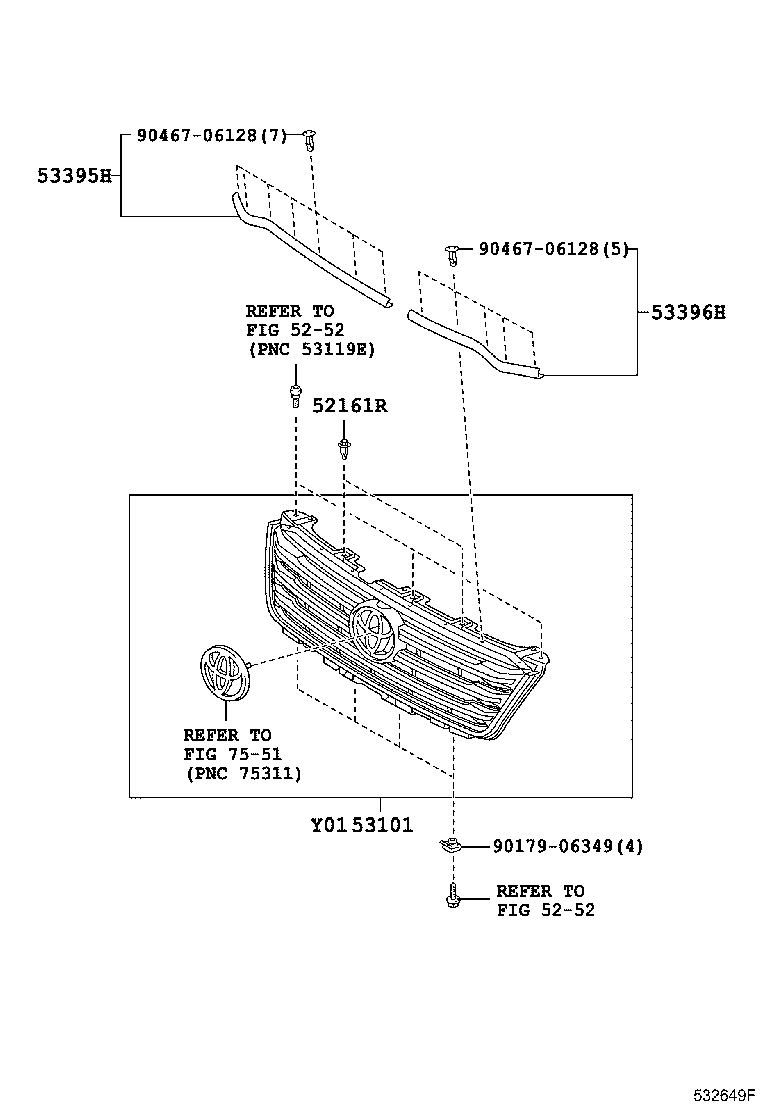

diagram 52161R 5252 5252 53101 53395H 53396H 7551 9017906349 9046706128 9046706128
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-42210

ACA33,38,GSA33

ﾒｯｷ

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-42030

ACA3#

 1
53395-42040

ACA33,38,GSA33

 1
53396H - SEAL, HOOD TO FRONT END PANEL, NO.2
53396-42030

ACA33,38,GSA33

 1
Common parts
90179-06349
90467-06128
Linked diagrams
5252
7551

(0808- )G,STYLE,X

Click highlighted areas on diagram

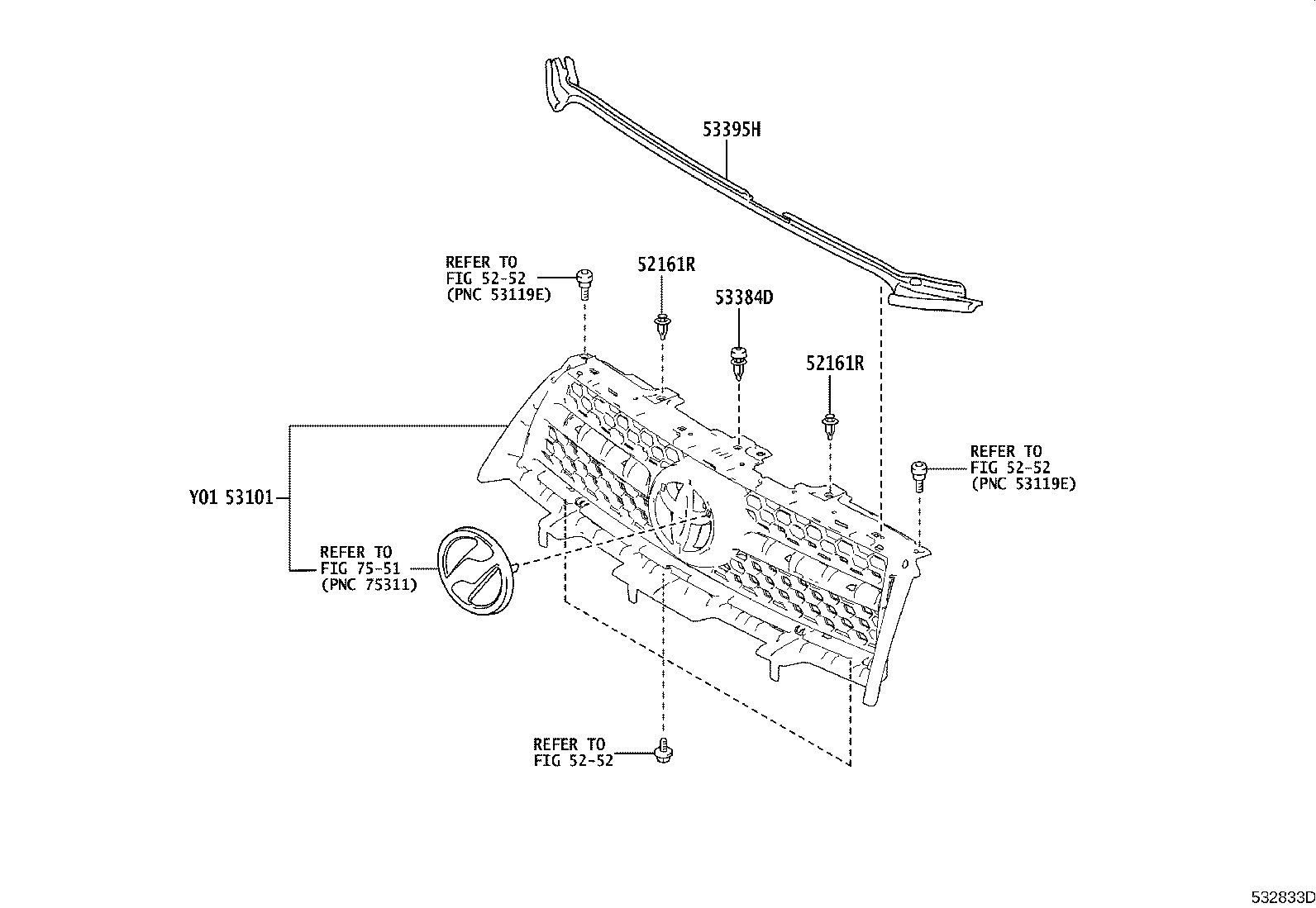

diagram 52161R 52161R 5252 5252 5252 53101 53384D 53395H 7551
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
52161R - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-42210

ACA33,38,GSA33

ﾒｯｷ

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-42030

ACA3#

 1
53395-42040

ACA33,38,GSA33

 1
Linked diagrams
5252
7551

(0808- )S

Click highlighted areas on diagram

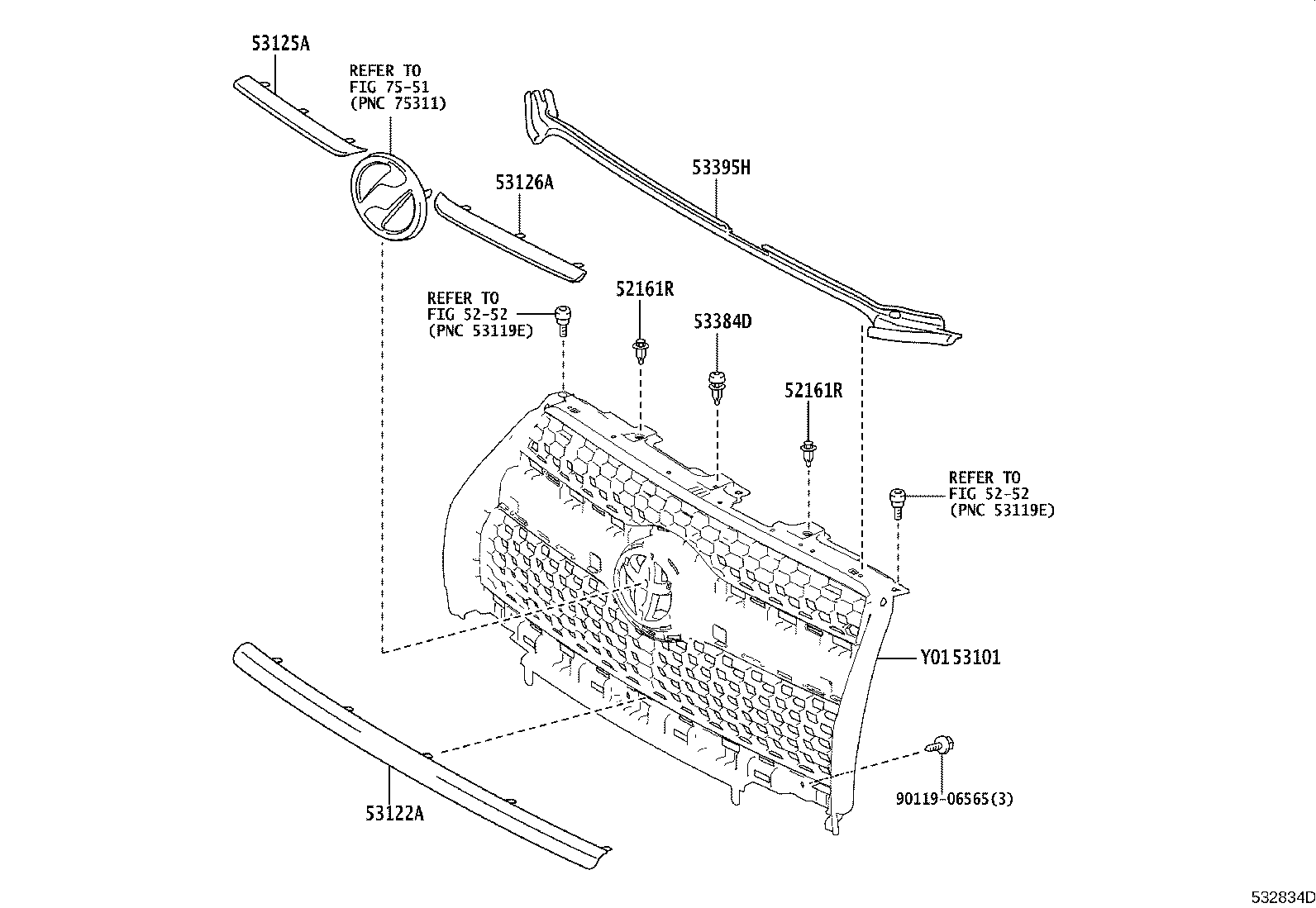

diagram 52161R 52161R 5252 5252 53101 53122A 53125A 53126A 53384D 53395H 7551 9011906565
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
52161R - PIECE, FRONT BUMPER
52161-16010

ACA33,38,GSA33

 2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-42210

ACA33,38,GSA33

ﾒｯｷ

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-42030

ACA3#

 1
53395-42040

ACA33,38,GSA33

 1
Common parts
90119-06565
Linked diagrams
5252
7551
