ACA31W-AWXZK (2012)
Toyota Rav4/Vanguard

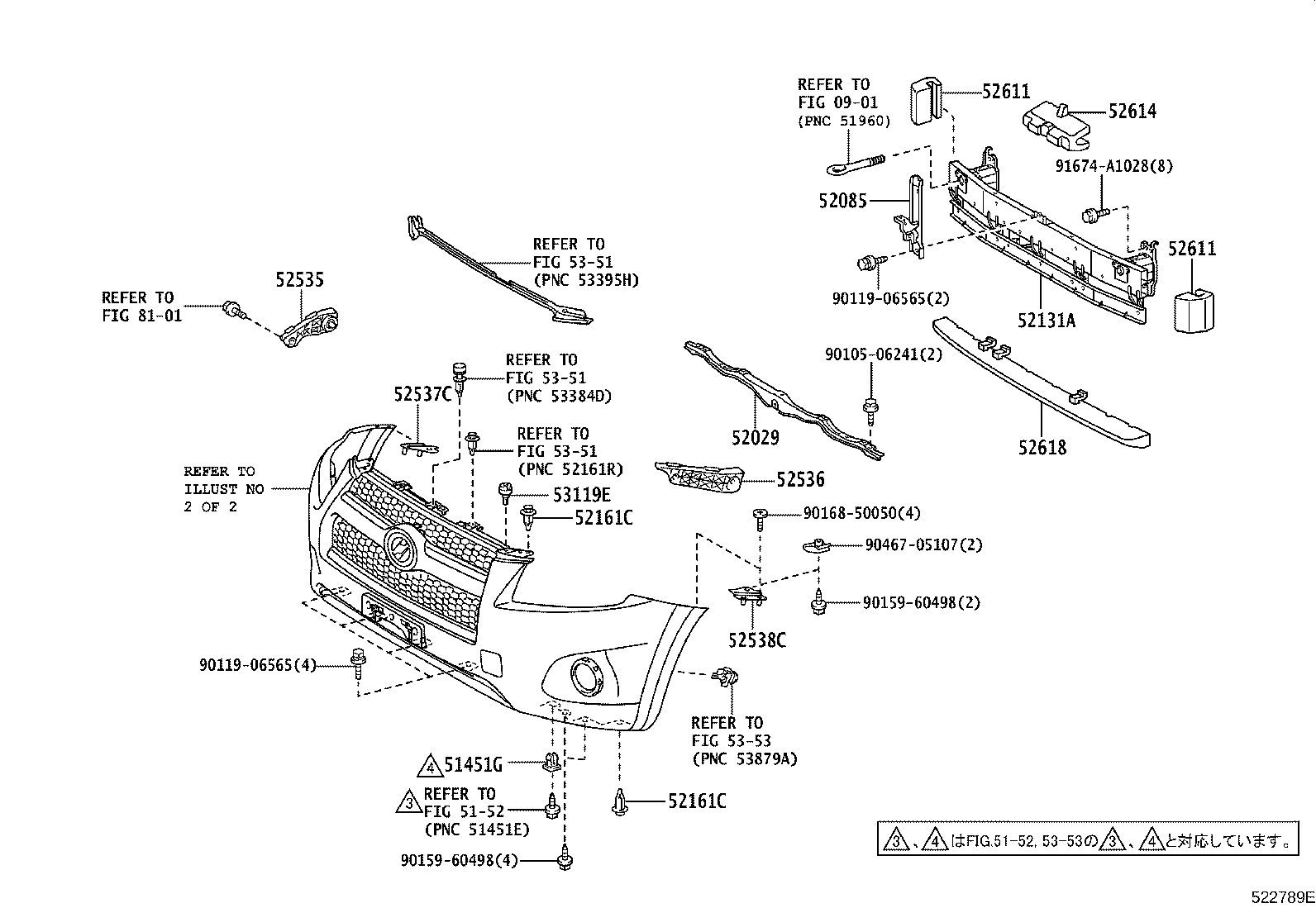

ILLUST NO. 1 OF 2(1212- )ACA31,36
"S PACKAGE"
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451G - GROMMET, NO.2 | ||||
| 90189-06193 |
ACA3#,GSA33 |
2 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42070 |
ACA31,36 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-42090 |
ACA3#,GSA33 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACA31,36 |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACA31,36 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-42020 |
ACA31,36 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-42020 |
ACA31,36 |
1 | ||
| 52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52537-42010 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52538-42010 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-42010 |
ACA31,36 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-42010 |
ACA31,36 |
2 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-42010 |
ACA31,36 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-42010 |
ACA31,36 |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-20120 |
ACA3# |
2 | ||
| Common parts | ||||
| 90105-06241 | ||||
| 90119-06565 | ||||
| 90159-60498 | ||||
| 90168-50050 | ||||
| 90467-05107 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8101 | ||||

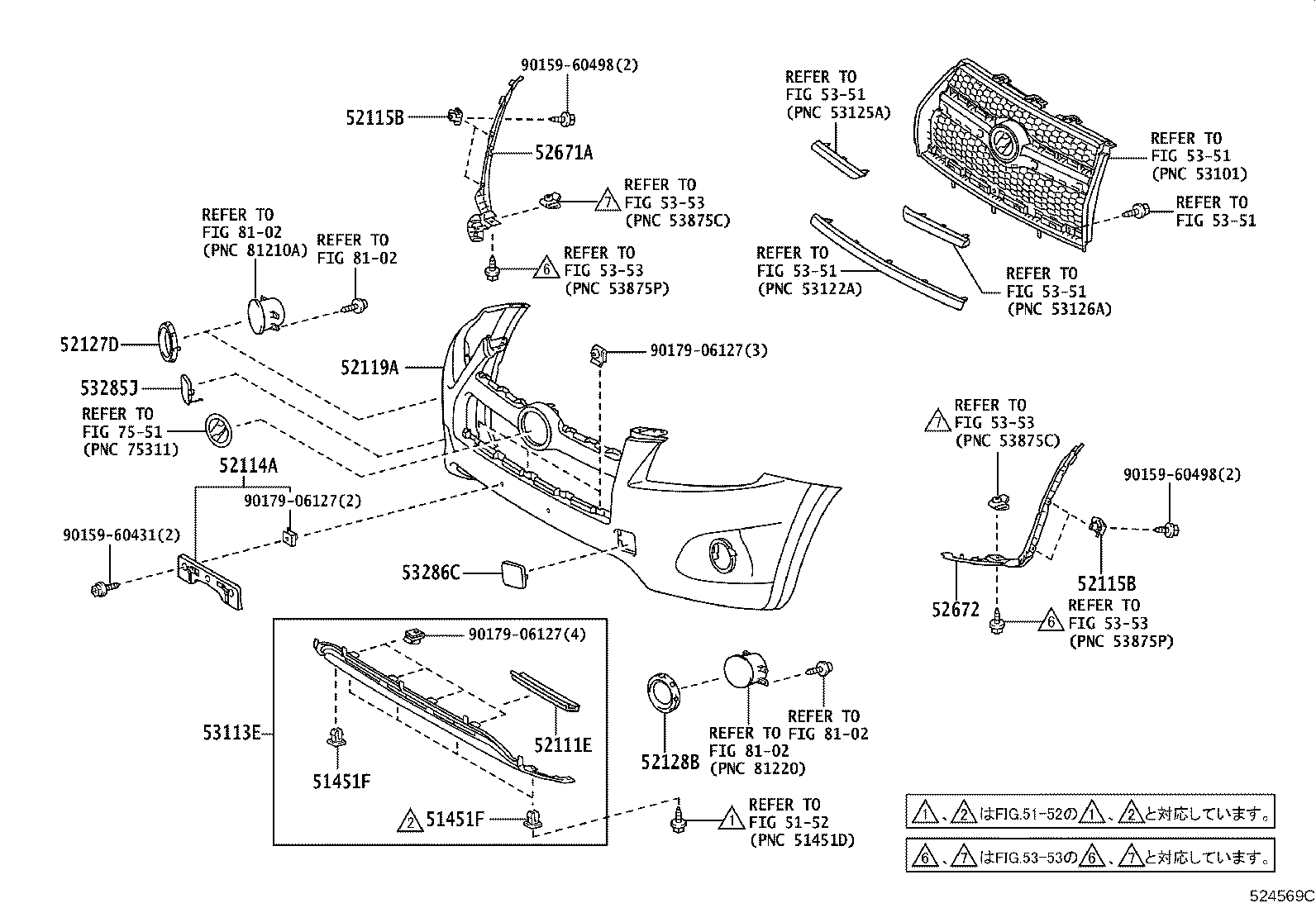

ILLUST NO. 2 OF 2(1212- )ACA31,36
"S PACKAGE"
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451F - GROMMET, NO.1 | ||||
| 90189-06193 |
ACA3#,GSA33 |
4 | ||
| 90189-06193 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
6 | ||
| 51451F - GROMMET, NO.1 | ||||
| 90189-06193 |
ACA3#,GSA33 |
4 | ||
| 90189-06193 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
6 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-42010 |
ACA31,36 塗装不要 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-42060 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 | ||||
| 52115-30120 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
4 | ||
| 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 | ||||
| 52115-30120 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
4 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-42590B1 |
ACA3#..G,X SILVER ME.,1F7 |
1 | ||
| 52119-42590G0 |
ACA3#..G,X DK.GREEN MC.,6T3 |
1 | ||
| 52119-42590D0 |
ACA3#..G,X RED M.M.,3R3 |
1 | ||
| 52119-42590J1 |
ACA3#..G,X DK.BLUE MC.,8S6 |
1 | ||
| 52119-42590G1 |
ACA3#..G,X LT.GREEN ME.,6T6 |
1 | ||
| 52119-42600A1 |
ACA31..S WHITE PEARL CS.,070 |
1 | ||
| 52119-42600B1 |
ACA31..S SILVER ME.,1F7 |
1 | ||
| 52119-42590C0 |
ACA3#..G,X BLACK,202 |
1 | ||
| 52119-42600D0 |
ACA31..S RED M.M.,3R3 |
1 | ||
| 52119-42590A0 |
ACA3#..G,X WHITE PEARL CS.,070 |
1 | ||
| 52119-42600C0 |
ACA31..S BLACK,202 |
1 | ||
| 52119-42600J0 |
ACA31..S GRAYISH BLUE ME.,8R3 |
1 | ||
| 52119-42600G0 |
ACA31..S DK.GREEN MC.,6T3 |
1 | ||
| 52119-42600J1 |
ACA31..S DK. BLUE MC.,8S6 |
1 | ||
| 52119-42600G1 |
ACA31..S LT. GREEN ME.,6T6 |
1 | ||
| 52119-42590J0 |
ACA3#..G,X GRAYISH BLUE ME.,8R3 |
1 | ||
| 52119-42750B1 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),DK. STEEL MC.,1H2 |
1 | ||
| 52119-42750E0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),BRONZE M.M.,4T3 |
1 | ||
| 52119-42750D0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),RED M.M.,3R3 |
1 | ||
| 52119-42750C0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),BLACK,202 |
1 | ||
| 52119-42750A0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-42750B0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-42740C1 |
ACA3# BLACK MC.,209 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-42040 |
ACA31,36..X |
1 | ||
| 52127-42070 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52127-42060 |
ACA31,36 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-42040 |
ACA31,36..X |
1 | ||
| 52128-42060 |
ACA31,36 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52128-42070 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52671A - EXTENSION, FRONT BUMPER ARM, RH | ||||
| 52671-42020 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 52672 - EXTENSION, FRONT BUMPER ARM, LH | ||||
| 52672-42020 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-42060 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ) |
1 | ||
| 53113-42040 |
ACA31,36 |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-42010G0 |
ACA31,36 DK.GREEN MC.,6T3 |
1 | ||
| 53285-42010G1 |
ACA31,36 LT.GREEN ME.,6T6 |
1 | ||
| 53285-42010D0 |
ACA31,36 RED M.M.,3R3 |
1 | ||
| 53285-42010B1 |
ACA31,36 SILVER ME.,1F7 |
1 | ||
| 53285-42010J0 |
ACA31,36 GRAYISH BLUE ME.,8R3 |
1 | ||
| 53285-42010A1 |
ACA31,36 WHITE PEARL CS.,070 |
1 | ||
| 53285-42010J1 |
ACA31,36 DK.BLUE MC.,8S6 |
1 | ||
| 53285-42010C0 |
ACA31,36 BLACK,202 |
1 | ||
| 53285-42050E0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),BRONZE M.M.,4T3 |
1 | ||
| 53285-42050A0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),WHITE PEARL CS.,070 |
1 | ||
| 53285-42050B2 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),DK. STEEL MC.,1H2 |
1 | ||
| 53285-42050B0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),SILVER ME.,1F7 |
1 | ||
| 53285-42050C0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),BLACK,202 |
1 | ||
| 53285-42050D0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),RED M.M.,3R3 |
1 | ||
| 53285-42040C1 |
ACA3# BLACK MC.,209 |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-42030D0 |
ACA31,36 RED M.M.,3R3 |
1 | ||
| 53286-42030C0 |
ACA31,36 BLACK,202 |
1 | ||
| 53286-42030J0 |
ACA31,36 GRAYISH BLUE ME.,8R3 |
1 | ||
| 53286-42030A1 |
ACA31,36 WHITE PEARL CS.,070 |
1 | ||
| 53286-42030B1 |
ACA31,36 SILVER ME.,1F7 |
1 | ||
| 53286-42030G0 |
ACA31,36 DK.GREEN MC.,6T3 |
1 | ||
| 53286-42030J1 |
ACA31,36 DK.BLUE MC.,8S6 |
1 | ||
| 53286-42030G1 |
ACA31,36 LT.GREEN ME.,6T6 |
1 | ||
| 53286-42060C0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),BLACK,202 |
1 | ||
| 53286-42060B2 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),DK. STEEL MC.,1H2 |
1 | ||
| 53286-42060D0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),RED M.M.,3R3 |
1 | ||
| 53286-42060E0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),BRONZE M.M.,4T3 |
1 | ||
| 53286-42060B0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),SILVER ME.,1F7 |
1 | ||
| 53286-42060A0 |
ACA31,36 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/55R18H ｱﾙﾐ 7.5J ｸﾞﾚｰ&“S Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾎﾜｲﾄ),WHITE PEARL CS.,070 |
1 | ||
| 53286-42050C1 |
ACA3# BLACK MC.,209 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60498 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 7551 | ||||
| 8102 | ||||
