ACA31W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA31,33,GSA33

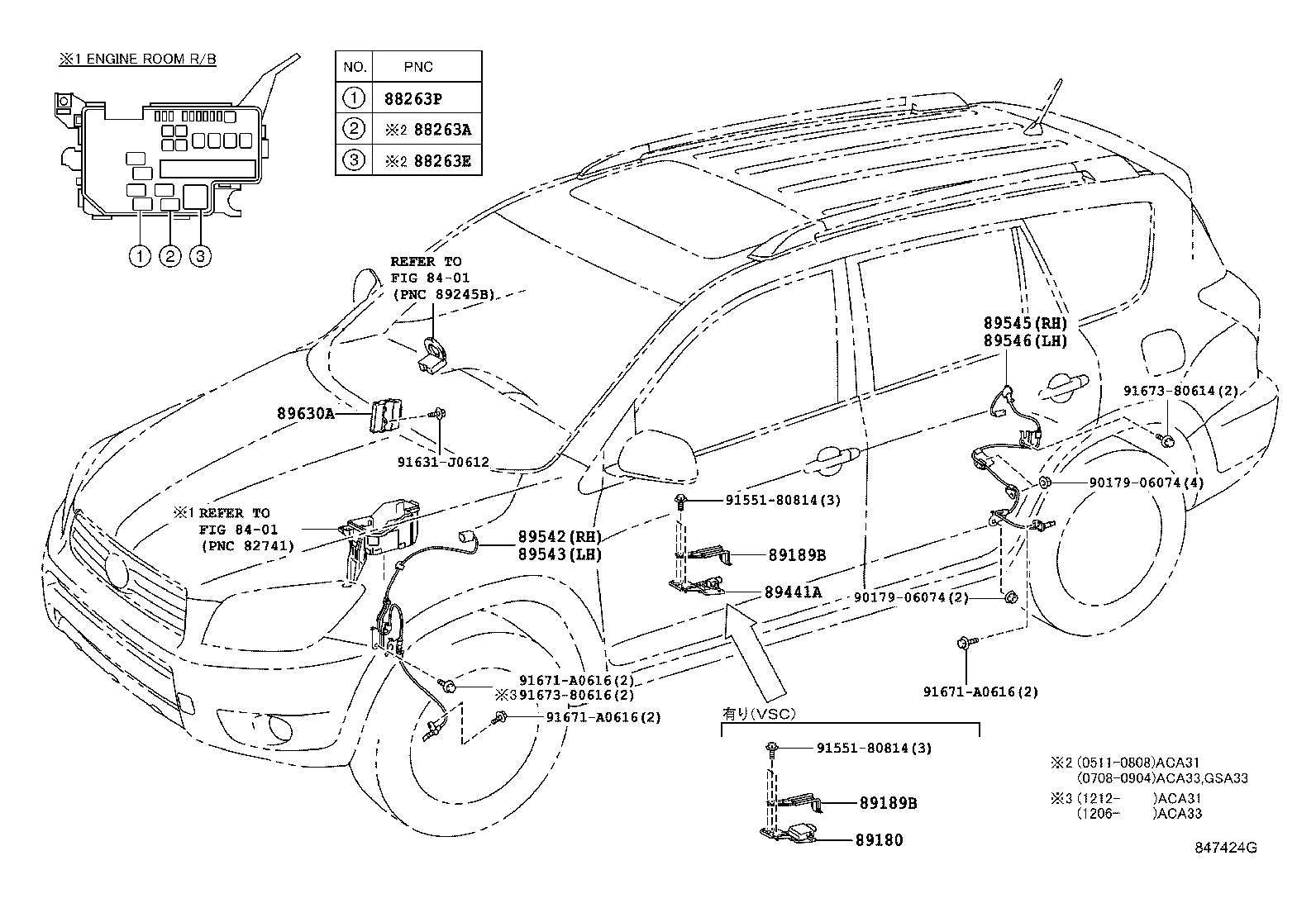

Click highlighted areas on diagram

diagram 8401 8401 88263A 88263E 88263P 89180 89189B 89189B 89441A 89542 89543 89545 89546 89630A 9017906074 9017906074 9155180814 9155180814 91631J0612 91671A0616 91671A0616 91671A0616 9167380614 9167380616
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-32070

ACA31..S

 1
88263-32070

ACA31,36..G,X

VSC付き

 1
88263E - RELAY, SKID CONTROL NO.2
88263-21010

ACA31,36..G,X

VSC付き

 1
88263-21010

ACA31..S

 1
88263P - RELAY, STOP LAMP CONTROL
90987-04004

ACA31,36..G,X

VSC付き

 1
90987-04004

ACA31..S

 1
89180 - SENSOR ASSY, YAWRATE
89180-42020

ACA31,33,GSA33..240S,350S,S

 1
89180-42020

ACA31,36..G,X

VSC付き

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA31,36

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA31,36

 1
89441A - SENSOR, DECELERATION
89440-42050

ACA31,36..G,X

 1
89542 - SENSOR, SPEED, FRONT RH
89542-42050

ACA3#,GSA33

 1
89543 - SENSOR, SPEED, FRONT LH
89543-42050

ACA31,36

 1
89545 - SENSOR, SPEED, REAR RH
89545-42040

ACA31

 1
89546 - SENSOR, SPEED, REAR LH
89546-42040

ACA31

 1
89630A - COMPUTER ASSY, 4WD
89630-42020

ACA31

 1
89630-42010

ACA31

 1
89630-42020

ACA31

 1
Common parts
90179-06074
91551-80814
91631-J0612
91671-A0616
91673-80614
91673-80616
Linked diagrams
8401
