ACA31W-AWXXK (2005)

Toyota Rav4/Vanguard

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-42110

ACA31,36

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ACA31,36

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ACA31,36

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ACA31,36

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28011

ACA3#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACA31,36

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-42160

ACA31,36

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ACA3#,GSA33

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50026

ACA3#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100

ACA31,36

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090

ACA31,36

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ACA31,36

TYPE B:ｲﾗｽﾄ参照

 1
42345-42010

ACA31,36

TYPE A:ｲﾗｽﾄ参照

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ACA31,36

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49645

ACA31,36

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-42020

ACA31,36

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ACA31,36

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ACA31,36

 1

(0511- )ACA31,33,GSA33

Click highlighted areas on diagram

ﾗｲﾄ

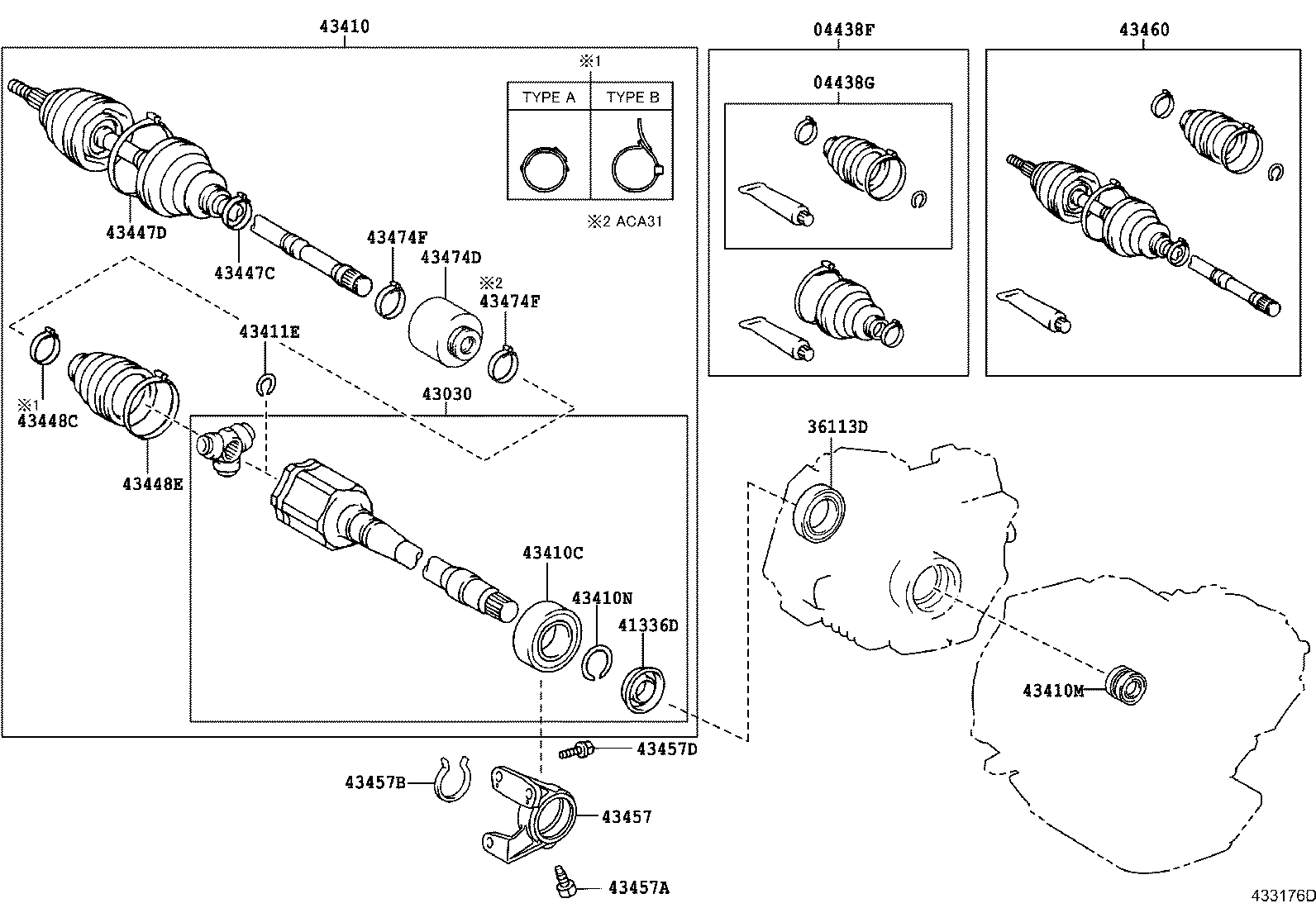

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-44040

ACA31

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-42180

ACA31,36

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

ACA31,33,GSA33

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

ACA31

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-42050

ACA31,33

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-42180

ACA31

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

ACA31

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

ACA31,33

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ACA31

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACA31,36

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100

ACA31,36

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090

ACA31,36

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ACA31,36

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ACA31,36

TYPE B:ｲﾗｽﾄ参照

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ACA31,36

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42040

ACA31

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

ACA31

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

ACA31

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ACA31,36

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-49665

ACA31,36

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-48030

ACA31

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ACA31

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ACA31

 1
