NCZ25-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

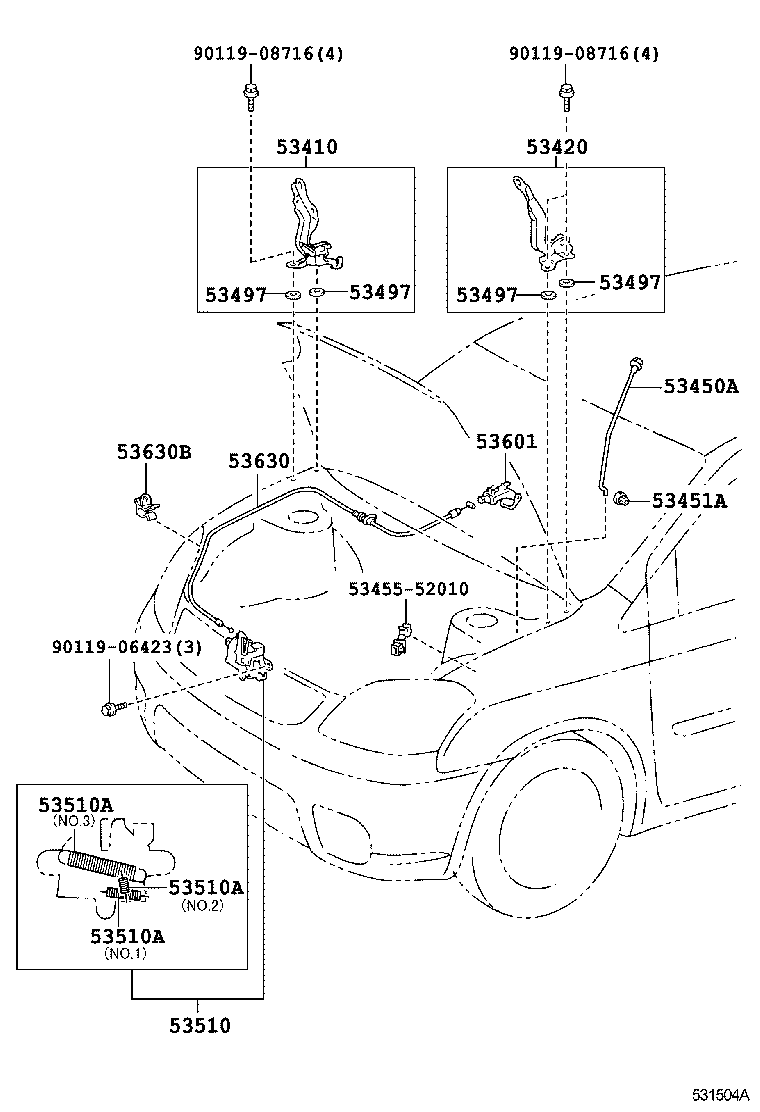

Click highlighted areas on diagram

diagram 53410 53420 53450A 53451A 5345552010 53497 53497 53497 53497 53510 53510A 53510A 53510A 53601 53630 53630B 9011906423 9011908716 9011908716
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-46030

NCZ2#

 1
53420 - HINGE ASSY, HOOD, LH
53420-46030

NCZ2#

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-46020

NCZ2#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15034

NCZ2#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

NCZ2#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

NCZ2#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

NCZ2#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

NCZ2#

厚さ=0.5

 4
53510 - LOCK ASSY, HOOD
53510-46010

NCZ2#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

NCZ2#

線径=1.2,ｺｲﾙ巻数=8.5,NO.2

 1
90506-18067

NCZ2#

線径=1.8,ｺｲﾙ巻数=13,NO.3

 1
90506-09055

NCZ2#

線径=0.9,ｺｲﾙ巻数=21,NO.1

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

NCZ2#

線径=1.2,ｺｲﾙ巻数=8.5,NO.2

 1
90506-18067

NCZ2#

線径=1.8,ｺｲﾙ巻数=13,NO.3

 1
90506-09055

NCZ2#

線径=0.9,ｺｲﾙ巻数=21,NO.1

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

NCZ2#

線径=1.2,ｺｲﾙ巻数=8.5,NO.2

 1
90506-18067

NCZ2#

線径=1.8,ｺｲﾙ巻数=13,NO.3

 1
90506-09055

NCZ2#

線径=0.9,ｺｲﾙ巻数=21,NO.1

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B6

NCZ2#

MD.GRAY,TRIM1#

 1
53601-52010E2

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-46020

NCZ2#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-09043

NCZ2#

 1
Common parts
53455-52010
90119-06423
90119-08716
