NCZ25-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )

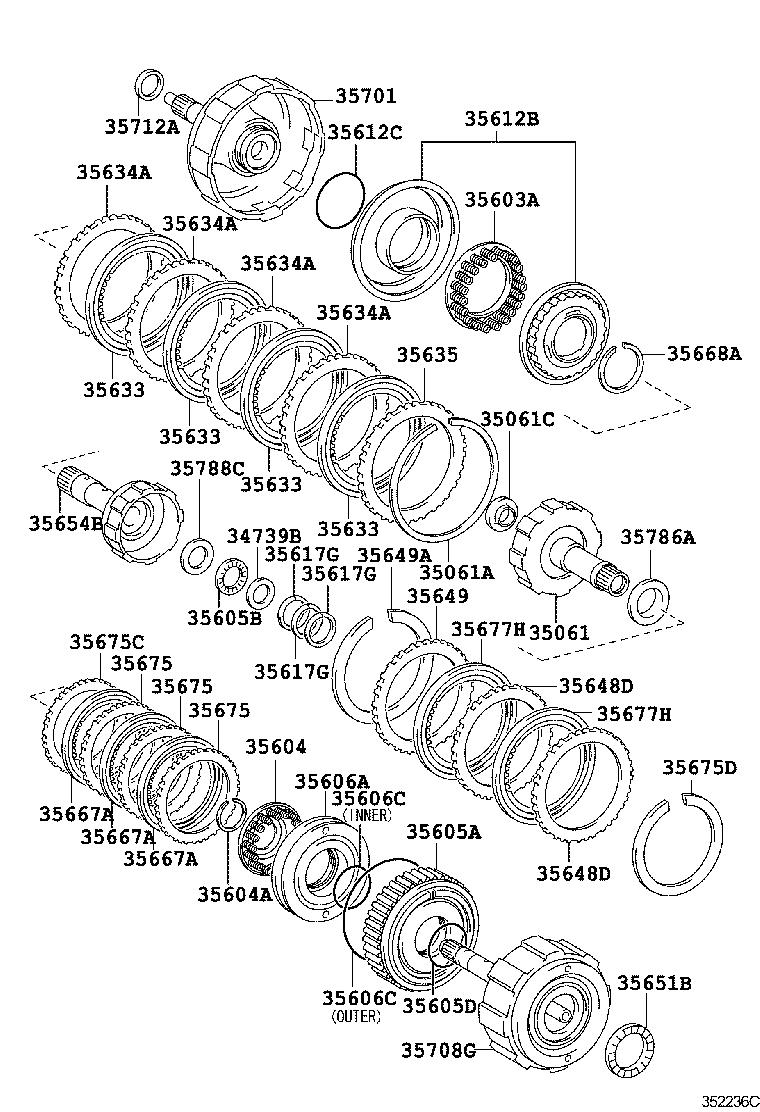

Click highlighted areas on diagram
U340E,U340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34739B - RACE, THRUST BEARING(FOR C2 HUB) | ||||
| 34739-52010 |
NCZ2# |
1 | ||
| 35061 - HUB SUB-ASSY, FORWARD CLUTCH | ||||
| 35061-52020 |
NCZ2# |
1 | ||
| 35061A - RING, HOLE SNAP(FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99049 |
NCZ2# |
1 | ||
| 35061C - BEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB) | ||||
| 90374-21003 |
NCZ2# |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-52020 |
NCZ2# |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-52020 |
NCZ2# |
1 | ||
| 35604A - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON) | ||||
| 90520-31012 |
NCZ2# |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-52020 |
NCZ2# KOYO |
1 | ||
| 35605-52010 |
NCZ2# NOK |
1 | ||
| 35605B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-22008 |
NCZ2# |
1 | ||
| 35605D - RING, O(FOR DIRECT CLUTCH DRUM) | ||||
| 90301-42005 |
NCZ2# |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-52020 |
NCZ2# |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99120 |
NCZ2# 外側 |
1 | ||
| 90301-41008 |
NCZ2# 内側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99120 |
NCZ2# 外側 |
1 | ||
| 90301-41008 |
NCZ2# 内側 |
1 | ||
| 35612B - PISTON, FORWARD CLUTCH | ||||
| 35063-52010 |
NCZ2# |
1 | ||
| 35612C - RING, O(FOR FORWARD CLUTCH PISTON) | ||||
| 90301-58003 |
NCZ2# |
1 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-52020 |
NCZ2# |
3 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-52020 |
NCZ2# |
3 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-52020 |
NCZ2# |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NCZ2# |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NCZ2# |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NCZ2# |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NCZ2# |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-52020 |
NCZ2# 厚さ=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-52020 |
NCZ2# 厚さ=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-52020 |
NCZ2# 厚さ=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-52020 |
NCZ2# 厚さ=1.9 |
4 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-52050 |
NCZ2# 厚さ=3.0,ﾏｰｸ無し |
1 | ||
| 35635-52080 |
NCZ2# 厚さ=3.6,ﾏｰｸ 3 |
1 | ||
| 35635-52060 |
NCZ2# 厚さ=3.2,ﾏｰｸ 1 |
1 | ||
| 35635-52070 |
NCZ2# 厚さ=3.4,ﾏｰｸ 2 |
1 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-52020 |
NCZ2# |
2 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-52020 |
NCZ2# |
2 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-52020 |
NCZ2# 厚さ=3.0 |
1 | ||
| 35649-52050 |
NCZ2# 厚さ=3.6 |
1 | ||
| 35649-52030 |
NCZ2# 厚さ=3.2 |
1 | ||
| 35649-52040 |
NCZ2# 厚さ=3.4 |
1 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99052 |
NCZ2# |
1 | ||
| 35651B - BEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM) | ||||
| 90374-43005 |
NCZ2# ﾌﾞﾗｯｸ |
1 | ||
| 90374-43004 |
NCZ2# ﾌﾞﾗｳﾝ |
1 | ||
| 35654B - HUB, DIRECT CLUTCH | ||||
| 35062-52010 |
NCZ2# |
1 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-52020 |
NCZ2# |
3 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-52020 |
NCZ2# |
3 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-52020 |
NCZ2# |
3 | ||
| 35668A - RING, SNAP(FOR CLUTCH BALANCER) | ||||
| 90520-39024 |
NCZ2# |
1 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-52040 |
NCZ2# 厚さ=3.0 |
6 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-52040 |
NCZ2# 厚さ=3.0 |
6 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-52040 |
NCZ2# 厚さ=3.0 |
6 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-52060 |
NCZ2# 厚さ=3.4 |
1 | ||
| 35675-52050 |
NCZ2# 厚さ=3.2 |
1 | ||
| 35675-52040 |
NCZ2# 厚さ=3.0 |
2 | ||
| 35675-52070 |
NCZ2# 厚さ=3.6 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99051 |
NCZ2# |
1 | ||
| 35677H - DISC, REVERCE CLUTCH | ||||
| 35677-52020 |
NCZ2# |
2 | ||
| 35677-52050 |
NCZ2# |
2 | ||
| 35677H - DISC, REVERCE CLUTCH | ||||
| 35677-52020 |
NCZ2# |
2 | ||
| 35677-52050 |
NCZ2# |
2 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-52020 |
NCZ2# |
1 | ||
| 35708G - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-52030 |
NCZ2# |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-52020 |
NCZ2# |
1 | ||
| 35786A - RACE, THRUST BEARING, NO.1 | ||||
| 35786-52010 |
NCZ2# |
1 | ||
| 35788C - RACE, THRUST BEARING, NO.3 | ||||
| 35788-52010 |
NCZ2# |
1 | ||
