NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304-1006)

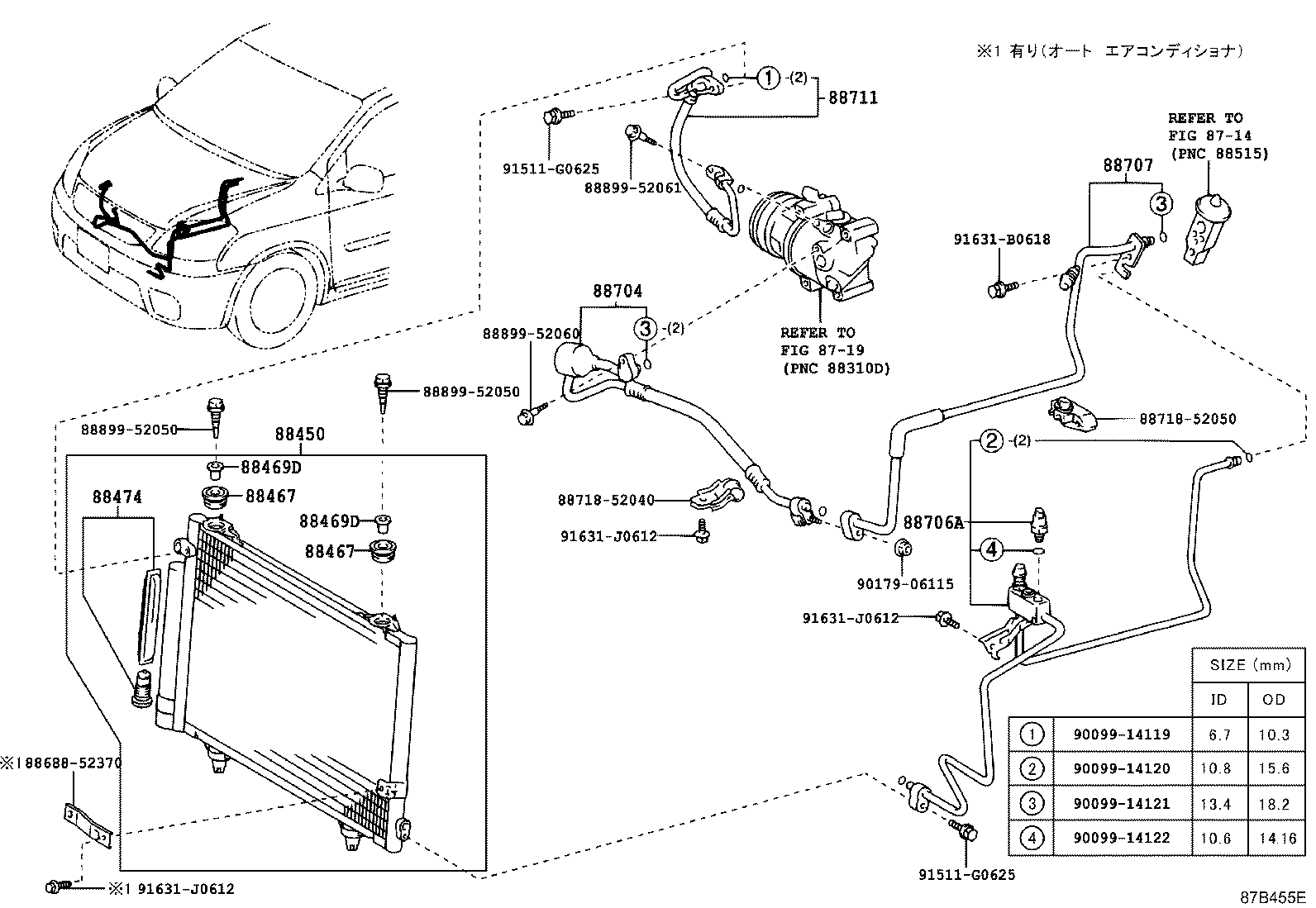

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-52112 |
NCZ2# |
1 | ||
| 88450-52111 |
NCZ2# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCZ2# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCZ2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCZ2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCZ2# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCZ2# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-46040 |
NCZ2# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52040 |
NCZ2# |
1 | ||
| 88706-52200 |
NCZ20 VSC−有り |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-46010 |
NCZ20 VSC−有り |
1 | ||
| 88707-52030 |
NCZ2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52091 |
NCZ2# |
1 | ||
| 88711-52090 |
NCZ2# |
1 | ||
| Common parts | ||||
| 88718-52040 | ||||
| 88718-52050 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 88899-52061 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90179-06115 | ||||
| 91511-G0625 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1006- )

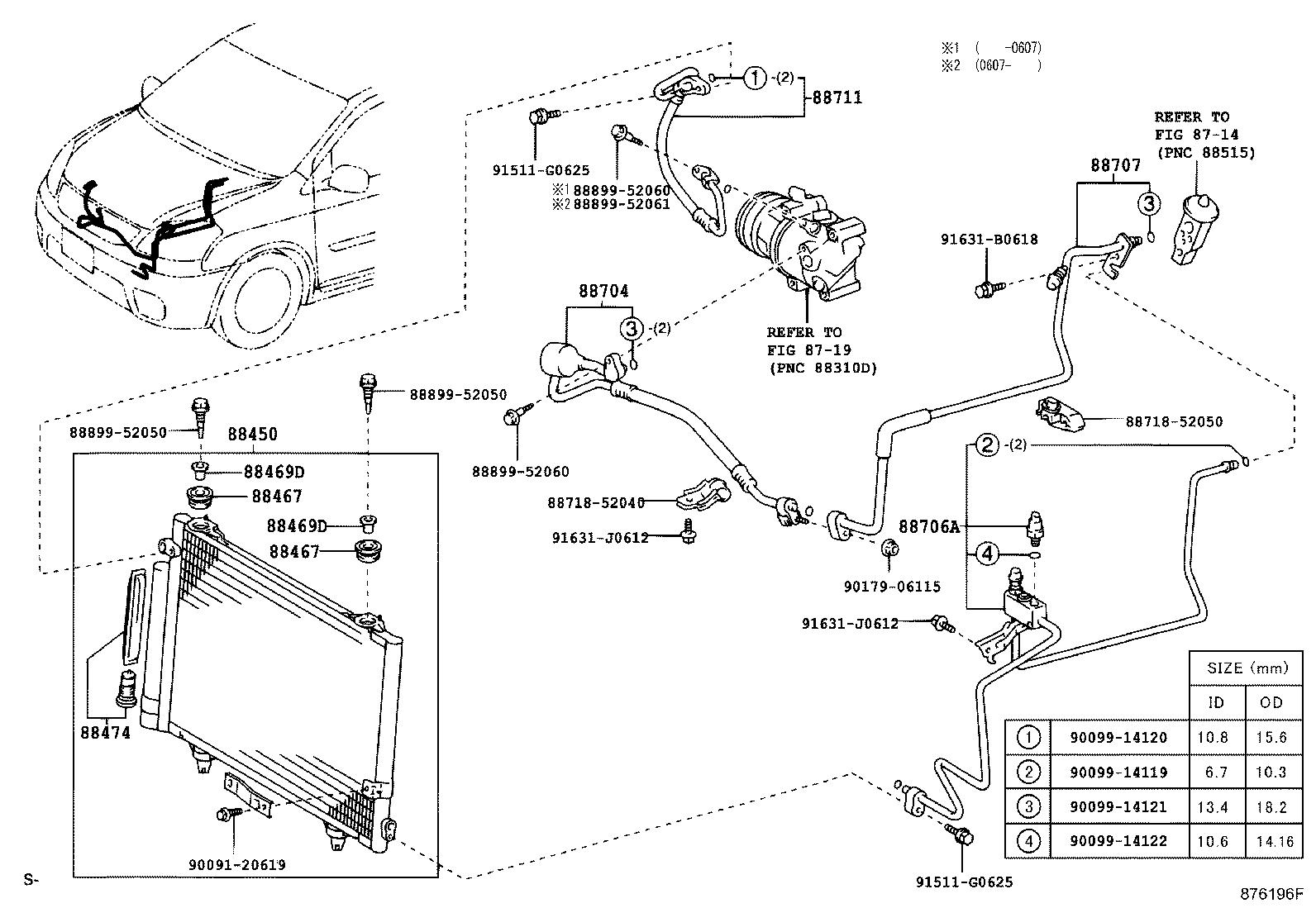

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-52112 |
NCZ2# |
1 | ||
| 88450-52111 |
NCZ2# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCZ2# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCZ2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCZ2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCZ2# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCZ2# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-46040 |
NCZ2# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52040 |
NCZ2# |
1 | ||
| 88706-52200 |
NCZ20 VSC−有り |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-46010 |
NCZ20 VSC−有り |
1 | ||
| 88707-52030 |
NCZ2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52091 |
NCZ2# |
1 | ||
| 88711-52090 |
NCZ2# |
1 | ||
| Common parts | ||||
| 88688-52370 | ||||
| 88718-52040 | ||||
| 88718-52050 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 88899-52061 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90179-06115 | ||||
| 91511-G0625 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
