NCZ20-AHPXK (2003)
Toyota Raum

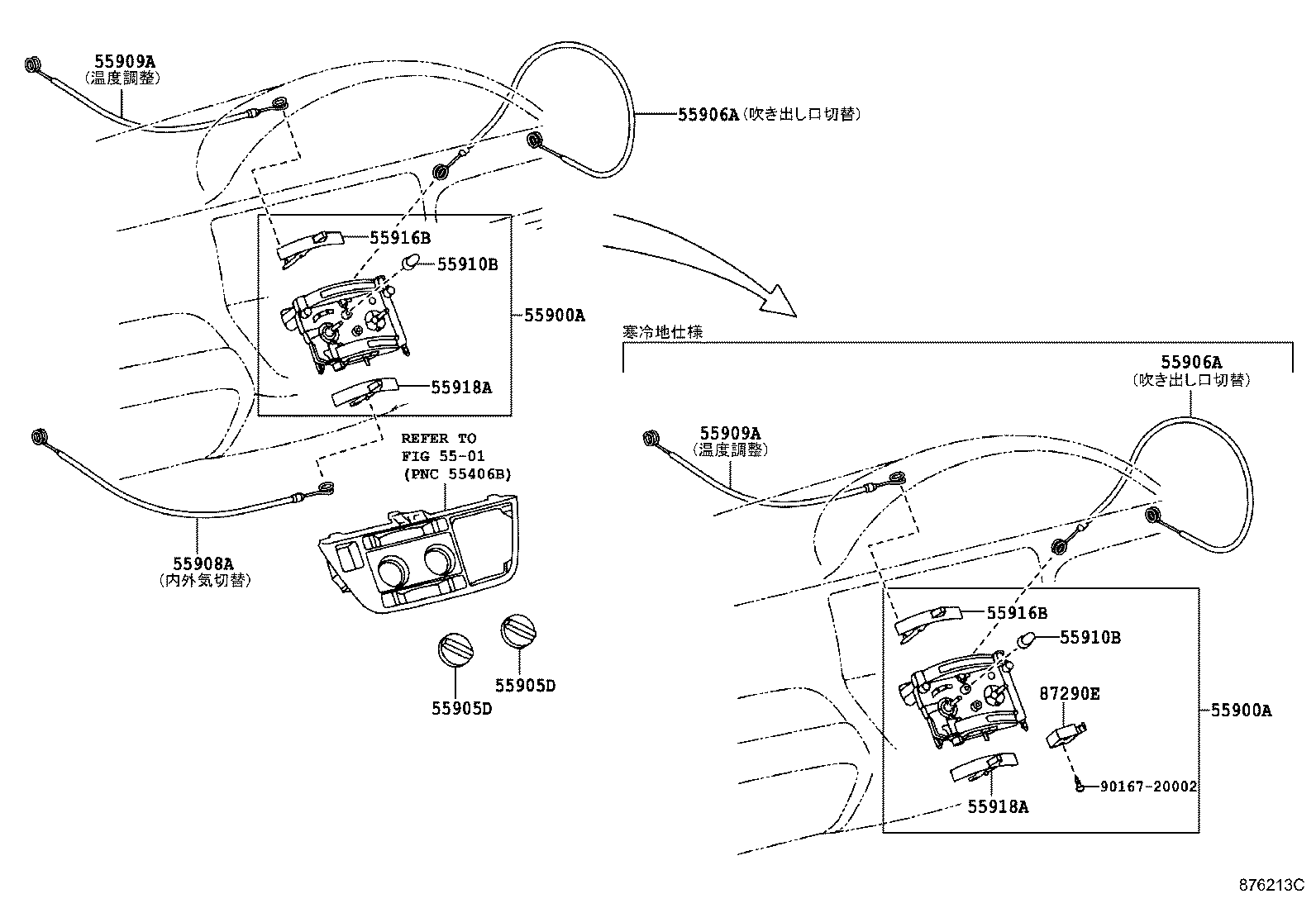

ILLUST NO. 1 OF 3(0304- )
ｺﾝﾄﾛ-ﾙ--ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-46090 |
NCZ2# |
1 | ||
| 55900-46101 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55900-46100 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55900-46091 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55900-46090 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55900-46091 |
NCZ2# |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-46090 |
NCZ2# |
1 | ||
| 55900-46101 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55900-46100 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55900-46091 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55900-46090 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55900-46091 |
NCZ2# |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-46201 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
2 | ||
| 55905-46200 |
NCZ2# |
2 | ||
| 55905-46200 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
2 | ||
| 55905-46201 |
NCZ2# |
2 | ||
| 55905-46250 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
2 | ||
| 55905-46250 |
NCZ2# |
2 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-46201 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
2 | ||
| 55905-46200 |
NCZ2# |
2 | ||
| 55905-46200 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
2 | ||
| 55905-46201 |
NCZ2# |
2 | ||
| 55905-46250 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
2 | ||
| 55905-46250 |
NCZ2# |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55906-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55906-46020 |
NCZ2# |
1 | ||
| 55906-46021 |
NCZ2# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55906-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55906-46020 |
NCZ2# |
1 | ||
| 55906-46021 |
NCZ2# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-46020 |
NCZ2# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-46020 |
NCZ2# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-46020 |
NCZ2# |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01092 |
NCZ2# |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01092 |
NCZ2# |
1 | ||
| 55916B - CONTROL ASSY, HEATER | ||||
| 55916-46010 |
NCZ2# |
1 | ||
| 55916-46010 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55916-46011 |
NCZ2# |
1 | ||
| 55916-46011 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55916B - CONTROL ASSY, HEATER | ||||
| 55916-46010 |
NCZ2# |
1 | ||
| 55916-46010 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55916-46011 |
NCZ2# |
1 | ||
| 55916-46011 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-46010 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55918-46021 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55918-46011 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55918-46020 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55918-46010 |
NCZ2# |
1 | ||
| 55918-46011 |
NCZ2# |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-46010 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55918-46021 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55918-46011 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55918-46020 |
NCZ2# 寒冷地仕様 |
1 | ||
| 55918-46010 |
NCZ2# |
1 | ||
| 55918-46011 |
NCZ2# |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCZ2# 寒冷地仕様 |
1 | ||
| 87290-52010 |
NCZ2# 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90167-20002 | ||||
| Linked diagrams | ||||
| 5501 | ||||

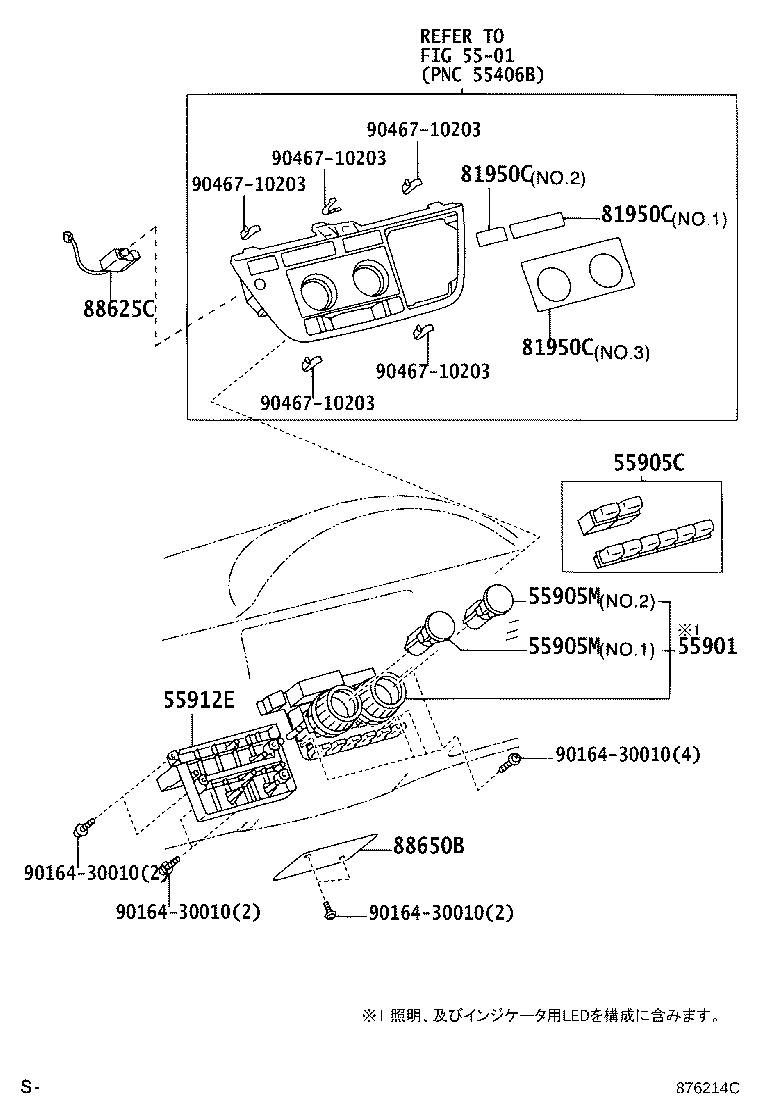

ILLUST NO. 1 OF 3(0304- )
ｺﾝﾄﾛ-ﾙ--ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-46010 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55901-46011 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-46230 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55905-46231 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55905M - KNOB SUB-ASSY, CONTROL | ||||
| 55905-46210 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 55905-46220 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 55905-46211 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 55905-46221 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 55905M - KNOB SUB-ASSY, CONTROL | ||||
| 55905-46210 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 55905-46220 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 55905-46211 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 55905-46221 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 55912E - BASE, HEATER CONTROL, LOWER | ||||
| 55912-52060 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55912-46010 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 81950-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 81950-46041 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.3 |
1 | ||
| 81950-46040 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.3 |
1 | ||
| 81950-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 81950-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 81950-46041 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.3 |
1 | ||
| 81950-46040 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.3 |
1 | ||
| 81950-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.2 |
1 | ||
| 81950-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 81950-46041 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.3 |
1 | ||
| 81950-46040 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.3 |
1 | ||
| 81950-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ,NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88790-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 88650-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| Common parts | ||||
| 90164-30010 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 5501 | ||||

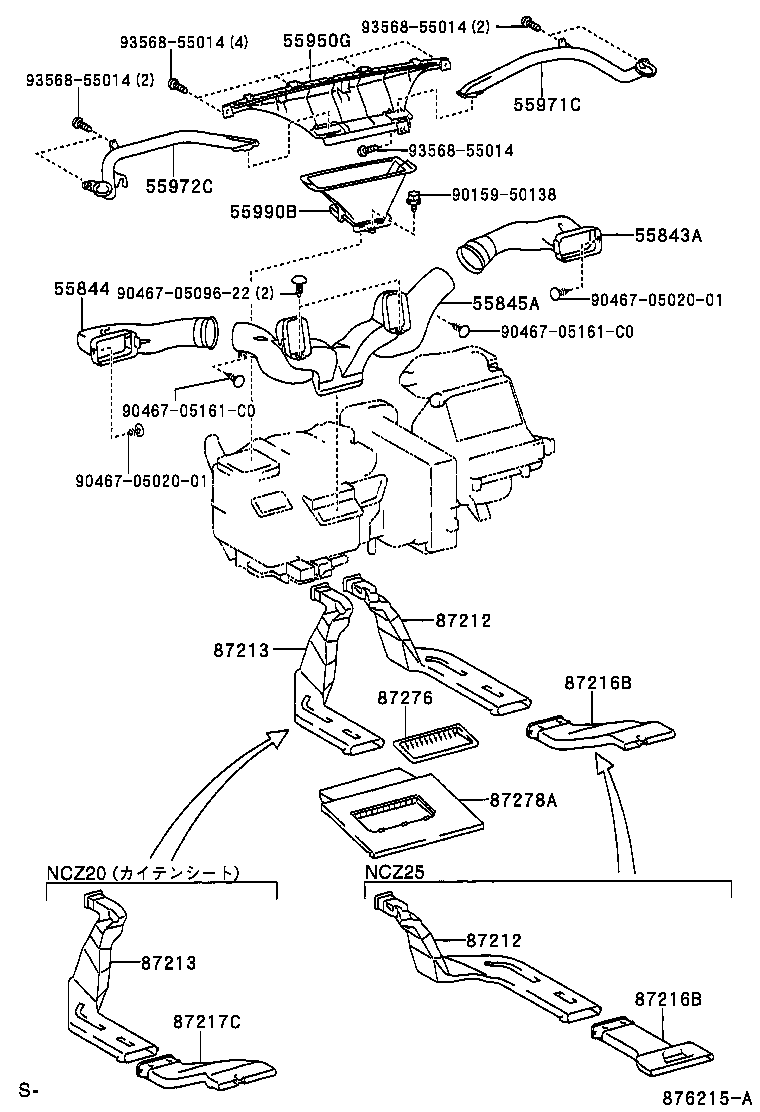

ILLUST NO. 2 OF 3(0304- )
ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-46020 |
NCZ2# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-46020 |
NCZ2# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-46020 |
NCZ2# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-46020 |
NCZ2# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-46020 |
NCZ2# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-46020 |
NCZ2# |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-46010 |
NCZ2# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-46020 |
NCZ20 寒冷地仕様 |
1 | ||
| 87212-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-46020 |
NCZ20 寒冷地仕様 |
1 | ||
| 87212-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87213-46020 |
NCZ2# 寒冷地仕様 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87213-46020 |
NCZ2# 寒冷地仕様 |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87216-46020 |
NCZ20 寒冷地仕様 |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87216-46020 |
NCZ20 寒冷地仕様 |
1 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-46020 |
NCZ20 寒冷地仕様&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 87276 - DUCT, FLOOR HEATER AIR, NO.1 LH | ||||
| 87276-46010E0 |
NCZ2# 寒冷地仕様,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 87276-46010B0 |
NCZ2# 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 87278A - DUCT, FLOOR HEATER AIR, NO.2 LH | ||||
| 87278-46010 |
NCZ2# 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90467-0502001 | ||||
| 90467-0509622 | ||||
| 90467-05161C0 | ||||
| 93568-55014 | ||||

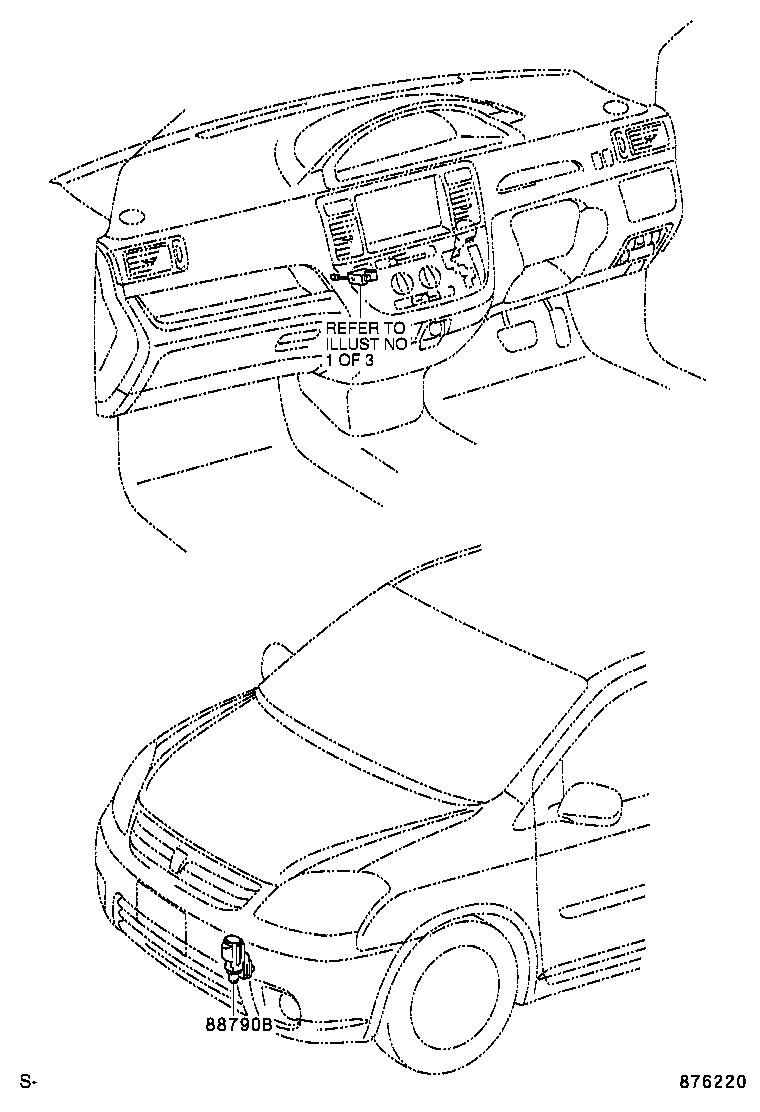

ILLUST NO. 3 OF 3(0304- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
