NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

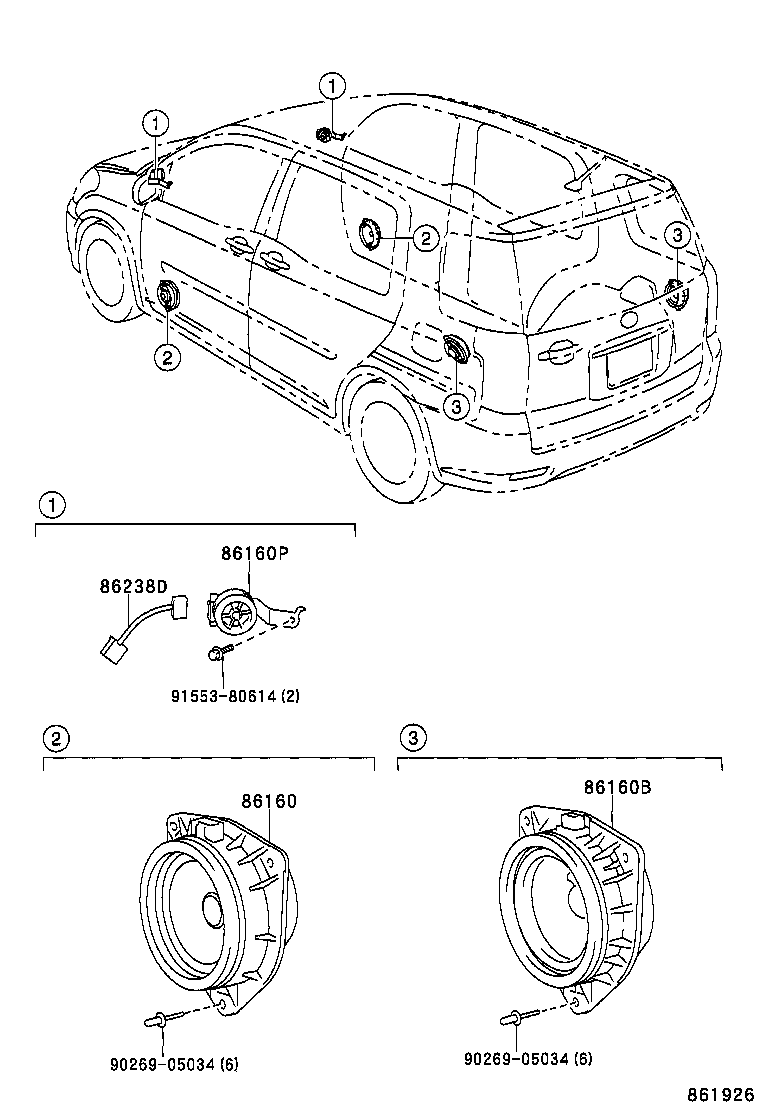

Click highlighted areas on diagram

diagram 86160 86160B 86160P 86238D 9026905034 9026905034 9155380614
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-2B580

NCZ2#

 2
86160-22A10

NCZ2#

 2
86160-46060

NCZ2#

 2
86160B - SPEAKER ASSY, REAR
86160-13080

NCZ2#

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ

 2
86160-52220

NCZ2#

ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 2
86160-52220

NCZ2#

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ

 2
86160-52220

NCZ2#

ｵｰﾃﾞｨｵ−CD+MD+6ｽﾋﾟｰｶ

 2
86160-13080

NCZ2#

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ

 2
86160-13080

NCZ2#

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-46040

NCZ2#

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ,右側

 1
86160-46050

NCZ2#

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ,左側

 1
86160-46050

NCZ2#

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ,左側

 1
86160-46050

NCZ2#

ｵｰﾃﾞｨｵ−CD+MD+6ｽﾋﾟｰｶ,左側

 1
86160-46040

NCZ2#

ｵｰﾃﾞｨｵ−CD+MD+6ｽﾋﾟｰｶ,右側

 1
86160-46040

NCZ2#

ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き,右側

 1
86160-46050

NCZ2#

ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き,左側

 1
86160-46040

NCZ2#

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ,右側

 1
86238D - WIRE, SPEAKER
86238-46010

NCZ2#

ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 2
86238-46010

NCZ2#

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ

 2
86238-46010

NCZ2#

ｵｰﾃﾞｨｵ−CD+MD+6ｽﾋﾟｰｶ

 2
86238-46010

NCZ2#

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 2
Common parts
90269-05034
91553-80614
