NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

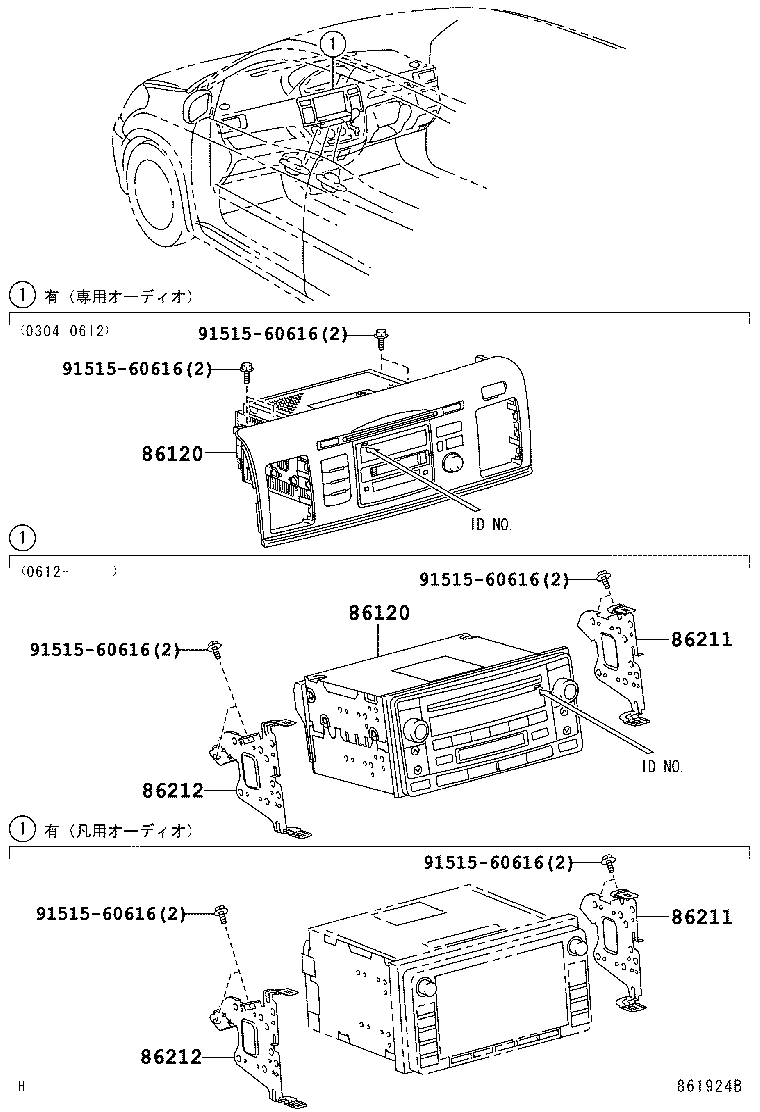

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

diagram 86120 86120 86211 86211 86212 86212 9151560616 9151560616 9151560616 9151560616 9151560616 9151560616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-46041

NCZ2#

PIONEER,ID=P5822,ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ

 1
86120-58090

NCZ2#

MATSUSHITA,ID=50345

 1
86120-46041

NCZ2#

PIONEER,ID=P5822

 1
86120-58090

NCZ2#

MATSUSHITA,ID=50345,ｵｰﾃﾞｨｵ−CD+MD+6ｽﾋﾟｰｶ

 1
86120-46040

NCZ2#

PIONEER,ID=P5822

 1
86120-46040

NCZ2#

PIONEER,ID=P5822,ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ

 1
86120 - RECEIVER ASSY, RADIO
86120-46041

NCZ2#

PIONEER,ID=P5822,ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ

 1
86120-58090

NCZ2#

MATSUSHITA,ID=50345

 1
86120-46041

NCZ2#

PIONEER,ID=P5822

 1
86120-58090

NCZ2#

MATSUSHITA,ID=50345,ｵｰﾃﾞｨｵ−CD+MD+6ｽﾋﾟｰｶ

 1
86120-46040

NCZ2#

PIONEER,ID=P5822

 1
86120-46040

NCZ2#

PIONEER,ID=P5822,ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ

 1
86211 - BRACKET, RADIO, NO.1
86211-46050

NCZ2#

 1
86211 - BRACKET, RADIO, NO.1
86211-46050

NCZ2#

 1
86212 - BRACKET, RADIO, NO.2
86212-46050

NCZ2#

 1
86212 - BRACKET, RADIO, NO.2
86212-46050

NCZ2#

 1
Common parts
91515-60616

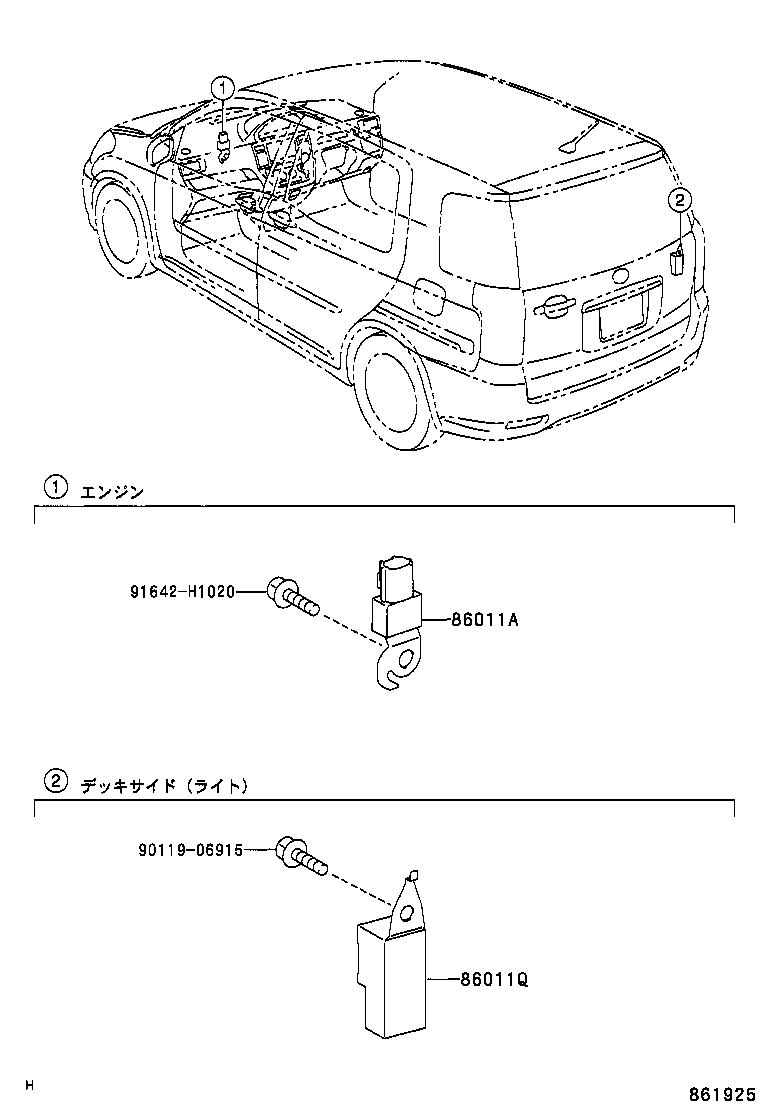

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011Q 9011906915 91642H1020
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04141

NCZ2#

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

NCZ2#

 1
Common parts
90119-06915
91642-H1020
