NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304-0910)

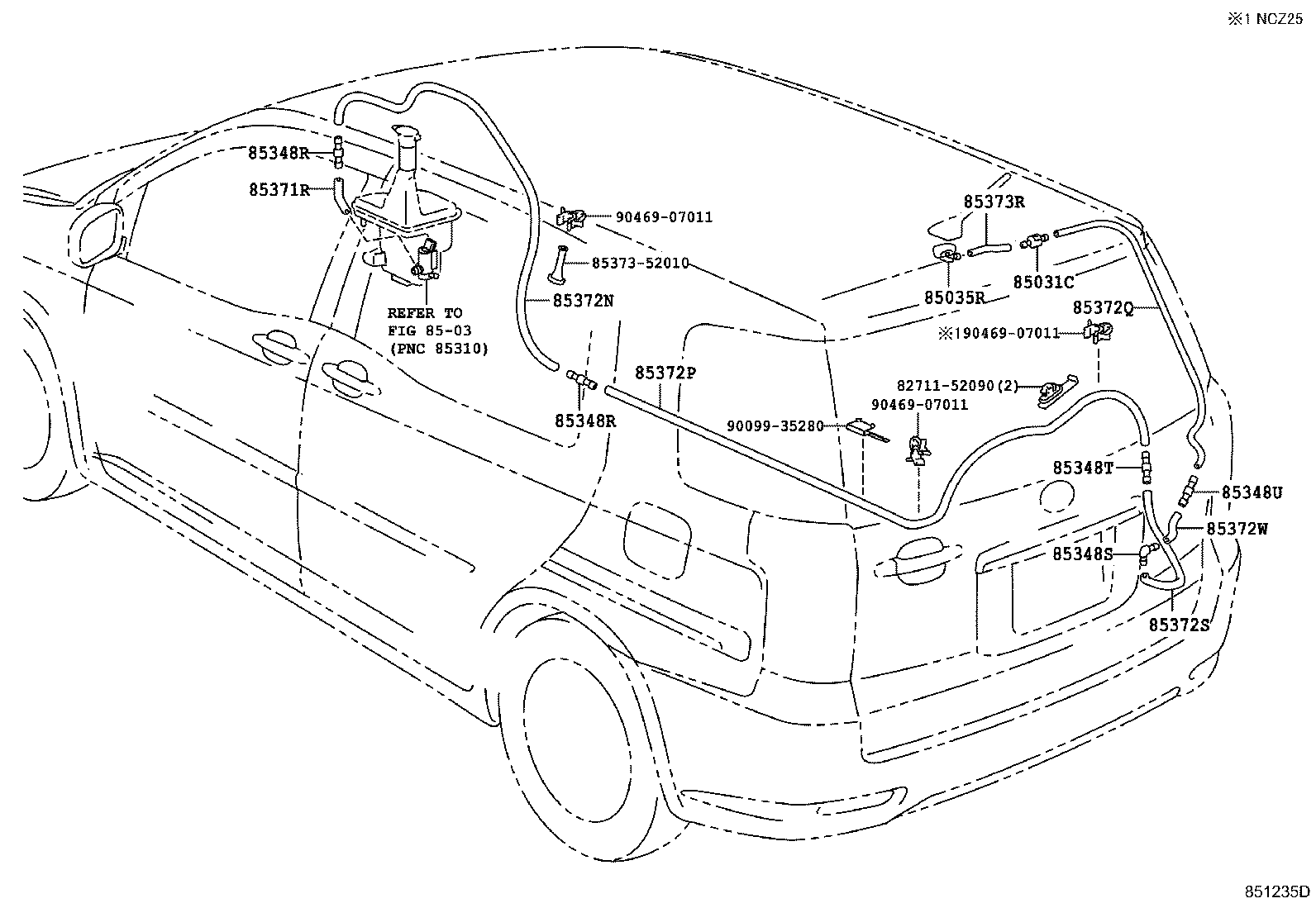

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85321-26020 |
NCZ2# |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-46010 |
NCZ2# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCZ2# |
2 | ||
| 85349-89122 |
NCZ2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCZ2# |
2 | ||
| 85349-89122 |
NCZ2# |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
NCZ2# |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NCZ2# |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
NCZ2# |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
NCZ2# *H,L=50 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06006 |
NCZ20 *H,L=1100 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62024 |
NCZ2# 長さ=3300 |
1 | ||
| 90446-06292 |
NCZ2# |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
NCZ2# *H,L=960 |
1 | ||
| 90099-33080 |
NCZ2# *H,L=960 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33299 |
NCZ2# *H,L=720 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33299 |
NCZ2# *H,L=50 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NCZ2# *H,L=150 |
1 | ||
| Common parts | ||||
| 82711-52090 | ||||
| 85373-52010 | ||||
| 90099-35280 | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8503 | ||||
(0910- )

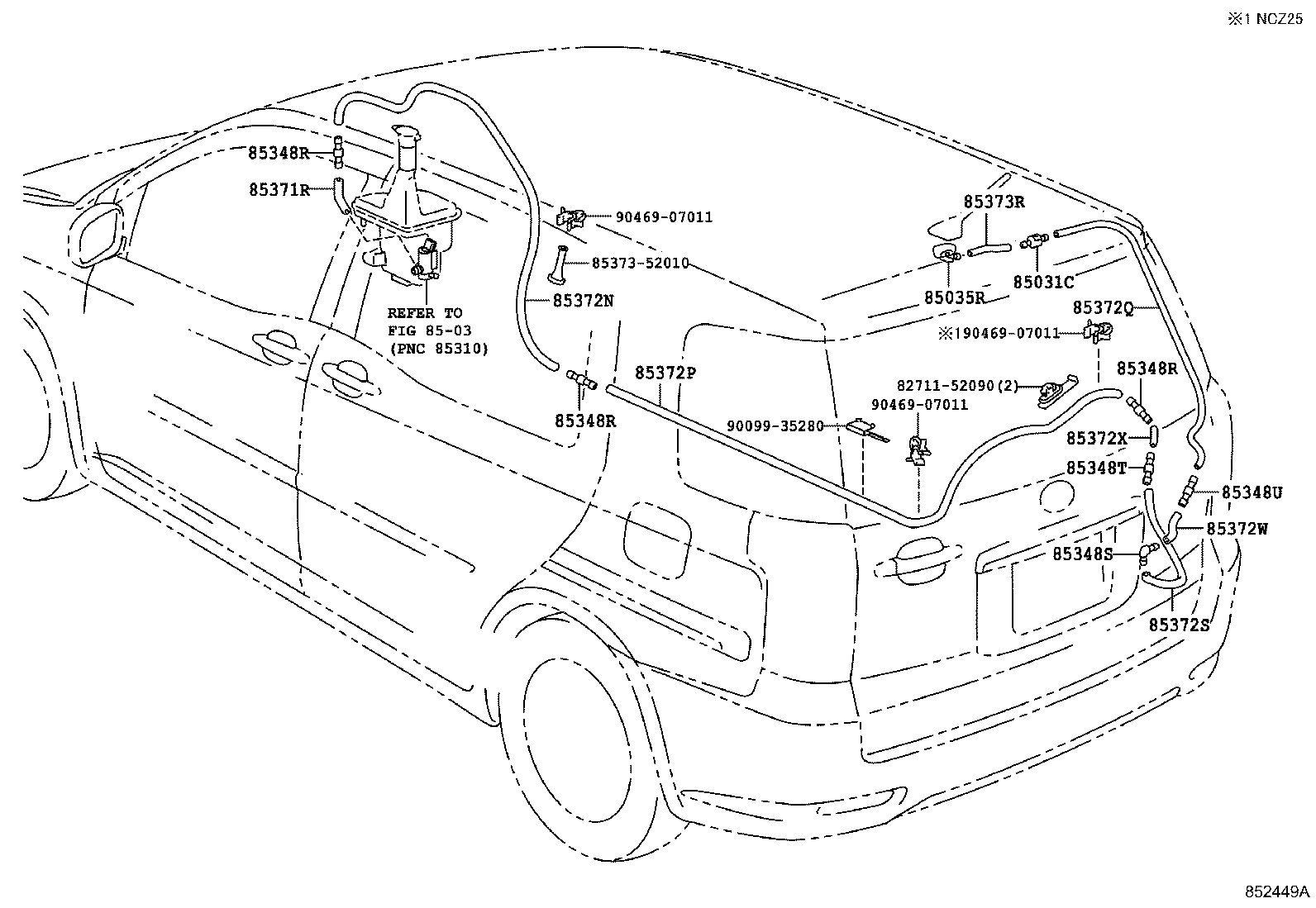

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85321-26020 |
NCZ2# |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-46010 |
NCZ2# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCZ2# |
2 | ||
| 85349-89122 |
NCZ2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCZ2# |
2 | ||
| 85349-89122 |
NCZ2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCZ2# |
2 | ||
| 85349-89122 |
NCZ2# |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
NCZ2# |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NCZ2# |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
NCZ2# |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
NCZ2# *H,L=50 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06006 |
NCZ20 *H,L=1100 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62024 |
NCZ2# 長さ=3300 |
1 | ||
| 90446-06292 |
NCZ2# |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
NCZ2# *H,L=960 |
1 | ||
| 90099-33080 |
NCZ2# *H,L=960 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33299 |
NCZ2# *H,L=720 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33299 |
NCZ2# *H,L=50 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-62052 |
NCZ2# 長さ=50 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NCZ2# *H,L=150 |
1 | ||
| Common parts | ||||
| 82711-52090 | ||||
| 85373-52010 | ||||
| 90099-35280 | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8503 | ||||
