NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

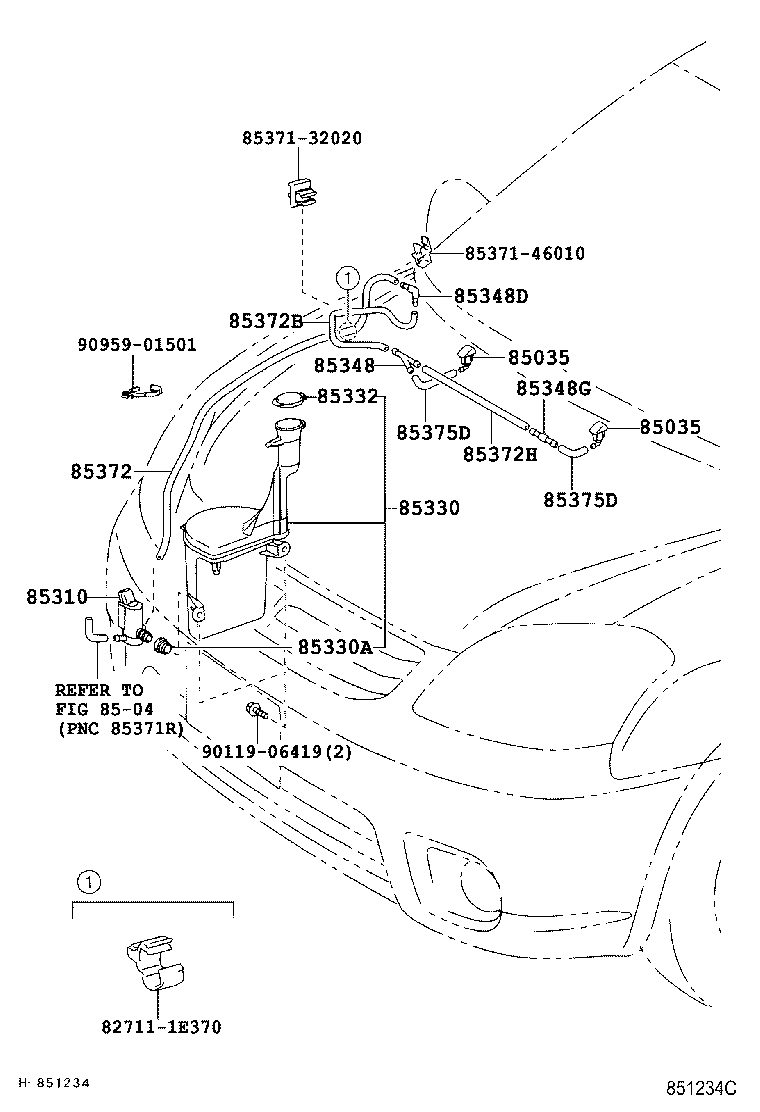

Click highlighted areas on diagram

diagram 827111E370 85035 85035 8504 85310 85330 85330A 85332 85348 85348D 85348G 8537132020 8537146010 85372 85372B 85372H 85375D 85375D 9011906419 9095901501
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-46020

NCZ2#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-46020

NCZ2#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10290

NCZ2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-52030

NCZ2#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

NCZ2#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42011

NCZ2#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390

NCZ2#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

NCZ2#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

NCZ2#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33775

NCZ2#

*H,L=1140

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

NCZ2#

*H,L=510

 1
90099-33080

NCZ2#

*H,L=510

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

NCZ2#

*H,L=490

 1
90099-33080

NCZ2#

*H,L=490

 1
85375D - TUBE,RUBBER
90099-33723

NCZ2#

 2
85375D - TUBE,RUBBER
90099-33723

NCZ2#

 2
Common parts
82711-1E370
85371-32020
85371-46010
90119-06419
90959-01501
Linked diagrams
8504
