NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

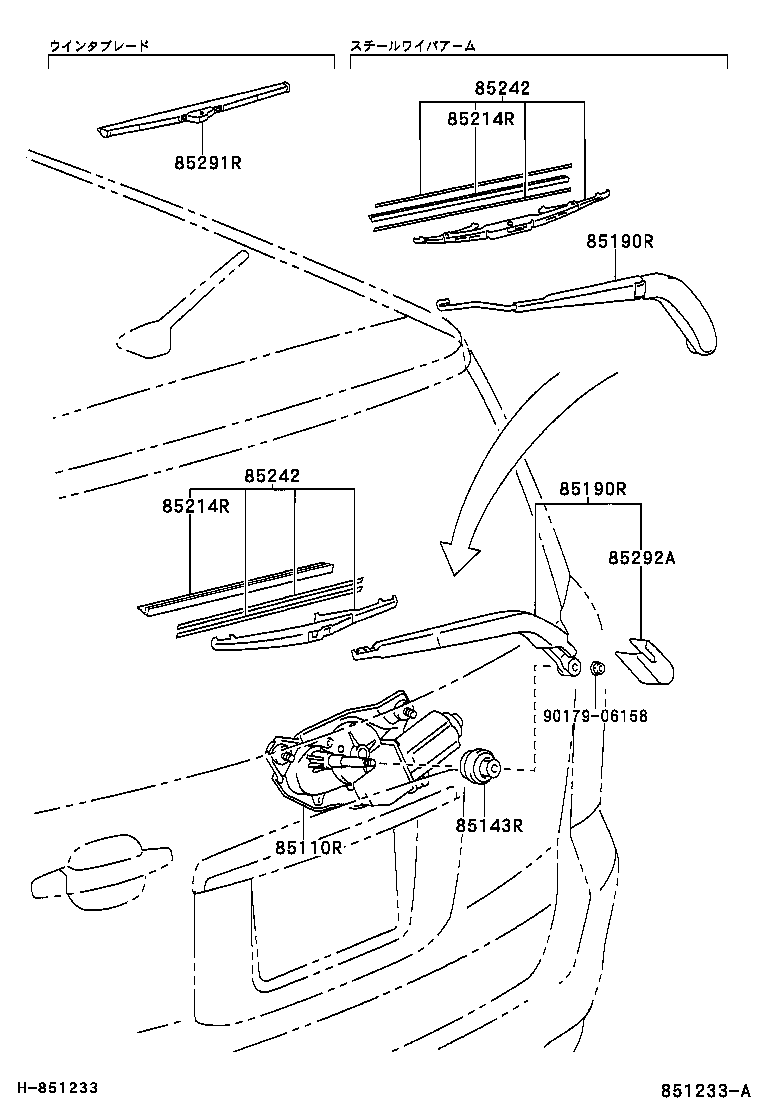

Click highlighted areas on diagram

diagram 85110R 85143R 85190R 85190R 85214R 85214R 85242 85242 85291R 85292A 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-46020

NCZ2#

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-48010

NCZ2#

 1
85190R - ARM ASSY, REAR WIPER
85241-44020

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85241-63010

NCZ2#

 1
85190R - ARM ASSY, REAR WIPER
85241-44020

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85241-63010

NCZ2#

 1
85214R - RUBBER, REAR WIPER
85214-30280

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85214R - RUBBER, REAR WIPER
85214-30280

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85242 - BLADE, RR WIPER
85242-13060

NCZ2#

 1
85242-30040

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85242 - BLADE, RR WIPER
85242-13060

NCZ2#

 1
85242-30040

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85291R - BLADE,REAR WIPER, WINTER
85291-53040

NCZ2#

ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-28030

NCZ2#

 1
85292-28030

NCZ2#

 1
Common parts
90179-06158
