NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

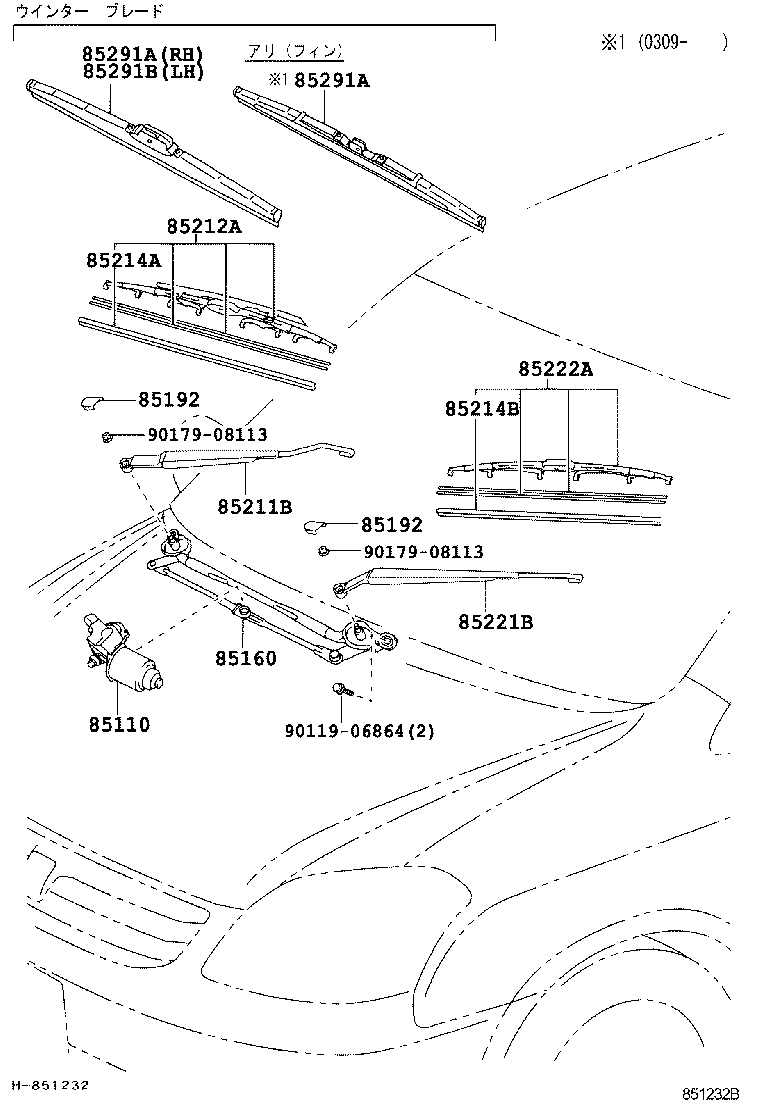

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906864 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-13080

NCZ2#

寒冷地仕様

 1
85110-52180

NCZ2#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-46020

NCZ2#

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

NCZ2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

NCZ2#

 2
85211B - ARM, FRONT WIPER, RH
85211-46030

NCZ2#

 1
85212A - BLADE, FR WIPER, RH
85212-46010

NCZ2#

 1
85214A - RUBBER, WIPER, RH
85214-48010

NCZ2#

 1
85214B - RUBBER, WIPER, LH
85214-46011

NCZ2#

 1
85214-46010

NCZ2#

 1
85221B - ARM, FRONT WIPER, LH
85221-46020

NCZ2#

 1
85222A - BLADE, FR WIPER, LH
85222-46010

NCZ2#

 1
85222-46011

NCZ2#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22090

NCZ2#

 1
85291-22100

NCZ2#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-22100

NCZ2#

有り(ﾌｨﾝ)

 1
85291-22090

NCZ2#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22090

NCZ2#

 1
85291-22100

NCZ2#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-22100

NCZ2#

有り(ﾌｨﾝ)

 1
85291-22090

NCZ2#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-33050

NCZ2#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
Common parts
90119-06864
90179-08113
