NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )NCZ20

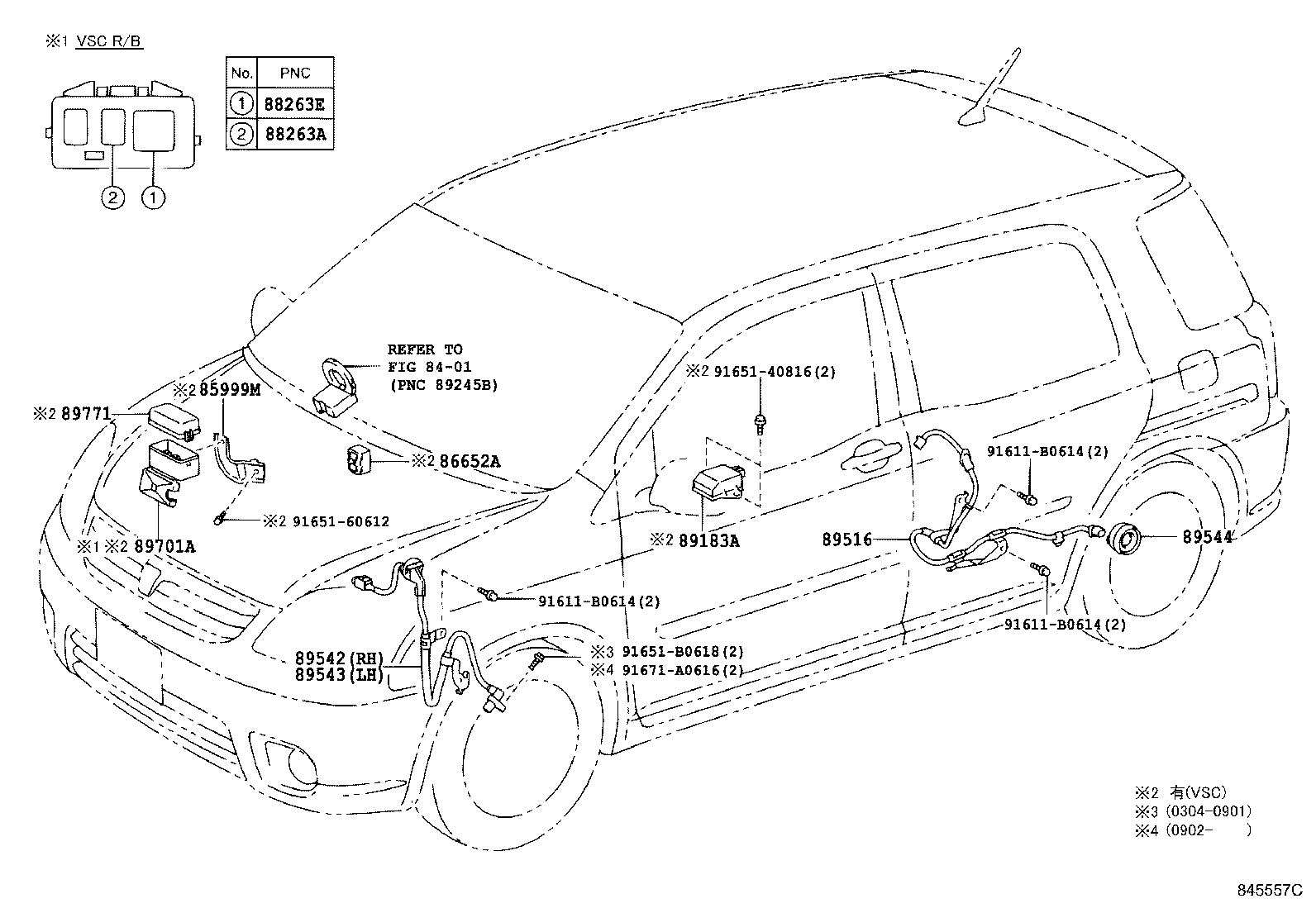

Click highlighted areas on diagram

diagram 8401 85999M 86652A 88263A 88263E 89183A 89516 89542 89543 89544 89701A 89771 91611B0614 91611B0614 91611B0614 9165140816 9165160612 91651B0618 91671A0616
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-52020

NCZ20

VSC−有り

 1
86652A - BUZZER ASSY, SKID CONTROL
86652-48010

NCZ20

VSC−有り

 1
88263A - RELAY, SKID CONTROL
88263-32070

NCZ20

VSC−有り

 1
88263E - RELAY, SKID CONTROL NO.2
88263-21010

NCZ20

VSC−有り

 1
89183A - SENSOR, YAWRATE
89183-48010

NCZ20

VSC−有り

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-52020

NCZ20

左側

 1
89516-52010

NCZ20

右側

 1
89542 - SENSOR, SPEED, FRONT RH
89542-52010

NCZ2#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52010

NCZ2#

 1
89544 - SENSOR, SKID CONTROL
89544-12010

NCZ20

KOYO

 2
89544-52030

NCZ20

NSK

 2
89701A - BLOCK SUB-ASSY, ABS RELAY
89701-21020

NCZ20

VSC−有り

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-21020

NCZ20

VSC−有り

 1
Common parts
91611-B0614
91651-40816
91651-60612
91651-B0618
91671-A0616
Linked diagrams
8401
