NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

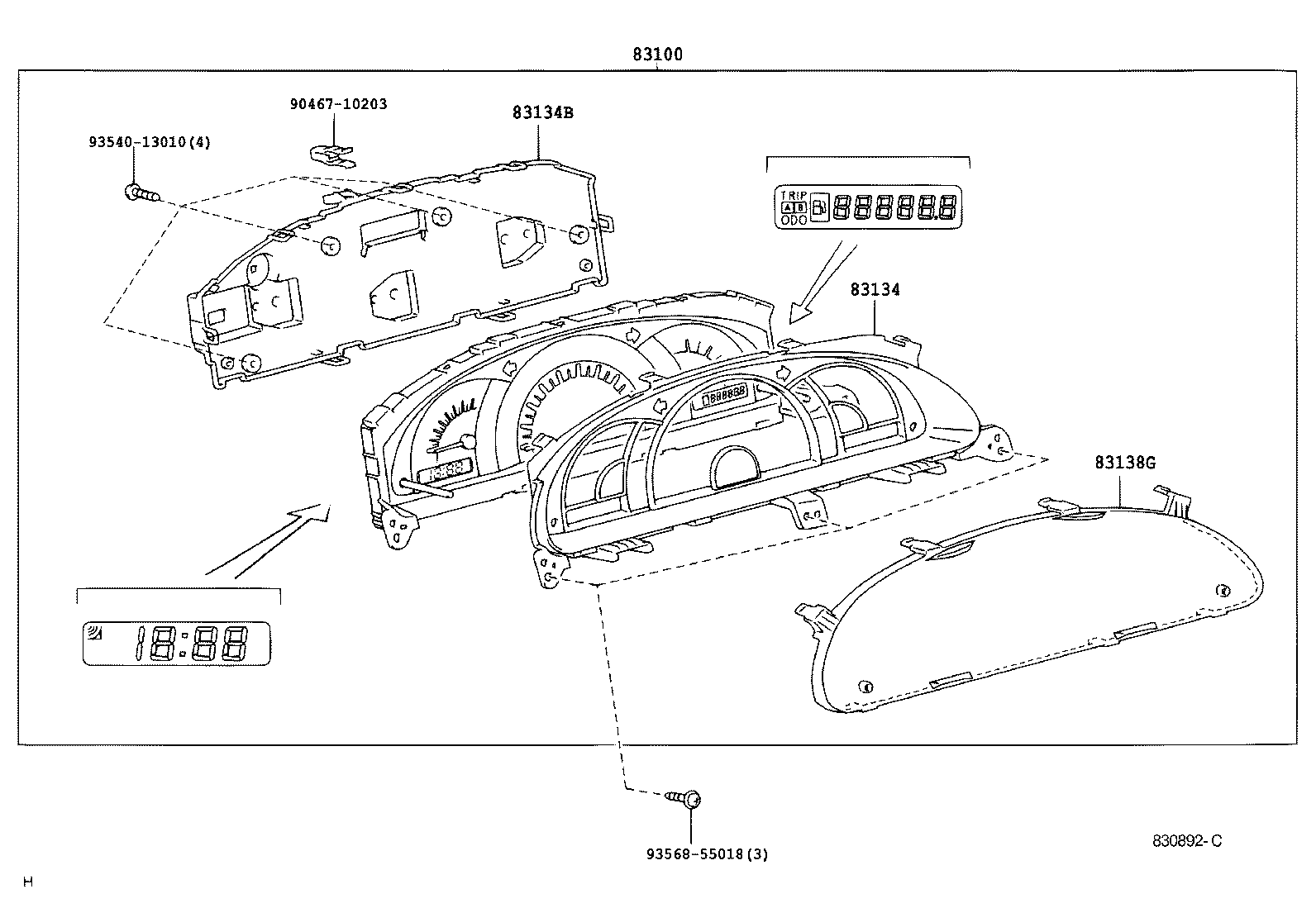

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾒ-ﾀ

diagram 83100 83134 83134B 83138G 9046710203 9354013010 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-46050

NCZ2#

YAZAKI,G PACKAGE

 1
83800-46050

NCZ2#

YAZAKI,S PACKAGE

 1
83800-46051

NCZ2#

YAZAKI,C PACKAGE

 1
83800-46052

NCZ2#

YAZAKI,C PACKAGE

 1
83800-46051

NCZ2#

YAZAKI,G PACKAGE

 1
83800-46050

NCZ2#

YAZAKI,C PACKAGE

 1
83800-46052

NCZ2#

YAZAKI,S PACKAGE

 1
83800-46051

NCZ2#

YAZAKI,S PACKAGE

 1
83800-46052

NCZ2#

YAZAKI,G PACKAGE

 1
83800-46062

NCZ2#

YAZAKI

 1
83800-46061

NCZ2#

YAZAKI

 1
83800-46110

NCZ2#

YAZAKI

 1
83800-46120

NCZ2#

YAZAKI

 1
83800-46060

NCZ2#

YAZAKI

 1
83800-46090

NCZ2#

YAZAKI,S PACKAGE

 1
83800-46090

NCZ2#

YAZAKI,G PACKAGE

 1
83800-46100

NCZ2#

YAZAKI

 1
83800-46090

NCZ2#

YAZAKI,C PACKAGE

 1
83800-46110

NCZ20

YAZAKI,VSC−有り

 1
83134 - COVER, COMBINATION METER, NO.1
83821-46050

NCZ2#

S PACKAGE

 1
83821-46050

NCZ2#

G PACKAGE

 1
83821-46060

NCZ2#

 1
83821-46050

NCZ2#

 1
83821-46050

NCZ2#

C PACKAGE

 1
83134B - COVER, COMBINATION METER, NO.2
83822-46050

NCZ2#

 1
83138G - GLASS, COMBINATION METER
83852-46050

NCZ2#

 1
Common parts
90467-10203
93540-13010
93568-55018

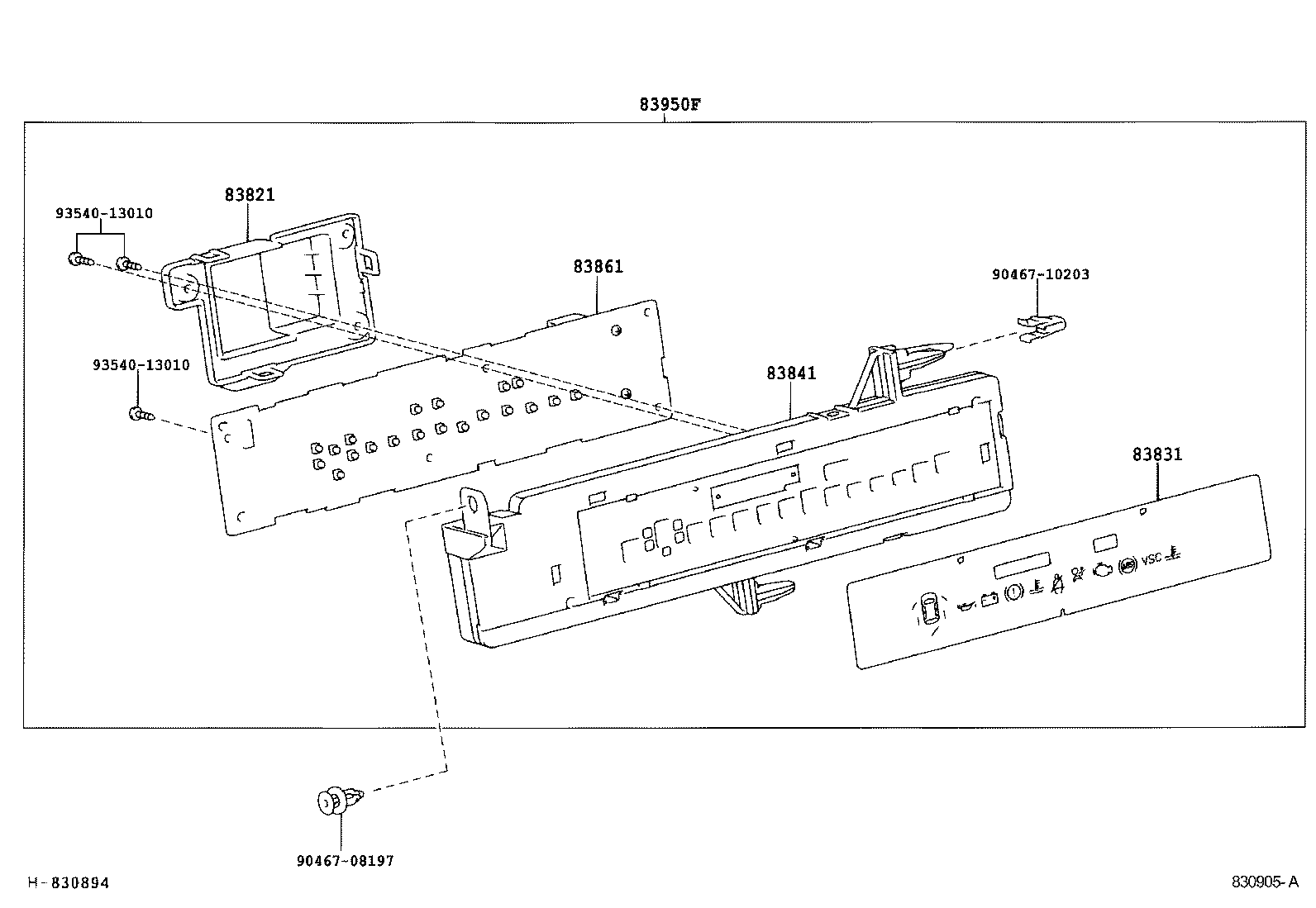

ILLUST NO. 2 OF 3(0304- )

Click highlighted areas on diagram

ﾃﾙﾃ-ﾙﾗﾝﾌﾟ

diagram 83821 83831 83841 83861 83950F 9046708197 9046710203 9354013010 9354013010
Part # Description Qty Price
83821 - COVER, TELLTALE LAMP
83826-46010

NCZ2#

 1
83831 - LENS, TELLTALE LAMP
83831-46010

NCZ2#

 1
83831-46020

NCZ2#

 1
83841 - CASE, TELLTALE LAMP
83958-46010

NCZ2#

 1
83861 - PLATE, TELLTALE LAMP
83959-46020

NCZ20

VSC−有り

 1
83959-46030

NCZ2#

 1
83959-46020

NCZ2#

 1
83959-46010

NCZ2#

 1
83950F - LAMP ASSY, TELLTALE
83950-46020

NCZ20

VSC−有り

 1
83950-46010

NCZ2#

 1
83950-46030

NCZ2#

 1
83950-46020

NCZ2#

 1
Common parts
90467-08197
90467-10203
93540-13010
