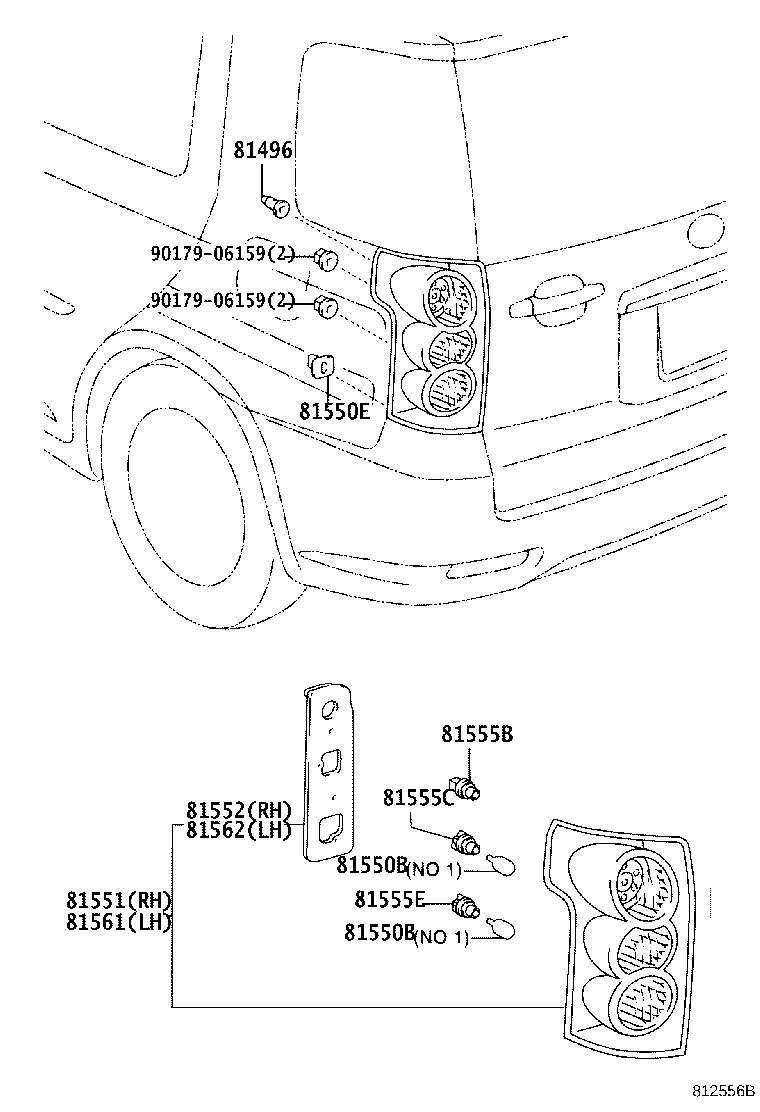

NCZ20-AHPXK (2003)
Toyota Raum
(0304-0612)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-44030 |
NCZ2# |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550E - CLIP(FOR REAR COMBINATION LAMP) | ||||
| 90467-09077 |
NCZ2# |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-46030 |
NCZ2# |
1 | ||
| 81551-46040 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ) |
1 | ||
| 81551-46050 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46030 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46050 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46080 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ) |
1 | ||
| 81551-46090 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46070 |
NCZ2# |
1 | ||
| 81551-46090 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46040 |
NCZ2# C PACKAGE&寒冷地仕様&NEO EDITION *(A)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46050 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46090 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46110 |
NCZ2# |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-46110 |
NCZ2# |
1 | ||
| 81552-46030 |
NCZ2# |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60017 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,左側 |
1 | ||
| 90075-60017 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90075-60017 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,左側 |
1 | ||
| 90075-60018 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),右側 |
1 | ||
| 90075-60017 |
NCZ2# |
2 | ||
| 90075-60017 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),左側 |
1 | ||
| 90075-60018 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,右側 |
1 | ||
| 90075-60018 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,右側 |
1 | ||
| 90075-60018 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,右側 |
1 | ||
| 90075-60017 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,左側 |
1 | ||
| 81555C - SOCKET PLUG, NO.2 | ||||
| 90075-60015 |
NCZ2# |
2 | ||
| 81555E - SOCKET PLUG, NO.3 | ||||
| 90075-60044 |
NCZ2# |
2 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-46030 |
NCZ2# |
1 | ||
| 81561-46040 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# C PACKAGE&寒冷地仕様&NEO EDITION *(A)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46050 |
NCZ2# |
1 | ||
| 81561-46060 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46090 |
NCZ2# |
1 | ||
| 81561-46060 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-46030 |
NCZ2# |
1 | ||
| 81552-46110 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||

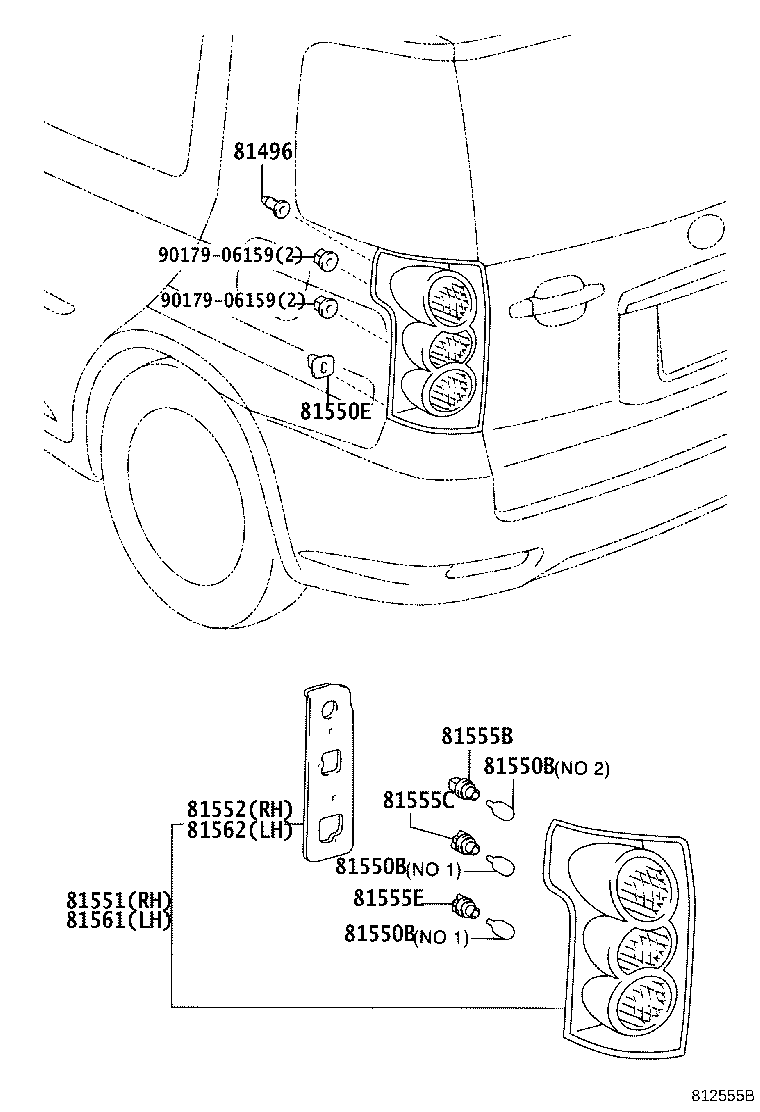

(0304-0612)
ﾃ-ﾙ & ｽﾄﾂﾌﾟ = LEDｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-44030 |
NCZ2# |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550E - CLIP(FOR REAR COMBINATION LAMP) | ||||
| 90467-09077 |
NCZ2# |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-46030 |
NCZ2# |
1 | ||
| 81551-46040 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ) |
1 | ||
| 81551-46050 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46030 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46050 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46080 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ) |
1 | ||
| 81551-46090 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46070 |
NCZ2# |
1 | ||
| 81551-46090 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46040 |
NCZ2# C PACKAGE&寒冷地仕様&NEO EDITION *(A)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46050 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46090 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46110 |
NCZ2# |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-46110 |
NCZ2# |
1 | ||
| 81552-46030 |
NCZ2# |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60017 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,左側 |
1 | ||
| 90075-60017 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90075-60017 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,左側 |
1 | ||
| 90075-60018 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),右側 |
1 | ||
| 90075-60017 |
NCZ2# |
2 | ||
| 90075-60017 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),左側 |
1 | ||
| 90075-60018 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,右側 |
1 | ||
| 90075-60018 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,右側 |
1 | ||
| 90075-60018 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,右側 |
1 | ||
| 90075-60017 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,左側 |
1 | ||
| 81555C - SOCKET PLUG, NO.2 | ||||
| 90075-60015 |
NCZ2# |
2 | ||
| 81555E - SOCKET PLUG, NO.3 | ||||
| 90075-60044 |
NCZ2# |
2 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-46030 |
NCZ2# |
1 | ||
| 81561-46040 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# C PACKAGE&寒冷地仕様&NEO EDITION *(A)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46050 |
NCZ2# |
1 | ||
| 81561-46060 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46090 |
NCZ2# |
1 | ||
| 81561-46060 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-46030 |
NCZ2# |
1 | ||
| 81552-46110 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||
(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-44030 |
NCZ2# |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
NCZ2# 12V 21/5W,NO.2 |
2 | ||
| 90981-11059 |
NCZ2# 12V 16W,NO.2 |
2 | ||
| 90981-15021 |
NCZ2# 12V 21W,ｱﾝﾊﾞｰ,NO.1 |
2 | ||
| 90981-13043 |
NCZ2# 12V 21W,NO.1 |
4 | ||
| 81550E - CLIP(FOR REAR COMBINATION LAMP) | ||||
| 90467-09077 |
NCZ2# |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-46030 |
NCZ2# |
1 | ||
| 81551-46040 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ) |
1 | ||
| 81551-46050 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46030 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46060 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46050 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46080 |
NCZ2# 寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ) |
1 | ||
| 81551-46090 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46070 |
NCZ2# |
1 | ||
| 81551-46090 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46040 |
NCZ2# C PACKAGE&寒冷地仕様&NEO EDITION *(A)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46100 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46050 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46090 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81551-46110 |
NCZ2# |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-46110 |
NCZ2# |
1 | ||
| 81552-46030 |
NCZ2# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-46110 |
NCZ2# |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-46040 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# |
1 | ||
| 81561-46040 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# C PACKAGE&寒冷地仕様&NEO EDITION *(A)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# C PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46030 |
NCZ2# C PACKAGE&NEO EDITION *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46050 |
NCZ2# |
1 | ||
| 81561-46060 |
NCZ2# S PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# G PACKAGE&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46090 |
NCZ2# |
1 | ||
| 81561-46060 |
NCZ2# G PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46040 |
NCZ2# S PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81561-46060 |
NCZ2# C PACKAGE&寒冷地仕様&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-46030 |
NCZ2# |
1 | ||
| 81552-46110 |
NCZ2# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-46110 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
