NCZ20-AHPXK (2003)
Toyota Raum

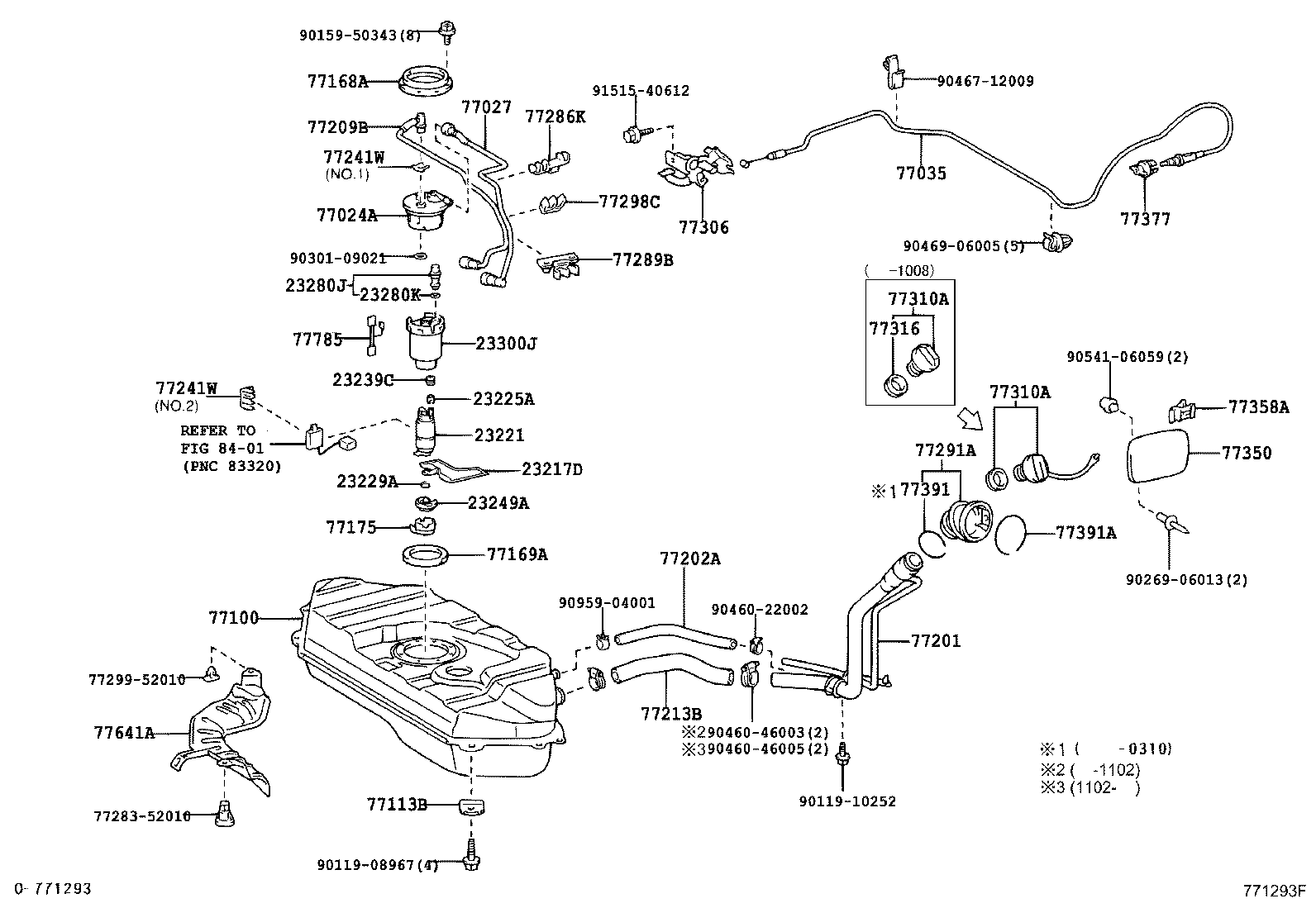

ILLUST NO. 1 OF 2(0304- )NCZ20
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-23010 |
1NZFE..NCZ20 |
1 | ||
| 23217-0D090 |
1NZFE..NCZ20 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-22030 |
1NZFE..NCZ20 |
1 | ||
| 23221-22140 |
1NZFE..NCZ20 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1NZFE..NCZ20 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFE..NCZ2# |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1NZFE..NCZ20 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1NZFE..NCZ20 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1NZFE..NCZ20 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1NZFE..NCZ2# |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-23040 |
1NZFE..NCZ20 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52020 |
NCZ20 |
1 | ||
| 77024-52020 |
NCZ20 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-52020 |
NCZ20 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-46030 |
NCZ2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-46031 |
NCZ20 |
1 | ||
| 77001-46030 |
NCZ20 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-52010 |
NCZ20 |
4 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
NCZ20 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
NCZ20 |
1 | ||
| 77169-33020 |
NCZ20 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
NCZ20 |
1 | ||
| 77175-52020 |
NCZ20 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-46080 |
NCZ20 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77269-52020 |
NCZ20 長さ=360 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-52020 |
NCZ20 |
1 | ||
| 77209-52020 |
NCZ20 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52010 |
NCZ20 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NCZ20 NO.1 |
1 | ||
| 77241-32060 |
NCZ20 NO.1 |
1 | ||
| 77241-52010 |
NCZ20 NO.2 |
1 | ||
| 77241-52010 |
NCZ20 NO.2 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NCZ20 NO.1 |
1 | ||
| 77241-32060 |
NCZ20 NO.1 |
1 | ||
| 77241-52010 |
NCZ20 NO.2 |
1 | ||
| 77241-52010 |
NCZ20 NO.2 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52020 |
NCZ20 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NCZ2# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-46020 |
NCZ2# |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52020 |
NCZ20 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
NCZ2# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
NCZ2# |
1 | ||
| 77300-52030 |
NCZ2# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
NCZ2# |
1 | ||
| 77300-52030 |
NCZ2# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NCZ2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-46020 |
NCZ2# |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
NCZ2# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
NCZ2# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCZ2# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-46010 |
NCZ2# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77631-52010 |
NCZ20 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
NCZ20 |
1 | ||
| 77785-32010 |
NCZ20 |
1 | ||
| Common parts | ||||
| 77283-52010 | ||||
| 77299-52010 | ||||
| 90119-08967 | ||||
| 90119-10252 | ||||
| 90159-50343 | ||||
| 90269-06013 | ||||
| 90301-09021 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-46005 | ||||
| 90467-12009 | ||||
| 90469-06005 | ||||
| 90541-06059 | ||||
| 90959-04001 | ||||
| 91515-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

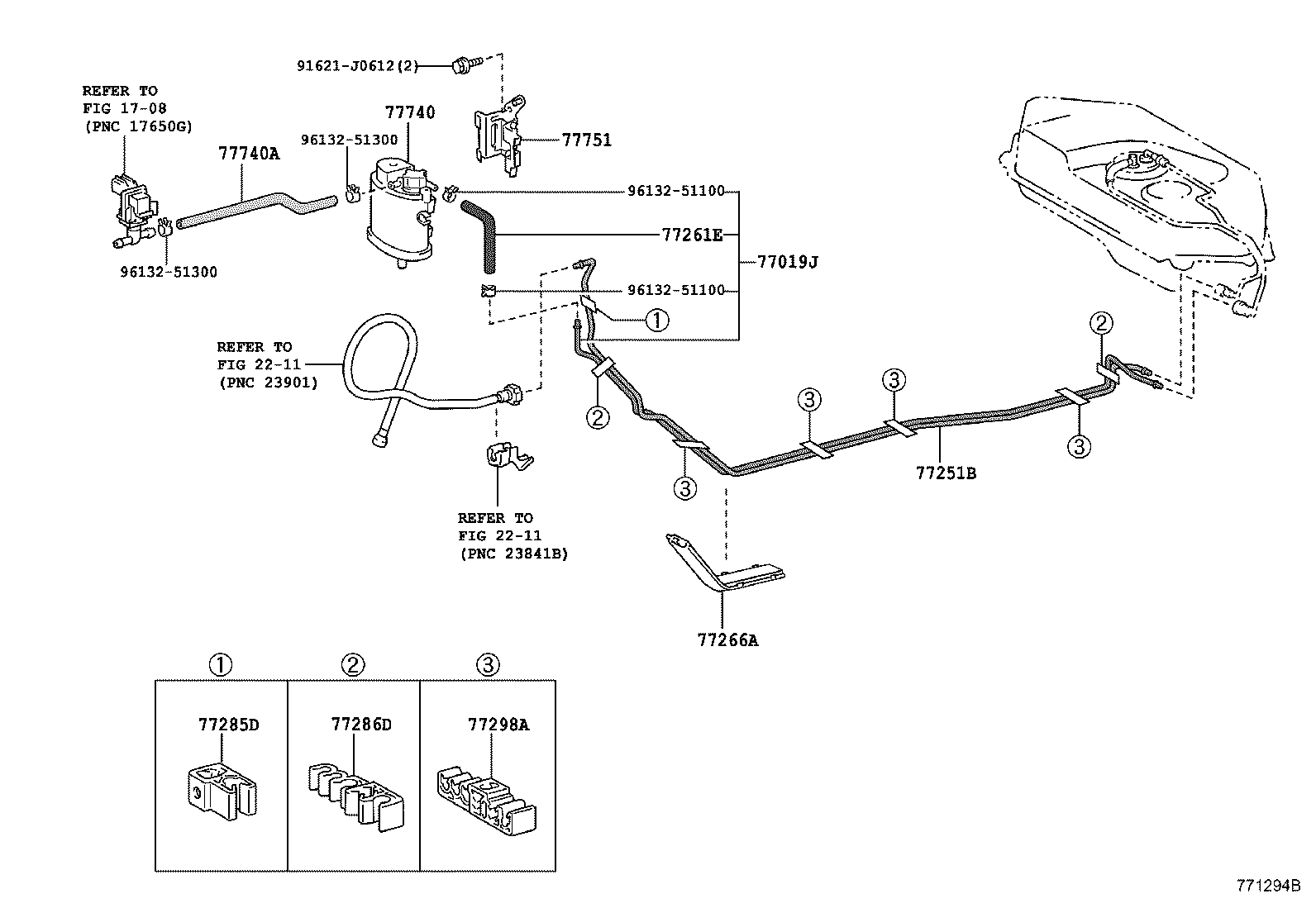

ILLUST NO. 2 OF 2(0304- )NCZ20
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-52070 |
NCZ20 VSC−有り |
1 | ||
| 77019-52030 |
NCZ20 |
1 | ||
| 77019-52070 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 77019-52070 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52160 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 77251-52051 |
NCZ20 |
1 | ||
| 77251-52160 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 77251-52160 |
NCZ20 VSC−有り |
1 | ||
| 77251-52061 |
NCZ20 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06020 |
NCZ20 *H,L=120,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 95337-06020 |
NCZ20 *H,L=120,VSC−有り |
1 | ||
| 95337-06020 |
NCZ2# *H,L=120 |
1 | ||
| 95337-06020 |
NCZ20 *H,L=120,VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52010 |
NCZ2# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52010 |
NCZ2# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52010 |
NCZ2# |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52010 |
NCZ2# |
4 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52041 |
NCZ2# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23827-21010 |
NCZ2# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-52020 |
NCZ2# |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
