NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

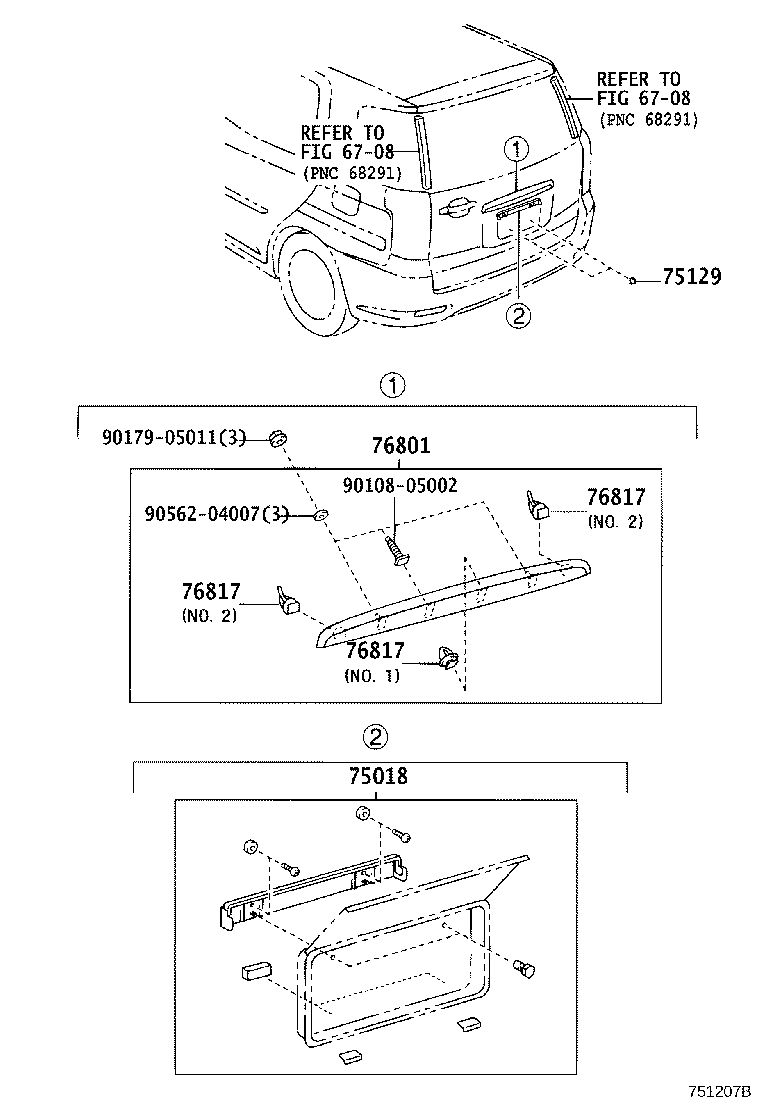

Click highlighted areas on diagram

diagram 6708 6708 75018 75129 76801 76817 76817 76817 9010805002 9017905011 9056204007
Part # Description Qty Price
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-48020

NCZ2#

ﾗｲｾﾝｽ ﾌﾟﾚｰﾄ ﾌﾞﾗｹｯﾄ−字光式ﾌﾞﾗｹｯﾄ対応&ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 1
75010-48020

NCZ2#

ﾗｲｾﾝｽ ﾌﾟﾚｰﾄ ﾌﾞﾗｹｯﾄ−字光式ﾌﾞﾗｹｯﾄ対応&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
75129 - CUSHION, REAR LICENSE PLATE
75129-28020

NCZ2#

ﾊﾞｯｸ ﾓﾆﾀｰ

 2
75129-28020

NCZ2#

 2
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-46040

NCZ2#

ﾒｯｷ,ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽeｰｼｮﾝ

 1
76801-46030

NCZ2#

ﾊﾞｯｸ ﾓﾆﾀｰ

 1
76801-46040

NCZ2#

ﾒｯｷ,ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 1
76801-46030

NCZ2#

ﾒｯｷ

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

NCZ2#

NO.1

 1
76817-44020

NCZ2#

NO.2

 2
76817-12050

NCZ2#

ﾊﾞｯｸ ﾓﾆﾀｰ,NO.1

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

NCZ2#

NO.1

 1
76817-44020

NCZ2#

NO.2

 2
76817-12050

NCZ2#

ﾊﾞｯｸ ﾓﾆﾀｰ,NO.1

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

NCZ2#

NO.1

 1
76817-44020

NCZ2#

NO.2

 2
76817-12050

NCZ2#

ﾊﾞｯｸ ﾓﾆﾀｰ,NO.1

 1
Common parts
90108-05002
90179-05011
90562-04007
Linked diagrams
6708
