NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

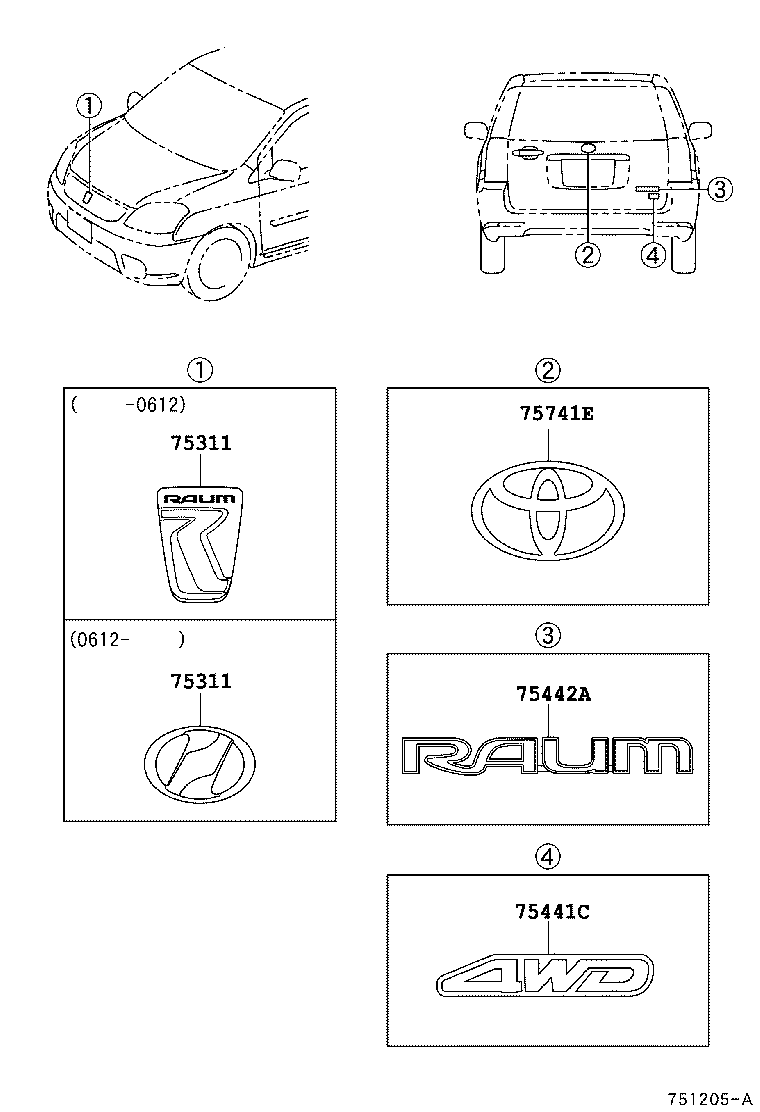

Click highlighted areas on diagram

diagram 75311 75311 75441C 75442A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-46040

NCZ2#

 1
75311-B1040

NCZ2#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-46040

NCZ2#

 1
75311-B1040

NCZ2#

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-46020

NCZ2#

RAUM

 1
75741E - EMBLEM, SYMBOL
90975-02008

NCZ2#

 1
